Profile : Standard Rotary Shaft Seals


Spareage : R12

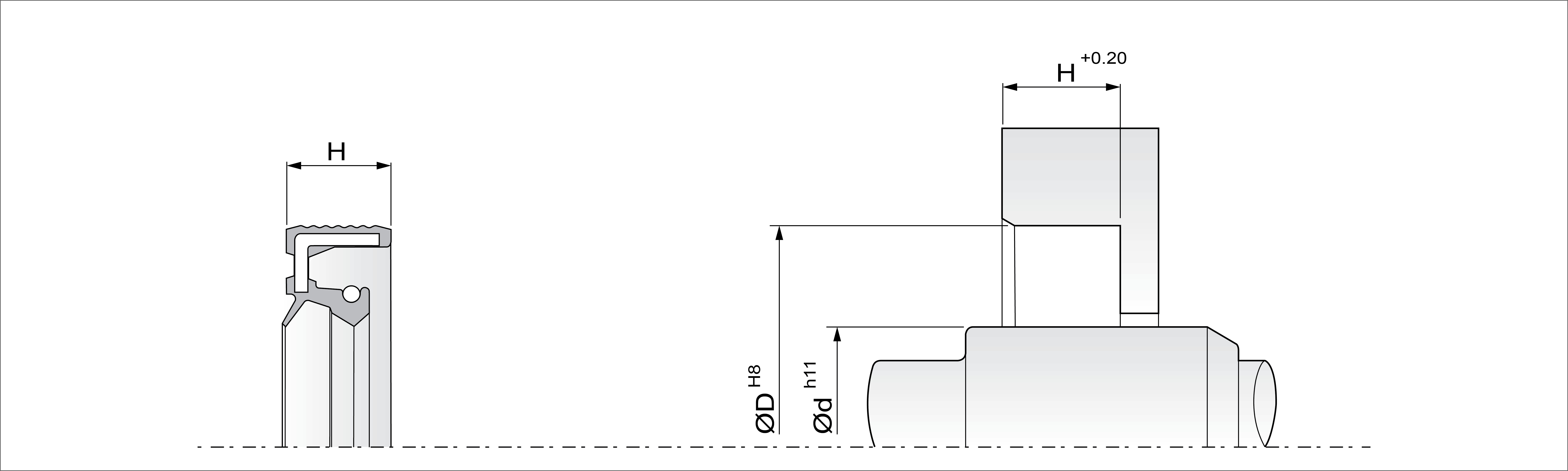

R12 Assembly

Details :


Manufactured by: Max Spare Limited
Product ID: /details?id=465&name=r12


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
R1  10.00NBR     SC-2584
R12010080310.0019.007.00NBR     SB-8695
R12010640110.0020.007.00FKM     SB-6423
R12010080210.0020.704/9.00NBR     SB-7134
R12010080110.0022.007NBR     SB-4611
R12011080111.0022.007NBR     SB-6247
R12012640212.0019.005.00FKM     SB-6998
R12012080212.0020.005.00/7.00NBR     SB-7265
R12012080312.0022.005.00NBR     SB-8130
R12012D50112.0022.006HNBR     SB-6266
R12012640312.0022.007.00FKM     SB-8129
R12012640412.0024.006.00FKM     SB-8241
R12012640512.0025.0010.00FKM     SB-8466
R12012080412.0025.007.00NBR     SB-8134
R12012640112.0026.007.00FKM     SB-6519
R12012640612.0028.007.00FKM     SB-8646
R12014640114.0028.007.00FKM     SB-6517
R12014080214.0030.0010NBR     SB-6162
R12014080314.0030.007.00NBR     SB-7219
R12014080414.0030.007.00NBR     SB-7684
R12014080114.0035.007NBR     SB-5006
R12015080415.0024.007.00NBR     SB-1545
R12015640415.0025.005FKM     SB-1458
R12015660115.0026.006.00FKM     SB-9093
R12015660215.0026.007.00FKM     SB-9094
R12015Q70115.0028.007NBR     SB-3705
R12015080515.0030.0010.00NBR     SB-2792
R12015080215.0030.007.00NBR     SB-7238
R12015080315.0035.007.00NBR     SB-8091
R12016080216.0030.0010NBR     SB-6161
R12016080316.0030.006/7NBR     SB-6396
R12016080416.0030.007.00NBR     SB-2794
R12017080317.0029.005.00NBR     SB-7930
R12017640617.0030.007.00FKM     SB-9149
R12017640717.0035.008.00FKM     SB-872
R12017080417.0037.007.00NBR/PTFE     SB-208
R12017080217.0040.007.00NBR     SB-7655
R12017640517.4630.006FKM     SB-4229
R12018080618.0028.007.00NBR     SB-7685
R12018080418.0028.008NBR     SB-6241
R12018080318.0030.0010NBR     SB-6163
R12018080518.0030.005NBR     SB-6395
R12018080718.0030.008.00NBR     SB-9379
R12018080218.0032.007NBR     SB-5592
R12019080219.0030.005/6NBR     SB-6397
R12019080119.0032.007NBR     SB-5763
R12019080519.0035.007.00NBR     SB-9397
R12019080619.0035.009.00NBR     SB-9424
R12019080419.0038.0010.00NBR     SB-7571
R12019080319.0534.604.40/5.90NBR     SB-6394
R12019D50119.5030.005.00/6.00HNBR     SB-7348
R12020080920.0030.005.00NBR     SB-456
R12020080120.0030.007/8NBR     SB-3766
R12020640720.0032.007.00FKM     SB-2701
R12020080620.0034.007.00NBR     SB-8343
R12020640620.0038.007.00FKM     SB-2608
R12020080520.0039.706.35NBR     SB-6392
R12020080720.0040.007.00NBR     SB-8763
R12020080820.0040.007.00NBR     SB-9025
R12022080222.0032.007.00NBR     SB-7354
R12022Q70122.0035.007NBR     SB-3149
R12022640222.0040.007FKM     SB-4621
R12022080522.0040.007.00NBR     SB-6927
R12022640522.0042.007FKM     SB-4968
R12022640622.0047.007.00FKM     SB-8198
R12024080324.0033.005/5.50NBR     SB-6393
R12024080424.0035.006.00NBR     SB-8230
R12024640124.0040.007FKM     SB-4965
R12024640224.0040.008FKM     SB-5441
R12025640825.0035.006.00FKM     SB-2816
R12025660125.0035.006.00/6.80FKM     SB-7756
R12025640425.0035.007FKM     SB-3150
R12025081825.0035.007.00NBR     SB-2793
R12025081325.0036.005.00NBR     SB-8870
R12025080725.0036.005/5.50NBR     SB-6648
R12025086325.0037.005NBR     SB-533
R12025640625.0038.007.00FKM     SB-9150
R12025081725.0038.008.00NBR     SB-2791
R12025080925.0040.007.00NBR     SB-6925
R12025081525.0040.008.00NBR     SB-9389
R12025Q70225.0042.006NBR     SB-3200
R12025080425.0047.007NBR     SB-4151
R12025080825.0052.0010.00NBR     SC-5858
R12025081225.0052.007.00NBR     SC-7508
R12025640725.0052.008.00FKM     SC-7916
R12025081925.4038.076.35NBR     SB-2795
R12026080126.0037.007/8NBR     SB-3791
R12028080228.0037.005NBR     SB-6257
R12028640328.0038.007.00FKM     SB-8618
R12028080128.0040.008NBR     SB-3984
R12028640228.0045.008FKM     SB-6343
R12028640428.0047.0010.00FKM     SB-2540
R12028080328.0047.007.00NBR     SB-2796
R12029640129.0050.0010.00FKM     SB-2175
R12030641030.0040.007.00FKM     SB-7727
R12030080630.0042.005.70NBR     SB-5074
R12030081130.0042.006.00NBR     SB-8585
R12030640830.0042.007FKM     SB-4365
R12030080830.0042.007.00NBR     SB-7246
R12030080330.0042.008NBR     SB-4694
R12030640630.0045.007FKM     SB-4969
R12030660130.0047.005.60/7.80FKM     SB-7474
R12030641230.0047.006.00FKM     SB-1313
R12030080930.0050.0010.00NBR     SB-6744
R12030641130.0052.007.00FKM     SC-7163
R12030080730.0052.008NBR     SC-5091
R12030081030.0054.0010.00NBR     SC-7005
R12030080530.0055.007FKM     SC-4001
R12030640930.0062.0010FKM     SC-4701
R12031080131.9057.208.00NBR     SC-7145
R12032080132.0042.007NBR     SB-3926
R12032100132.0042.007.00NBR     SB-8123
R12032080332.0045.007NBR     SB-4282
R12032080532.0052.0010.00NBR     SC-5117
R12033080133.0045.007.00NBR     SB-6886
R12033080233.0055.107.00NBR     SC-6856
R12034080234.0044.008.00NBR     SB-1994
R12034640134.0048.0010.00/12.00FKM     SB-6353
R12034080134.7447.009.00NBR     SB-8918
R12035640535.0047.007.00FKM     SB-3859
R12035080935.0047.007.00NBR     SB-8596
R12035080235.0047.008NBR     SB-3387
R12035640835.0048.007.00FKM     SB-3647
R12035640735.0050.0010.00FKM     SB-9084
R1235.0050.007/7FKM     SB-8759
R12035Q70135.0052.007NBR     SC-2828
R12035641135.0052.008.00FKM     SC-2666
R12035081035.0055.007.00NBR     SC-2361
R12035081135.0058.008.00NBR     SC-2494
R12035080635.0062.0012NBR     SC-5323
R12035080535.0062.007NBR     SC-5290
R12035R40135.0062.007.00NBR     SC-7269
R12035080735.0062.008.00NBR     SC-6644
R12035080835.0062.008.00NBR     SC-6834
R12035660435.0063.008.00FKM     SC-7977
R12035100135.0072.0010NBR     SC-5400
R12036640136.0052.007FKM     SC-4000
R12036640236.0052.007.00FKM     SC-6045
R12036630136.0052.007.00FKM     SC-6247
R12036640336.0052.007.00FKM     SC-6417
R12039640139.0057.009.00FKM     SC-7902
R12040080840.0052.006NBR     SC-4016
R12040Q70140.0052.007NBR     SC-2829
R12040640140.0055.007FKM     SC-4274
R12040082340.0055.008.00NBR     SC-7917
R12040641240.0056.008.00FKM     SC-2220
R12040641340.0058.0010.00FKM     SC-2287
R12040082240.0058.008.00NBR     SC-7479
R12040082440.0060.0010.00NBR     SC-3667
R12040081540.0060.0010.00NBR     SC-5753
R12040080140.0062.0010NBR     SC-2966
R12040081740.0062.0012.00NBR     SC-6381
R12040640440.0062.007FKM     SC-3561
R12040080940.0062.007NBR     SC-4033
R12040080440.0062.008.00NBR     SC-1670
R12040640840.0062.008.00FKM     SC-7756
R12040081340.0065.0010NBR     SC-5588
R12040082140.0065.0010.00NBR     SC-7135
R12040081140.0068.0010NBR     SC-4933
R12040081840.0068.007.00NBR     SC-6669
R12040081440.0068.008.00NBR     SC-5734
R12040100440.0072.0010.00NBR     SC-7004
R12040082040.0072.007NBR     SC-3037
R12040082540.0080.0010.00NBR     SD-1489
R12040081040.0080.0012NBR     SD-3288
R12040081240.0080.0013NBR     SD-3688
R12040081940.0090.0010.00NBR     SD-4706
R12042640242.0053.007.00FKM     SC-7232
R12042080642.0055.007.00NBR     SC-6832
R12042640342.0056.007.00FKM     SC-7967
R12042640142.0062.008FKM     SC-2785
R12043080143.0080.0010.00NBR     SD-1683
R12043D50143.0085.008.00HNBR     SD-4864
R12044080344.4563.508NBR     SC-3657
R12045080545.0060.008.00NBR     SC-5805
R12045081045.0062.0012NBR     SC-5200
R12045080145.0062.008NBR     SC-3023
R12045081345.0065.0010.00NBR     SC-2527
R12045641045.0065.0010.00FKM     SC-2532
R12045080945.0065.007NBR     SC-5092
R12045640645.0065.008FKM     SC-4002
R12045R40145.0065.008.00NBR     SC-7267
R12045640945.0068.0010.00FKM     SC-2497
R12045081245.0072.0012.00NBR     SC-6382
R12045081145.0072.008.00NBR     SC-3563
R12045100145.0085.0010.00NBR     SD-4823
R12045Q70245.0085.0013NBR     SD-2366
R12047080147.0090.0010NBR     SD-3324
R12048640148.0062.0010.00FKM     SC-7236
R12048080148.0062.008.00NBR     SC-6990
R12048640248.0065.008.00FKM     SC-7493
R12048080348.0068.0010NBR     SC-4934
R12050Q70350.0060.008NBR     SC-3641
R12050430150.0062.007.00SILICON     SC-5871
R12050081350.0065.0010.00NBR     SC-4887
R12050430250.0065.0010.00SILICON     SC-6515
R12050640150.0065.008FKM     SC-3559
R12050081950.0068.0010.00NBR     SC-612
R12050641050.0068.0010.00FKM     SC-7918
R12050081850.0068.008.00NBR     SC-7969
R120500801450.0070.0010.00NBR     SC-6216
R12050080650.0070.008NBR     SC-3819
R12050Q70150.0072.0010NBR     SC-2831
R12050080550.0072.007NBR     SC-4936
R12050660250.0072.008.00FKM     SC-6416
R12050640750.0080.0010FKM     SD-3242
R12050T90150.0080.0010.00FKM     SD-4689
R12050650150.0080.008FKM     SD-3415
R12050100250.0090.0010.0NBR     SD-4822
R12050641250.00110.0010.00FKM     SE-344
R12050081750.00125.0010.00NBR     SE-2861
R12052080152.0065.008.00NBR     SC-6461
R12052080252.0072.0010.00NBR     SC-675
R12052640252.0072.008.00FKM     SC-7657
R12052640152.0085.0010.00FKM     SD-4705
R12054080154.0090.009.00NBR     SD-4934
R12055081055.0070.008.00NBR     SC-6592
R12055080855.0070.008.50NBR     SC-4440
R12055080455.0072.0010NBR     SC-3835
R12055080655.0072.008.00NBR     SC-3944
R12055660155.0072.008.00FKM     SC-6407
R12055081355.0075.0015.00NBR     SC-1862
R12055640455.0078.0012.00FKM     SD-5491
R12055660355.0080.0010.00FKM     SD-1833
R12055081255.0080.0010.00NBR     SD-4988
R12055080355.0080.008NBR     SD-2582
R12055660455.0080.008.00FKM     SD-1834
R12055660255.0080.008.00FKM     SD-4389
R12055640255.00100.008.00FKM     SD-3907
R12056080256.0072.008.00NBR     SC-375
R12056080156.0076.0010NBR     SD-3765
R12058640158.0072.008FKM     SC-5187
R12058640258.0080.008.00FKM     SD-4651
R12060Q70560.0070.0010NBR     SC-3642
R12060640860.0072.008.00FKM     SC-7300
R12060640160.0075.008FKM     SC-3558
R12060Q70460.0080.0010NBR     SD-2365
R12060080460.0080.008NBR     SD-103
R12060081260.0080.008.00NBR     SD-1791
R12060430260.0080.009.00SILICON     SD-4466
R12060081160.0082.008.00NBR     SD-5095
R12060640960.0085.0010.00FKM     SD-1844
R12060O30160.0085.008.00NBR     SD-4957
R12060080760.0090.0010.00NBR     SD-4027
R12060080860.0090.005.00NBR     SD-4607
R12060640760.0090.008.00FKM     SD-4977
R12060080560.0095.008NBR     SD-3359
R12060640560.00100.0010.00FKM     SD-4567
R12060081060.00110.0012.00NBR     SE-2762
R12060640460.00110.006.00FKM     SE-2487
R12060081360.00110.008.00NBR     SE-468
R12060430160.5093.0012SILICON     SD-3695
R12062080262.0085.0010.00NBR     SD-407
R12062640362.0085.008.00FKM     SD-1890
R12062080162.0090.0010.00NBR     SD-5502
R12063640163.0085.0010.00FKM     SD-5366
R12063080263.5085.729.52NBR     SD-4928
R12064640164.0080.008.00FKM     SD-4468
R12065080665.0080.008NBR     SD-3289
R12065640265.0085.0010FKM     SD-2298
R12065Q70165.0090.0010NBR     SD-1885
R12065080765.0090.008.00NBR     SD-4316
R12065640965.0095.0010.00FKM     SD-5289
R12065080865.00100.0010.00NBR     SD-4431
R12068640168.00100.0010.00FKM     SD-1638
R12070080570.0085.008.00NBR     SD-4096
R12070660170.0090.0010.00FKM     SD-2470
R12070640170.0090.0012FKM     SD-1669
R12070080670.0090.007.00NBR     SD-4428
R12070080470.0090.008NBR     SD-2574
R12070640570.0095.0010.00FKM     SD-4469
R12070640670.00100.0010.00FKM     SD-4648
R12070081170.00100.0012.00NBR     SD-1813
R12070640470.00110.0012.00FKM     SE-2274
R12070080770.00125.0012.00NBR     SE-2758
R12072080472.0085.008.00NBR     SD-1878
R12072080372.0095.0010.00NBR     SD-1841
R12072080272.00100.0010NBR     SD-3729
R12073080173.0095.309.00NBR     SD-4941
R12075640375.0085.0010FKM     SD-3268
R12075080975.0090.0010.00NBR     SD-1578
R12075080175.0095.0010NBR     SD-1860
R12075080475.0095.0012FKM     SD-2272
R12075081075.0095.0013.00NBR     SD-1640
R12075080375.00100.0010NBR     SD-2813
R12075080575.00100.0010.00NBR     SD-4943
R12075Q70175.00100.0012NBR     SD-2367
R12075080675.00110.0012.00NBR     SE-2909
R12075640475.00115.0012FKM     SE-2021
R12075080875.00125.0010.00NBR     SE-359
R12075080775.00130.0012.00NBR     SF-2716
R12078430178.9695.5011.12SILICON     SD-5171
R12080Q70180.00100.0010NBR     SD-1887
R12080080880.00100.0012.00NBR     SD-5249
R12080081080.00100.007.00NBR     SD-1780
R12080080380.00110.0010.00NBR     SE-464
R12080080780.00110.0012.00NBR     SE-2648
R12080080580.00120.0012.00NBR     SE-2313
R12080080980.00120.0013.00NBR     SE-2961
R12080640280.00140.0010.00/13.00FKM     SF-2656
R12082640182.00110.0010.00FKM     SE-2394
R12085640185.00100.008FKM     SD-1880
R12085640585.00100.009.00FKM     SD-725
R12085080285.00105.0012NBR     SE-2032
R12085080485.00105.006.00NBR     SE-2466
R12085080385.00110.0012NBR     SE-1404
R12085080185.00110.008NBR     SE-1907
R12085640385.00115.0010.00FKM     SE-2393
R12085080585.00120.0012.00NBR     SE-2589
R12085100185.00130.0010.00NBR     SF-2599
R12085080685.00150.0012.00NBR     SF-2440
R12089640189.00120.0012.00FKM     SE-2869
R12090080490.00110.0010.00NBR     SE-3001
R12090Q70190.00110.0012NBR     SE-1143
R12090640290.00115.0013.00FKM     SE-2279
R12090080390.00120.0012.00NBR     SE-2222
R12090640390.00125.0013.00FKM     SE-2571
R12092640192.00120.0012.00FKM     SE-2794
R12095080895.00115.0015.00NBR     SE-387
R12095080495.00120.0012NBR     SE-1899
R12095080395.00125.0012NBR     SE-1791
R12095080695.00125.0013.00NBR     SE-3076
R12095080595.00145.0010.00/13.00NBR     SF-2550
R12095080795.00160.0012.00NBR     SG-156
R12095640495.00160.0015.00FKM     SG-1955
R12095640395.00170.0013.00FKM     SG-1937
R12095Q70195.25127.0011NBR     SF-1032
R121006405100.00120.0010.00FKM     SE-2346
R121006404100.00120.0012FKM     SE-1462
R121000802100.00125.0010.00NBR     SE-2151
R121000805100.00125.0012.00NBR     SE-465
R121006401100.00130.0012FKM     SF-1105
R121006601100.00150.0013.00FKM     SF-2567
R12101Q701101.60127.0011NBR     SF-1033
R121040801104.00185.008.00NBR     SH-1248
R121050801105.00130.0012.00NBR     SF-969
R121056403105.00130.0013.00FKM     SF-2000
R121056401105.00140.0012FKM     SF-1017
R121050802105.00160.0013.00NBR     SG-1989
R121070801107.95127.0012.70NBR     SF-1646
R121086401108.00170.0015.00FKM     SG-240
R121100805110.00130.0010.00NBR     SF-2333
R121106402110.00130.0012.00FKM     SF-1049
R121106401110.00130.008.00FKM     SF-979
R121106403110.00140.0012FKM     SF-719
R121100803110.00180.5013NBR     SH-1119
R121156601115.00140.0012.00FKM     SF-1219
R121156602115.00140.0012.00FKM     SF-2642
R121150802115.00140.0013NBR     SF-1750
R121180801118.00150.0012.00NBR     SF-2198
R121200803120.00130.0012.00NBR     SF-2446
R121206402120.00140.0012FKM     SF-1706
R121200801120.00150.0012NBR     SF-1216
R121200804120.00150.0012.00NBR     SF-2745
R121200802120.00160.0012.00NBR     SG-1525
R121250803125.00145.009.50NBR     SF-2330
R121250801125.00150.0012NBR     SF-1597
R121250802125.00150.0013NBR     SF-1754
R121300805130.00150.0013.00NBR     SF-2549
R121306401130.00160.0012FKM     SG-712
R121300803130.00160.0015.00NBR     SG-1698
R121300802130.00170.0012NBR     SG-1306
R121300804130.00170.0015.00NBR     SG-1831
R121326401132.00175.007.00FKM     SG-183
R121350801135.00160.0012.00NBR     SG-1868
R121350802135.00170.0012.00NBR     SG-178
R121406405140.00160.0012.00FKM     SG-1890
R121406401140.00170.0015FKM     SG-653
R121406404140.00170.0016FKM     SG-1185
R121456403145.00175.0013.00FKM     SG-1900
R121456402145.00175.0015.00FKM     SG-1787
R121452001145.00180.0012NEOPRENE     SH-911
R121500803150.00180.0012.00NBR     SH-546
R121500802150.00180.0013.00NBR     SH-1472
R121506402150.00180.0015.00FKM     SH-767
R121556401155.00190.0013.00FKM     SH-1363
R121600802160.00190.0015NBR     SH-1035
R121626401162.00190.0012.00FKM     SH-1479
R121656401165.00190.0015.00FKM     SH-773
R121700801170.00200.0012.00NBR     SH-1410
R121706401170.00200.0015FKM     SH-934
R121756401175.00200.0015.00FKM     SH-1408
R121756402175.00205.0015.00FKM     SJ-1126
R121800803180.00190.0014.00NBR     SH-1497
R121806601180.00210.0015FKM     SJ-522
R121806401180.00210.0015FKM     SJ-573
R121800801180.00215.0015NBR     SJ-777
R121806402180.00220.0016.00FKM     SJ-953
R121856401185.00210.0013.00FKM     SJ-1103
R121900801190.00220.0012.00NBR     SJ-828
R121906402190.00220.0015.00FKM     SJ-381
R121906403190.00220.0018.00FKM     SJ-392
R121906401190.00230.0012.00FKM     SK-124
R121956401195.00220.0016FKM     SJ-702
R122000801200.00230.0015NBR     SK-509
R122000802200.00230.0016NBR     SK-766
R122106401210.00240.0015.00FKM     SK-817
R122150801215.00240.0012.00NBR     SK-1042
R122206401220.00250.0015FKM     SK-521
R122306401230.00260.0015.00FKM     SM-208
R122406401240.00270.0015.00FKM     SM-315
R122400801240.00270.0015.00NBR     SM-677
R122600802260.00290.0015.00NBR     SN-802
R122600803260.00300.0018.00NBR     SN-817
R122600801260.00300.0020NBR     SN-555
R122700801270.00310.0020.00NBR     SR-1500
R12270D501270.00330.0025.00HNBR     SR-401
R122800801280.00320.0020.00NBR     SR-1589
R123176401317.00341.0012.00FKM     SR-1615
R123200801320.00360.0020NBR     SR-968
R123406402340.00380.0016.00FKM     SS-872
R123600801360.00392.0020NBR     SS-1991
R123600802360.00400.0020.00NBR     SS-635
R123800801380.00420.0020.00NBR     SS-179
R124080801408.10439.0015NBR     SS-1467
R124406201440.00490.0022.00FKM     SS-2985
R124500801450.00500.0020NBR     SS-1990
R124806401480.00520.0020.00FKM     SS-682
R127106401710.00760.0020.00FKM     SS-2725




For customised items please Click here
Login
