Profile : High Pressure Rotary Seals


Spareage : R49

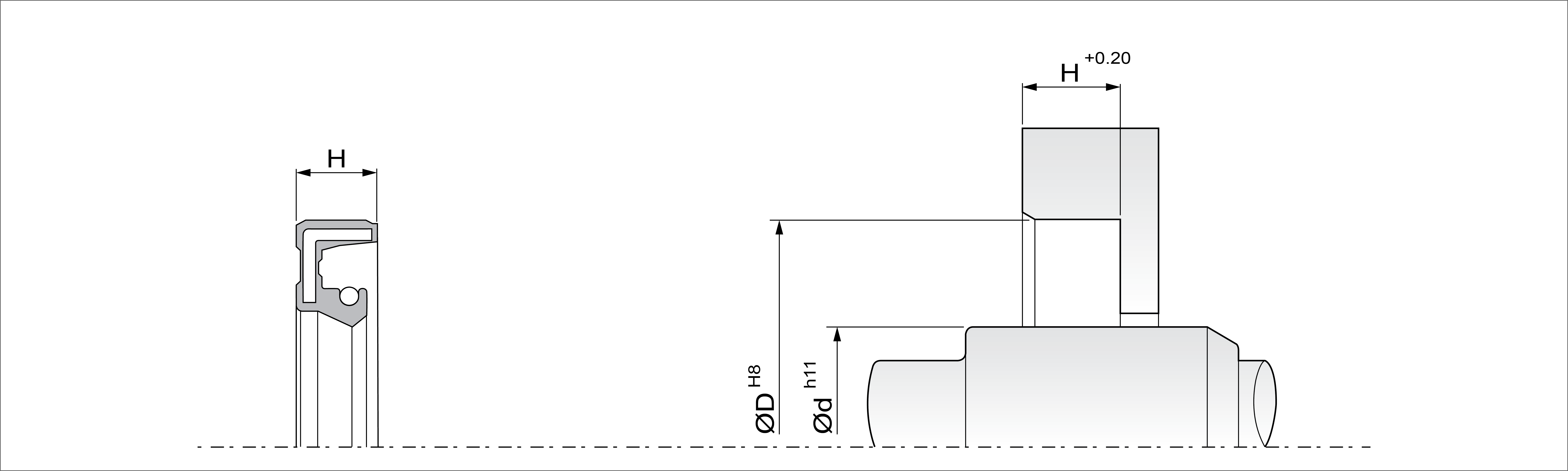

R49 Assembly

Details :


Manufactured by: Max Spare Limited
Product ID: /details?id=113&name=r49


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
R4900510015.5022.007NBR     SB-5177
R4900610016.0019.0010.00NBR     SB-7690
R4900666016.0019.006.00FKM     SB-8532
R4900666026.3519.056.35FKM     SB-9347
R4900810018.0022.006NBR     SB-6085
R4900810028.0022.007.00NBR     SB-6861
R4900910019.0019.007.00NBR     SB-6050
R49010340110.0018.006EPDM     SB-5369
R49010660110.0019.007FKM     SB-3499
R49010660310.0022.006.00FKM     SB-9201
R49011100111.0025.008NBR     SB-2778
R49011640111.6822.106.35FKM     SB-8397
R49011100311.8022.007.00NBR     SB-6459
R49012101112.0022.005.00NBR     SB-7100
R49012660412.0022.007FKM     SB-5034
R49012660512.0022.008.00FKM     SB-9185
R49012660112.0024.007FKM     SB-3429
R49012101212.0028.007.00NBR     SB-7469
R49012340112.7025.406.35EPDM     SB-8251
R49012101412.7025.407.00NBR     SB-9263
R49012101312.7028.577.87NBR     SB-7719
R49013660113.0022.007.00FKM     SB-7588
R49013100113.0027.008NBR     SB-5164
R49013100213.4527.008NBR     SB-176
R49014340114.0024.005NBR     SB-2302
R49014100414.0024.005.00NBR     SB-9126
R4901400314.0024.007.00NBR     SB-6626
R49014100214.0027.007NBR     SB-6478
R49014660314.0030.007FKM     SB-4442
R49015100715.0027.007.00NBR     SB-8652
R49015080115.0035.007.00NBR     SB-7618
R49015100615.0042.007.00NBR     SB-7589
R49015100515.8728.506.35NBR     SB-6267
R49016660416.0025.007.00FKM     SB-7479
R49016100616.0030.006NBR     SB-5878
R49016100116.0040.0012NBR     SB-2421
R49016640116.5131.756.35NBR     SB-8398
R49017100817.0025.004.00NBR     SB-148
R49017100717.0028.005.50NBR     SB-4171
R49017101017.0030.007.00NBR     SB-9007
R49017660617.0035.007FKM     SB-4260
R49017660917.0035.008.00FKM     SB-8640
R49018340118.0030.0010.00EPDM     SB-9127
R49018100318.0032.008.00NBR     SB-6695
R49018V20118.0035.005NBR     SB-5335
R49019100619.0029.007.70NBR     SB-7986
R49019100719.0030.007.00NBR     SB-8304
R49019100419.0031.605.50NBR     SB-6737
R49019100519.0032.007.00NBR     SB-6860
R49019100819.0538.109.52NBR     SB-9336
R49019660419.5030.004.00FKM     SB-8396
R49019660319.8044.458.00NBR     SB-8361
R49020660620.0030.005FKM     SB-4824
R49020660820.0030.007.00FKM     SB-7266
R49020670120.0030.007.00FKM     SB-9116
R49020V20120.0032.005NBR     SB-5336
R49020BF0120.0032.007.00SILICON     SB-9200
R49020100620.0035.006.00NBR     SB-7605
R49020660720.0035.008FKM     SB-5693
R49020100420.0040.0010NBR     SB-6049
R49020660920.0042.007.00FKM     SB-8554
R49020100720.0042.008.00NBR     SB-8077
R49022P40122.0032.007.00NBR     SB-2700
R49022100922.0034.209.80NBR     SB-8365
R49022100722.0035.007.00NBR     SB-6731
R49022100622.2244.457.93NBR     SB-5621
R49023100123.0035.006.50NBR     SB-6068
R49024100324.1035.406.50NBR     SB-6385
R49024100524.5853.976.35NBR     SC-7531
R49024100424.5856.266.35NBR     SC-7483
R49025660825.0035.006.00FKM     SB-4773
R49025100725.0035.008NBR     SB-243
R49025661125.0036.0010FKM     SB-5329
R49025661025.0037.006FKM     SB-5251
R4950025100425.0038.008NBR     SB-2350
R49025101425.0040.006.80NBR     SB-7961
R4950025660225.0040.007NBR     SB-2138
R49025101725.0042.0010.00NBR     SB-9328
R49025101625.0042.008.00NBR     SB-8787
R49025100125.0044.006NBR     SB-3904
R49025101525.0045.007.00NBR     SB-8475
R49025660625.0047.0010FKM     SB-4183
R4950025660425.4038.1012.7NBR     SB-1287
R49025661325.4038.107.93FKM     SB-9365
R49025100225.4044.456.35NBR     SB-5620
R49026100226.9635.006.50NBR     SB-6496
R49026660126.9837.304FKM     SB-5696
R49027100427.0036.504.80NBR     SB-7624
R49027100527.0037.004.50NBR     SB-9075
R49027660127.0037.204FKM     SB-4452
R49027100327.0043.008NBR     SB-6022
R49028100928.0040.006NBR     SB-6191
R49028660428.0040.007FKM     SB-4358
R49028101928.0040.008.00NBR     SB-9380
R49028640128.0042.0010.00FKM     SB-9412
R49028100828.0042.005.50NBR     SB-5355
R49028101328.0042.006.00NBR     SB-7827
R49028660228.0042.008FKM     SB-2520
R49028100628.0047.008NBR     SB-181
R49028101828.4450.8012.70NBR     SC-7932
R49028101028.5040.005NBR     SB-6464
R49028100328.5042.005.5NBR     SB-4185
R49028101428.5042.006.50NBR     SB-8347
R49028100528.5642.005.50NBR     SB-7253
R49028101728.5642.005.50NBR     SB-8993
R49028100728.5648.006NBR     SB-1479
R49028102028.5741.276.35NBR     SB-2589
R49028101128.6039.004.90NBR     SB-7269
R49028101528.6542.005.00NBR     SB-8416
R49029100329.3642.867.92NBR     SB-7099
R49030101230.0040.0010NBR     SB-5386
R49030U20130.0040.006.00FKM     SB-8523
R49030661030.0040.007.00FKM     SB-6954
R49030660630.0042.006FKM     SB-4453
R49030100230.0042.007NBR     SB-2267
R49030660730.0045.007FKM     SB-4603
R49030100930.0045.008NBR     SB-4983
R49030S80130.0047.0010.00NBR     SB-2660
R49030101130.0047.007NBR     SB-5195
R49030100730.0048.008NBR     SB-3416
R49030101330.0052.0010.00NBR     SC-6244
R49030101030.0054.0010NBR     SC-4365
R49030660430.0055.0010FKM     SC-3601
R49030101430.0055.005.00NBR     SC-6897
R49030450230.0060.006SILICON     SC-5194
R49030450330.0060.506SILICON     SC-5201
R49030640230.0062.007FKM     SC-2970
R49030P40130.0072.008.00NBR     SC-2511
R49031100331.7544.456.35NBR     SB-5622
R49031660331.7544.457.93FKM     SB-9364
R49031660231.7550.8011.30FKM     SC-4788
R49032660332.0045.006FKM     SB-5132
R49032100332.0047.008NBR     SB-178
R49032S70132.0048.007NBR     SB-5876
R49033100333.0043.006.50NBR     SB-6258
R49033080133.0045.006NBR     SB-6452
R49033100433.0054.008.00NBR     SC-5639
R49033100533.0057.0010.00NBR     SC-6260
R49033100233.3046.005NBR     SB-5183
R49034640234.0046.008.00FKM     SB-9413
R49034660134.0047.008FKM     SB-3693
R49034660234.9247.626.35FKM     SB-6005
R49034100134.9253.979.52NBR     SC-4846
R49035101735.0045.004.00NBR     SB-6700
R49035101035.0045.007NBR     SB-3719
R49035102435.0047.004.50NBR     SB-1440
R49035660835.0047.007FKM     SB-5503
R49035070135.0047.007NBR     SB-5956
R4950035110135.0048.005.5NBR     SB-2352
R49035110235.0048.005.50NBR     SB-4234
R49035100835.0048.006NBR     SB-2936
R49035102335.0048.008.00NBR     SB-589
R49035661335.0052.0010.00FKM     SC-7890
R49035100635.0052.005NBR     SC-2636
R49035102235.0052.005.00NBR     SC-7832
R49035101135.0052.005.10NBR     SC-3955
R49035340135.0052.006.00EPDM     SC-365
R49035100435.0054.008NBR     SC-3605
R49035100735.0055.0011NBR     SC-2655
R49035102035.0055.008.00NBR     SC-7459
R49035101835.0056.0012.00NBR     SC-6791
R49035102135.0062.0010.00NBR     SC-7630
R49035101235.0072.0010NBR     SC-3966
R49035101435.0072.0012NBR     SC-5096
R49036100536.0046.006.00NBR     SB-6789
R49036660236.0048.005.50FKM     SB-3551
R49036100636.0048.505.50NBR     SB-7876
R49036D60136.0050.007HNBR     SB-5987
R49036080136.0051.008.00NBR     SC-1112
R49036660536.0054.007.50FKM     SC-5981
R49036660136.0056.007FKM     SC-4293
R49037100137.0050.507.00NBR     SC-5895
R49037100237.0051.007.00NBR     SC-5919
R49038100438.0050.008.00NBR     SB-9164
R49038660238.0052.008FKM     SC-5406
R49038660438.1050.807.93FKM     SC-7959
R49040660840.0050.005.00FKM     SB-8936
R49040660440.0058.006FKM     SC-4040
R49040070140.0060.0010NBR     SC-5152
R49040100540.0060.007.00NBR     SC-5737
R49040100640.0062.0012.00NBR     SC-6186
R49040100740.0062.006.00NBR     SC-7051
R49040100140.0062.007NBR     SC-2679
R49040660740.0068.0010.00FKM     SC-7405
R49040660240.0068.008.00FKM     SC-3603
R49040660140.0080.006.5FKM     SD-1510
R49040640140.0080.007.20FKM     SD-2977
R49042100142.0055.007.00NBR     SC-3828
R49044100344.0060.008.00NBR     SC-2595
R49044100144.4557.157.50NBR     SC-4399
R49044100244.4557.157.93NBR     SC-5942
R49044660144.4563.556.35FKM     SC-6306
R49045661045.0055.0010.00FKM     SC-3611
R49045660245.0062.007FKM     SC-3007
R49045101145.0065.0010.00NBR     SC-5860
R49045100945.0065.006NBR     SC-4529
R49045100245.0065.007NBR     SC-2158
R49045101345.0065.007.00NBR     SC-7175
R49045100745.0065.008NBR     SC-4003
R49045660545.0068.008FKM     SC-4132
R49045100845.0070.0012NBR     SC-4364
R49045100645.0072.008NBR     SC-4157
R49045101245.0080.0013.00NBR     SD-4919
R49047660147.0062.007.50FKM     SC-6930
R49048660248.0062.008FKM     SC-5513
R49048660348.0063.5510.00FKM     SC-6408
R49048660448.0063.5512.00FKM     SC-6409
R49048100448.0065.0010.00NBR     SC-6245
R49048100348.0070.0012NBR     SC-4675
R49048100248.0070.006NBR     SC-4674
R49048660148.0072.0010FKM     SC-2979
R49049660249.0065.008FKM     SC-5405
R49049660349.1068.0012.00FKM     SC-5628
R49050661150.0060.0010FKM     SC-5578
R49050100850.0062.007NBR     SC-3660
R49050660650.0065.0010FKM     SC-2577
R49050101250.0065.007.00NBR     SC-6864
R49050100250.0065.008HNBR     SC-2299
R49050660850.0065.008FKM     SC-3602
R49050661350.0065.008.00FKM     SC-7002
R49050101350.0065.008.00NBR     SC-7466
R49050100150.0070.0010NBR     SC-3877
R49050110150.0070.007.00NBR     SC-2310
R49050660950.0070.008FKM     SC-4167
R49050101050.0072.008NBR     SC-5330
R49050660150.8072.239.52FKM     SC-5226
R49050101450.8077.779.52NBR     SD-1014
R49052U20152.0068.006.00FKM     SC-7260
R49052660152.0068.008FKM     SC-3542
R49052660252.0072.0010FKM     SC-5404
R49052660352.0075.0012.00FKM     SC-7053
R49053100153.9773.029.52NBR     SC-4847
R49054660154.0072.0010FKM     SC-5403
R49054660254.0080.0010.00FKM     SD-3795
R49055660355.0068.008.00FKM     SC-7631
R49055100555.0070.0010.00NBR     SC-6318
R49055100455.0070.008.00NBR     SC-3541
R49055100255.0072.008.00NBR     SC-3108
R49055670155.0075.008.00FKM     SC-7587
R49055660555.0078.0010.00FKM     SD-5415
R49055100155.0080.0012NBR     SD-2079
R49055660255.0080.008.00FKM     SD-4208
R49055100355.0090.0010NBR     SD-2953
R49057660257.0079.3012.00FKM     SD-1182
R49057660157.0079.3013.50FKM     SD-976
R49057100157.0082.0012.00NBR     SD-4221
R49058660358.0072.008FKM     SC-5402
R49058100158.0080.007NBR     SD-3538
R49058660258.0080.008FKM     SD-3541
R49058660458.0080.008.00FKM     SD-5275
R49060660760.0070.0010FKM     SC-5579
R49060661060.0070.005.00FKM     SC-7601
R49060101160.0072.0012.00NBR     SC-1971
R4950060100560.0075.008NBR     SC-2441
R49060100860.0075.009NBR     SC-5235
R49060101060.0080.0010.00NBR     SD-4713
R49060450160.0080.0013.00SILICON     SD-4897
R49060110260.0080.006/7.50NBR     SD-4051
R49060110160.0080.007NBR     SD-2909
R49060110360.0080.007.00NBR     SD-5345
R49060100760.0085.0013NBR     SD-3346
R49060100660.0090.0010NBR     SD-1208
R49060660460.0090.008FKM     SD-3076
R49060660660.0095.0010FKM     SD-3508
R49063660363.0082.0010FKM     SD-2329
R49063120163.5082.557.13NBR     SD-4330
R49063100263.5089.999.52NBR     SD-1497
R49063660463.50107.9514.27FKM     SE-325
R49065660365.0080.008FKM     SD-2892
R49065100965.0085.0010NBR     SD-3019
R49065101065.0085.008NBR     SD-3740
R49065100865.0090.0010.00NBR     SD-5199
R49065100565.0090.0013NBR     SD-1711
R49065660765.0095.0010FKM     SD-3505
R49065660865.00100.0010FKM     SD-3591
R49068100268.0085.0010.00NBR     SD-4099
R49068660168.0090.0010FKM     SD-1997
R49070U20170.0085.006.00FKM     SD-5028
R49070660370.0090.0010FKM     SD-2976
R49070U20270.0090.0010.00FKM     SD-5136
R49070110170.0090.006/7.50NBR     SD-3548
R490701000370.0090.007NBR     SD-2972
R49070670170.00100.0010FKM     SD-1665
R49070100570.00125.0012.00NBR     SE-2718
R49072660272.0086.007.5FKM     SD-3270
R49072660172.0096.007.5FKM     SD-3269
R49072660372.0097.0012FKM     SD-3271
R49075100375.0095.0010NBR     SD-1613
R49075U20175.0095.0010.00FKM     SD-665
R49075640175.00100.0010FKM     SD-1704
R49075100475.00100.0013.00NBR     SD-3844
R49076100176.2095.259.52NBR     SD-2090
R49076640276.20107.9514.30FKM     SE-2164
R49076640176.20114.3014.30FKM     SE-2150
R49078100278.0089.006.00NBR     SD-1637
R49078100178.00100.006.00NBR     SD-5255
R49079100179.0085.0016.00NBR     SD-3845
R49080660380.0090.005.00FKM     SD-5286
R49080100180.00100.0010NBR     SD-1629
R49080660480.00100.0010.00FKM     SD-1025
R49080450180.00100.0013.00SILICON     SD-4921
R49080110180.00100.007/8.50NBR     SD-3549
R49080100580.00110.0017.00/19.00NBR     SE-357
R49082080182.00110.0013.00NBR     SE-2390
R49085100685.00105.0010.00NBR     SE-2642
R49085100485.00110.0012NBR     SE-1808
R49085660285.00120.008FKM     SE-1943
R49088660188.90114.3011.09FKM     SE-1754
R49090660490.00100.005.00FKM     SD-5285
R49090100390.00110.0010NBR     SE-1218
R49090U20190.00110.0012.00FKM     SE-293
R49090450190.00110.0013.00SILICON     SE-2772
R49090660590.00115.0012.00FKM     SE-3022
R49090660390.00120.0012FKM     SE-830
R49090100490.00125.0013.00NBR     SE-2609
R49094100194.00120.0013.00NBR     SE-2345
R49095660295.00110.0010FKM     SE-1747
R49095100295.00115.0012.00NBR     SE-2956
R49095320195.00120.0012EPDM     SE-1158
R49097D60197.50120.0012.00HNBR     SE-2432
R49097D60297.50124.0012.00HNBR     SE-2433
R49100U201100.00120.0012.00FKM     SE-2630
R491001004100.00130.0012NBR     SF-782
R491006603100.00130.0012.00FKM     SF-2514
R491001008100.00180.0012.00NBR     SH-1269
R491051002105.00125.0014NBR     SE-2092
R491056601105.00130.0012FKM     SF-1015
R491054502105.00130.0013.00SILICON     SF-2429
R491056603105.00130.007.50FKM     SF-2454
R491056602105.00135.0013FKM     SF-1689
R491051003105.00140.0012.00NBR     SF-2590
R49108D601108.00130.0012.00HNBR     SF-228
R491091001109.00115.0018.00NBR     SE-2193
R491106607110.00120.005.00FKM     SE-2959
R491106609110.00130.0010.00FKM     SF-146
R491106602110.00130.0012NBR     SF-783
R491106606110.00130.0012.00FKM     SF-2394
R491101006110.00130.006.50NBR     SF-1695
R491106605110.00135.0010FKM     SF-1690
R491106608110.00135.0013.00FKM     SF-2644
R491101007110.00140.0014.00NBR     SF-2407
R491101004110.00150.0013NBR     SF-685
R491116601111.12123.826.35FKM     SE-812
R491151001115.00140.0012NBR     SF-791
R491151002115.00145.0015.00NBR     SF-2695
R491201001120.00140.0013NBR     SF-781
R491206603120.00150.0012.00FKM     SF-2010
R491201005120.00150.0015.00NBR     SF-199
R491206601120.00160.0012FKM     SG-648
R491201002120.00180.0012.00NBR     SH-1270
R491254501125.00150.0013.00SILICON     SF-2430
R491291001129.00161.5016.00NBR     SG-1869
R491306603130.00140.005.00FKM     SF-2592
R491306602130.00150.0012FKM     SF-1232
R491301002130.00160.0012NBR     SG-499
R491351002135.00170.0015NBR     SG-500
R491401005140.00160.0010.00NBR     SG-1969
R491401004140.00160.0013.00NBR     SG-1418
R491406603140.00165.0010FKM     SG-663
R491401003140.00170.0012NBR     SG-586
R491401002140.00170.0015NBR     SG-931
R491404501140.00175.0013.00SILICON     SG-1814
R491501003150.00180.0010NBR     SH-485
R491506601150.00180.0015FKM     SH-342
R491506602150.00180.0015.00FKM     SH-1438
R491551002155.00175.0012.00NBR     SG-210
R491556601155.00190.0014FKM     SH-1093
R491581001158.75184.1512.70NBR     SH-1490
R491600801160.00190.0012.00NBR     SH-1417
R491606401160.00190.0015.00FKM     SH-536
R491606601160.00200.0015.00FKM     SH-1458
R491601002160.00290.0018.00NBR     SN-713
R491706602170.00200.0012.00FKM     SH-357
R491706601170.00200.0015NBR     SH-421
R491806602180.00200.0013FKM     SH-746
R491851003185.00205.0010NBR     SJ-801
R491856601185.00205.0011FKM     SJ-1084
R491851001185.00215.0015NBR     SJ-317
R491851002185.00240.0022.00NBR     SK-815
R491901004190.00210.008.00NBR     SJ-1025
R491901003190.00220.0012.00NBR     SJ-980
R491901002190.00225.0015.00NBR     SJ-895
R492006603200.00225.0015.00FKM     SJ-369
R492006601200.00230.0015.00FKM     SK-802
R492006602200.00235.0017.00FKM     SK-1077
R492001022200.00240.0020NBR     SK-665
R492201001220.00250.0015NBR     SK-327
R492201003220.00250.0016NBR     SK-765
R492504501250.00300.0018.00SILICON     SN-777
R492606603260.00290.0015.00FKM     SN-174
R492606602260.00290.0016.00FKM     SN-756
R492606601260.00300.0020.00FKM     SN-680
R492701001270.00300.0015NBR     SN-246
R492701002270.00310.0016NBR     SR-1069
R492741001274.50309.0015NBR     SR-1000
R492796601279.40304.8015.87FKM     SR-180
R492801001280.00320.0015.00NBR     SR-1513
R492886603288.77330.6017FKM     SR-990
R492886602288.77330.6020FKM     SS-1803
R492886601288.85330.6020FKM     SR-939
R492901001290.00334.0020.00NBR     SR-1220
R493001001300.00340.0015NBR     SR-973
R493006601300.00340.0020FKM     SR-672
R493101001310.00350.0018NBR     SR-1068
R493116602311.80362.2417FKM     SR-989
R4931186601311.80362.2420FKM     SR-951
R493126601312.10362.2420FKM     SR-938
R493201003320.00360.0020.00NBR     SR-1594
R493300901330.00370.0015NBR     SR-1050
R493301002330.00374.7020NBR     SR-827
R493401001340.00380.0020.00NBR     SS-2770
R493601001360.00400.0018NBR     SS-1986
R493601002360.00420.0025.00NBR     SS-2158
R493701001370.00415.0020.00NBR     SS-2157
R494406601440.00480.0020FKM     SS-1926
R494401001440.00490.0022.00NBR     SS-2868
R494501001450.00490.0017NBR     SS-1742
R495001001500.00545.0015.00NBR     SS-2956
R495021101502.00560.0020.00NBR     SS-2308
R495601102560.00600.0018.00NBR     SS-2666
R495601101560.00610.0020.00NBR     SS-2664
R496201001620.00680.0024NBR     SS-969
R497101101710.00760.0020.00NBR     SS-2665
R497871101787.40830.5820.00NBR     SS-845




For customised items please Click here
Login
