Max Spare : S08

Profile : Rod Seals

Details :

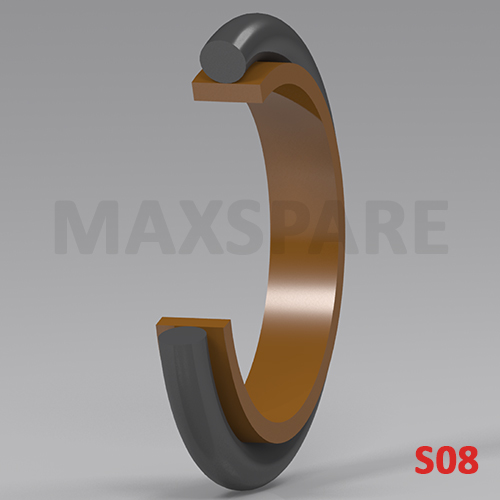

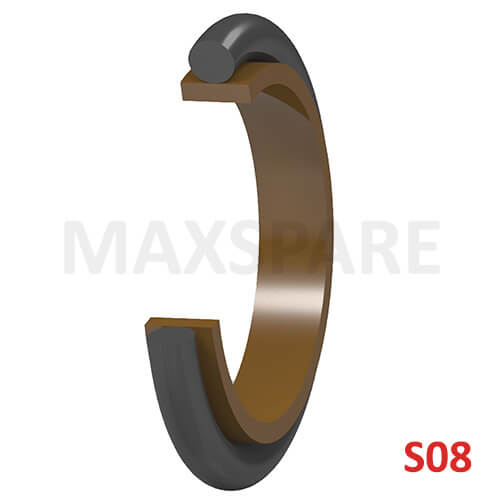

The S08 is a combination of composite PTFE sealing element with an o ring energizer. It is designed for low friction pneumatic applications with small installation space, widely use in control cylinders and high-speed cylinders etc.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	16 Bar
Speed	:	4.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Sealing Ring : Carbon Filled PTFE.O Ring : Nitrile Rubber 70/75 Shore A.: FKM Rubber 70/75 Shore A.

FEATURES

Assembly on one-piece piston.
Short assembled length.
Minimal break-out and dynamic slide friction, no stick-slip, steady movement at low velocities.
Low wear.
High extrusion & temperature resistance (as per material selected).
Easy installation & Smallest space groove.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
S080086901	8.00	9.25	1.90	PTFE	RTB-139
S080086902	8.00	10.00	1.90	FKM/PTFE	RTB-153
S080080801	8.00	10.90	2.40	NBR/BFT	RTB-137
S080080802	8.00	14.40	3.20	NBR/BFT	RTB-268
S080097001	9.00	16.30	3.20	NBR/BFT	RTB-260
S080100802	10.00	14.90	2.20	NBR/BFT	RTB-264
S080107002	10.00	15.00	2.20	NBR/BFT	RTB-183
S080107001	10.00	17.50	3.20	FKM/BFT	RTB-154
S080100803	10.00	17.50	3.20	NBR/BFT	RTB-270
S080117002	11.30	16.00	2.50	BFT	RTB-145
S080120803	12.00	15.73	3.20	NBR/BFT	RTB-267
S080120805	12.00	16.90	2.20	NBR/BFT	RTB-333
S080120802	12.00	17.00	3	NBR/PTFE	RTB-130
S080120804	12.00	18.50	3.20	NBR/BFT	RTB-266
S080127001	12.00	19.50	3.20	FKM/BFT	RTB-155
S080136401	13.50	15.60	2	FKM+NY	RTB-133
S080146901	14.00	18.50	2.20	PTFE	RTB-312
S080146403	14.00	18.90	2.20	FKM/BFT	RTB-181
S080146403	14.00	18.90	2.20	NYLON	RTB-222
S080140802	14.00	19.00	3.40	CAT	RTB-265
S080140801	14.00	20.00	3	NBR/NYLON	PFB-822
S080140803	14.00	21.30	3	HDPE	CS-3166
S080146405	14.80	20.00	3.30	PTFE	RTB-307
S080157001	15.00	22.50	3.20	FKM/BFT	RTB-223
S080160808	16.00	20.00	2.10	PTFE	RTB-204
S080160802	16.00	20.60	3.50	PTFE	RTB-212
S080160807	16.00	21.20	2	NBR/BFT	RTB-193
S080166901	16.00	22.00	2.70	PTFE	RTB-320
S080166401	16.00	22.00	2.85	FKM/BFT	RTB-189
S080160804	16.00	23.30	3.20	NBR/BFT	RTB-147
S080176401	17.50	20.80	2.90	FKM+NY	RTB-134
S080176402	17.50	25.30	3.20	FKM/BFT	RTB-213
S080186401	18.00	25.30	3.20	FKM/BFT	RTB-182
S080190801	19.50	23.10	2.90	NBR/BFT	RTB-142
S080197401	19.86	21.66	2.80	GRT	RTB-122
S080200807	20.00	28.00	3.20	NBR/BFT	RTB-245
S080208701	20.00	30.70	4.20	PU	PUB-1951
S080200809	20.00	31.00	4.20	NBR/BFT	RTB-329
S080227001	22.00	26.50	2.70	BFT	RTB-146
S080226401	22.00	29.50	3.20	FKM/BFT	RTB-176
S080257004	25.00	32.00	3.70	NBR/BFT	RTB-102
S080256601	25.00	32.30	3.20	FKM/BFT	RTB-105
S080257002	25.00	32.30	3.20	FKM/BFT	RTB-106
S080257008	25.00	32.30	4.20	NBR/BFT	RTB-292
S080250802	25.00	35.70	4.20	NBR/BFT	RTB-117
S080257006	25.00	38.00	5.50	NBR/BFT	RTB-187
S080257005	25.50	38.50	6	NBR/BFT	RTB-158
S08026L501	26.00	31.00	2.00	PU	PUB-488
S080260801	26.50	31.50	2.20	NBR/BFT	RTB-184
S080280805	28.00	34.00	2.85	NBR/BFT	RTB-291
S080300806	30.00	40.70	4.20	NBR/BFT	RTB-157
S080327001	32.00	38.50	3.30	BFT	RTB-144
S080320805	32.00	39.50	3.80	NBR/BFT	RTB-177
S080326401	32.00	40.00	3.20	PTFE	RTB-246
S080320803	32.00	40.30	3.50	NBR/BFT	RTB-234
S080320801	32.00	42.70	4.20	NBR/BFT	RTB-191
S080347005	34.85	40.25	5	NBR/BFT	RTB-305
S080350812	35.00	41.60	5	NBR/BFT	RTB-215
S080357302	35.00	42.30	3.20	CAT	RTB-285
S080357301	35.00	42.50	3.50	CAT	RTB-242
S080350801	35.00	44.00	5.30	NBR/BFT	RTB-143
S080350803	35.00	46.00	4.20	NBR/BFT	RTB-330
S080350824	35.00	48.00	5	PU	PUB-1504
S080350817	35.00	48.00	5	NBR/BFT	RTB-190
S080357003	35.00	48.00	5.10	FKM/BFT	RTB-162
S080350816	35.00	48.00	5.20	NBR/BFT	RTB-101
S080350807	35.00	48.00	5.20	NBR/BFT	RTB-126
S080350810	35.00	48.50	5.20	NBR/BFT	RTB-110
S080357005	35.00	48.50	5.30	NBR/BFT	RTB-284
S080357004	35.10	47.00	5.30	NBR/BFT	RTB-231
S08032Z401	35.55	42.50	3.80	GRT	RTB-235
S08035X201	35.55	42.50	3.80	GLT	RTB-236
S080360801	36.00	4.70	4.20	NBR/BFT	RTB-251
S080360803	36.00	42.20	4.8	NBR/PU	CS-1505
S080360805	36.00	43.00	4.50	PTFE	RTB-297
S080367004	36.00	43.10	4.50	NBR/BFT	RTB-199
S080360804	36.00	43.20	3.70	NBR/BFT	RTB-238
S080367005	36.00	45.90	7.20	NBR/BFT	RTB-277
S080386403	38.00	52.00	6	MBRT-40	RTB-206
S080380801	38.10	45.38	3.20	NBR/BFT	RTB-175
S080390805	39.50	44.50	3.90	NBR/BFT	RTB-135
S080400807	40.00	45.00	4.20	NBR/NYLON	PFB-823
S080400811	40.00	46.00	3	CAT	RTB-171
S080400808	40.00	47.50	3.80	NBR/BFT	RTB-124
S080406401	40.00	47.50	3.80	FKM/BFT	RTB-207
S080406901	40.00	50.00	7	NBR/PTFE	RTB-156
S080407003	40.00	50.70	4.20	NBR/BFT	RTB-261
S080400810	40.00	51.00	4.20	NBR/BFT	RTB-140
S080400813	40.00	52.30	5.50	NBR/BFT	RTB-303
S080400801	40.00	55.50	6.30	NBR/BFT	RTB-279
S08041M101	41.52	57.79	6.99	ACETAL	RTB-340
S080440804	44.45	52.70	3.60	NBR/BFT	RTB-309
S080450815	45.00	52.50	3.80	NBR/BFT	RTB-331
S080450801	45.00	54.40	7.10	NBR/BFT	RTB-179
S080450813	45.00	55.00	7	PTFE	RTB-296
S080457001	45.00	55.40	7	NBR/BFT	RTB-198
S080450812	45.00	55.50	7.20	NBR/BFT	RTB-274
S080450802	45.00	56.00	4.20	NBR/BFT	RTB-107
S080456401	45.00	60.50	6.30	FKM/BFT	RTB-217
S080450809	45.00	62.00	6.30	NBR/BFT	RTB-109
S080450814	45.40	52.40	6	NBR/BFT	RTB-318
S080470802	47.00	62.10	6.30	NBR/BFT	RTB-326
S080487401	48.00	50.50	5.80	GRT	RTB-121
S080480804	48.00	57.50	4.30	PTFE	RTB-248
S080506405	49.70	54.70	8	PU	CS-1838
S080500812	50.00	55.00	2.70	NBR/BFT	RTB-108
S080500815	50.00	60.00	4.20	NYLON	RTB-315
S080507003	50.00	60.00	7	FKM/BFT	RTB-159
S080506406	50.00	60.00	7	CAT	RTB-237
S080506601-A	50.00	60.10	7	FKM/BFT	RTB-119
S080507006	50.00	60.40	6.70	NBR/BFT	RTB-275
S080507301	50.00	60.70	4.20	CAT	RTB-136
S080507005	50.00	60.70	4.20	NBR/BFT	RTB-271
S080500813	50.00	62.50	5.60	NBR/BFT	RTB-224
S080507004	50.00	65.00	5.60	NBR/BFT	RTB-240
S080500804	50.00	65.10	6.30	NBR/BFT	RTB-112
S080506404	50.00	65.10	7	FKM/BFT	RTB-118
S0805006401	50.00	66.00	10	FKM/BFT	RTB-164
S080507009	50.44	57.44	6	NBR/BFT	RTB-306
S080500814	50.80	65.90	6.30	NBR/BFT	RTB-232
S080550806	55.00	69.20	8.10	NBR/BFT	RTB-299
S080567002	56.00	63.50	4.20	NBR/BFT	RTB-263
S080567301	56.00	66.70	4.20	CAT	RTB-286
S080576402	57.15	72.20	6.30	FKM/BFT	RTB-280
S080597003	59.00	64.30	4	NBR/BFT	RTB-123
S080600803	60.00	70.00	4.20	NBR/BFT	RTB-247
S080600804	60.00	70.70	4.20	NBR/BFT	RTB-298
S080606601	60.00	72.00	4.20	FKM/BFT	RTB-103
S080606401	60.00	75.50	6.30	FKM/BFT	RTB-218
S080606402	60.32	71.02	4.20	FKM/BFT	RTB-336
S080630802	63.00	74.20	4.20	GLT	RTB-300
S080636601	63.00	75.00	4.20	FKM/BFT	RTB-104
S080637003	63.00	75.00	7.20	NBR/BFT	RTB-295
S080656402	65.00	73.00	3.20	FKM/BFT	RTB-346
S080656401	65.00	74.50	3.20	FKM/BFT	RTB-186
S080660802	66.00	76.00	6.50	PTFE	RTB-294
S080690801	69.60	74.60	4.50	NBR/BFT	RTB-192
S080700802	70.00	80.00	4	NBR/BFT	RTB-111
S080707002	70.00	80.00	6.80	FKM/BFT	RTB-160
S080707006	70.00	80.20	6.70	NBR/BFT	RTB-276
S080706401	70.00	80.70	4.20	FKM/BFT	RTB-243
S080700804	70.00	82.10	5.90	NBR/BFT	RTB-200
S080707003	70.00	82.50	5.60	NBR/BFT	RTB-197
S080707005	70.00	85.00	5.60	NBR/BFT	RTB-241
S080707001	70.00	85.00	5.70	NBR/BFT	RTB-272
S080700801	70.00	85.10	6.30	NBR/BFT	RTB-252
S080700803	70.00	85.50	6.30	NBR/BFT	RTB-141
S080700805	70.00	90.50	8.10	NBR/BFT	RTB-283
S080720802	72.00	79.00	3.10	NBR/BFT	RTB-161
S080730801	73.02	80.94	2.90	HYTREL	PFB-877
S080740801	74.07	81.07	6	NBR/BFT	RTB-203
S080750802	75.00	87.50	5.60	NBR/BFT	RTB-332
S080780801	78.00	86.00	2.90	NBR/BFT	RTB-209
S080800802	80.00	90.70	4.20	NBR/BFT	RTB-282
S080800801	80.00	95.10	6.30	NBR/BFT	RTB-165
S080820801	82.50	95.00	5.60	NBR/BFT	RTB-316
S080837002	83.00	90.00	3.10	NBR/BFT	RTB-152
S080830801	83.00	93.70	4.20	NBR/PTFE	RTB-127
S080837003	83.00	93.70	4.20	NBR/BFT	RTB-327
S080857003	85.00	97.50	6.30	NBR/BFT	RTB-125
S080857007	85.10	92.10	6	NBR/BFT	RTB-308
S080857005	85.80	100.80	6	FKM/BFT	RTB-230
S080857006	85.80	103.00	6	NBR/BFT	RTB-239
S080867002	86.00	101.00	6.30	FKM/BFT	RTB-208
S080867301	86.00	101.50	6	CAT	RTB-302
S080887801	88.00	111.80	6.60	ACETAL	RTB-347
S080900806	90.00	100.00	4.20	NYLON	RTB-313
S080900805	90.00	100.70	4.20	NBR/PTFE	RTB-128
S080907001	90.00	100.70	4.20	NBR/BFT	RTB-328
S080900804	90.00	105.10	6.30	NBR	RTA-253
S080900803	90.00	105.10	6.30	NBR/BFT	RTB-138
S080920801	92.00	100.00	3.20	NBR/BFT	RTB-188
S080920803	92.00	102.00	6.70	NBR/BFT	RTB-323
S080920802	92.73	100.70	3.20	NBR/BFT	RTB-151
S080980801	98.00	105.70	3.20	NBR/BFT	RTB-149
S081000806	100.00	112.50	5.60	NBR/BFT	RTB-317
S081000805	100.00	115.10	6.50	NBR/BFT	RTB-205
S081000804	100.00	116.00	6	NBR/BFT	RTB-185
S08100T901	100.00	116.00	6.30	FKM/BFT	RTB-301
S081027001	102.28	109.28	6	NBR/BFT	RTB-216
S081030802	103.00	110.70	3.20	NBR/BFT	RTB-150
S081030803	103.00	119.00	6.20	NBR/BFT	RTB-342
S081047001	104.00	112.00	3.20	FKM/BFT	RTB-345
S081050803	105.00	115.00	6.50	PTFE	RTB-293
S081097001	109.75	117.45	3.20	NBR/BFT	RTB-168
S081100802	110.00	125.10	6.30	NBR/BFT	RTB-166
S081127001	112.00	120.00	3.20	FKM/BFT	RTB-343
S081120801	112.34	120.04	3.20	NBR/BFT	RTB-148
S081150802	115.00	126.00	4.20	NYLON	RTB-314
S081150801	115.00	130.10	6.30	NBR/BFT	RTB-250
S081157001	115.50	123.20	3.20	NBR/BFT	RTB-167
S081200803	120.00	126.00	2.70	CAT	RTB-233
S081207005	120.00	128.00	3.20	FKM/BFT	RTB-344
S081200802	120.00	131.50	7.50	CAT	RTB-163
S081206401	120.00	135.00	9	CAT	RTB-321
S081207002	120.00	135.10	6.30	NBR/BFT	RTB-194
S081207004	120.00	135.10	6.30	FKM/BFT	RTB-325
S081207003	120.00	139.00	6.50	FKM/BFT	RTB-324
S081200804	120.00	140.50	2.70	NYLON	RTB-257
S081217001	121.50	129.20	3.20	NBR/BFT	RTB-169
S081220801	122.00	129.70	3.20	NBR/BFT	RTB-221
S081256901	125.00	140.00	7.30	PTFE	RTB-319
S081300804	130.00	137.70	3.20	BFT	RTB-311
S081300801	130.00	145.10	6.30	NBR/BFT	RTB-131
S081300803	130.00	146.00	6	NBR/BFT	RTB-229
S081327001	132.25	139.95	3.20	NBR/BFT	RTB-170
S081380801	138.00	145.70	3.20	NBR/BFT	RTB-219
S081400803	140.00	155.10	6.30	NBR/BFT	RTB-253
S081450802	145.00	160.50	6.30	NBR/BFT	RTB-335
S081450801	145.70	153.20	3.20	BFT	RTB-310
S081486401	148.34	154.34	7.60	FKM/BFT	RTB-172
S081507001	150.00	165.00	5.75	NBR/BFT	RTB-273
S081500801	150.00	165.10	6.30	PTFE	RTB-114
S081500802	150.00	165.10	6.30	NBR/BFT	RTB-214
S081500803	150.00	165.10	6.30	CAT	RTB-225
S081506401	150.00	165.10	6.30	FKM/BFT	RTB-262
S081520801	152.50	160.20	3.20	NBR/BFT	RTB-220
S081607301	160.00	175.10	6.30	CAT	RTB-281
S081650801	165.00	180.10	6.30	PTFE	RTB-115
S081657002	165.00	180.10	6.30	NBR/BFT	RTB-195
S081650802	165.00	180.10	6.30	CAT	RTB-226
S081700803	170.00	181.00	4.20	PTFE	RTB-178
S081700805	170.00	182.50	6	GRT	RTB-210
S081700804	170.00	184.00	6	GRT	RTB-254
S081700802	170.00	185.50	6.30	NBR/BFT	RTB-196
S08172Y501	172.00	187.50	6.30	NBR+PU	PUH-206
S081767101	176.00	187.00	4.20	BFT	RTB-338
S081800801	180.00	195.10	6.30	PTFE	RTB-113
S081800802	180.00	195.10	6.30	CAT	RTB-228
S081807004	180.00	195.10	6.30	NBR/BFT	RTB-322
S081806402	180.00	201.00	8.10	FKM/BFT	RTB-341
S081806401	180.00	202.00	8.10	FKM/BFT	RTB-334
S081850801	185.00	197.50	5.60	GRT	RTB-211
S081950801	195.00	210.10	6.30	PTFE	RTB-116
S081950802	195.00	210.10	6.30	CAT	RTB-227
S081957101	195.25	206.25	4.20	BFT	RTB-339
S082000801	200.00	220.50	8.10	NBR/BFT	RTB-337
S082050802	205.00	219.00	6	GRT	RTB-256
S082100804	210.00	224.20	6.40	GRT	RTB-255
S08217Y501	217.00	238.00	8.10	NBR+PU	PUK-140
S082200802	220.00	240.00	8.10	NBR/BFT	RTB-259
S082200801	220.00	240.50	8.10	NBR/BFT	RTB-132
S082240801	224.50	242.50	7	NBR/BFT	RTB-201
S082267001	226.00	247.00	10.40	FKM/BFT	RTB-120
S08233Y501	233.00	248.50	6.30	NBR+PU	PUK-139
S082400801	240.00	261.00	8.10	NBR/BFT	RTB-258
S082700801	270.00	294.00	8.10	NBR/BFT	RTB-180
S083200801	320.00	332.20	9.50	NBR/BFT	RTB-129
S083300801	330.00	354.00	8.10	NBR/BFT	RTB-269
S083577001	357.90	373.10	7.20	FKM/BFT	RTB-202
S084200801	420.00	444.00	8.10	NBR/BFT	RTB-304
S084734301	473.00	484.80	5.95	BFT	RTB-174
S084900801	490.00	514.00	8.10	NBR/BFT	RTB-290
S084954301	495.00	506.80	5.95	BFT	RTB-173
S087400801	740.00	764.50	8.10	NBR/BFT	RTB-278
S088000801	800.00	827.30	9.50	NBR/BFT	RTB-249

For customised items please Click here
