Profile : Piston Seals

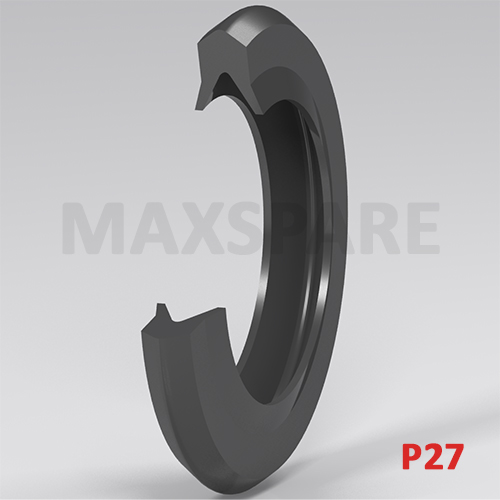

Spareage : P27
P27 Assembly

Details :
P27 is a double acting pneumatic piston seal suitable for small grooves, easy installation due to its special geometry.
MATERIAL
  • Pneumatic Cylinders.
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C (NBR)
: -40° C to + 220° C (FKM)
Pressure : 16 Bar
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Compressed air.
APPLICATION
Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.
FEATURES
  • Low friction.
  • Lubricating film by optimum profile arrangement.
  • Long service lives.
  • Symmetrical profile, easy installation.
  • Pressure admission on one side or on both sides.

Manufactured by: Max Spare Limited
Product ID: /details?id=48&name=p27


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P2700608016.5016.002.00/3.00NBR     SPA-148
P2700708017.5018.002/2.8NBR     SPA-2969
P2700908019.0015.001.50/2.30NBR     SPA-549
P270090901 (Stock Item) 9.5020.002.4NBR     SPA-4939
P27010110110.0016.002/2.50NBR     SPA-631
P27010650110.0016.002/5.50FKM     SPA-6363
P27010100310.0020.002.00/3.00NBR     SPA-466
P270101001 (Stock Item) 10.0020.002.3NBR     SPA-1877
P27010080110.0020.002.30NBR     SPA-8856
P27011080311.0018.002.00/2.69NBR     SUA-402
P27011080111.2018.002NBR     SPA-2926
P27012090112.4020.002NBR     SPA-3186
P27012090212.4020.002.30NBR     SPA-737
P27014080114.0024.002.00/2.80NBR     SPA-5482
P27014090114.6022.202/2.50NBR     SPA-6295
P27015090715.0025.002.3NBR     SPA-1878
P270150904 (Stock Item) 15.0025.002/2.50NBR     SPA-8557
P27015090515.0026.001.90/2.60NBR     SPA-122
P27017090317.3025.302/3NBR     SPA-7944
P27017090117.5025.002/2.60NBR     SPA-6262
P27017080117.5026.002.00/2.80NBR     SPA-404
P27017090217.8025.602.30NBR     SPA-6445
P27018090518.0025.702.50NBR     SPA-10556
P27018620118.0030.002.20FKM     SPA-393
P27018100318.1025.702.5NBR     SPA-577
P27020080120.0030.002/2.80NBR     SPA-12918
P27022080122.0030.001.50/2.30NBR     SPA-5483
P27022090222.0032.002.0/2.80NBR     SPA-6039
P27022080322.0032.002.00/3.00NBR     SPA-144
P27022080222.0034.002.50/3.50NBR     SPA-5686
P27023200123.0034.002.60/3.00NEOPRENE     SPA-743
P27023080123.5038.002.50/3.70NBR     SPA-175
P27023080223.7035.002.00/3.20NBR     SPA-406
P27024080124.0034.002.50/3.50NBR     SPA-5986
P27024090124.4032.002NBR     SPA-3187
P27025090425.0032.004.20NBR     SPA-6113
P270250905 (Stock Item) 25.0035.002.50/3.50NBR     SPA-6406
P27025090625.0035.002.50/3.50NBR     SPA-6775
P27025650125.0037.003.80/6.00FKM     SPA-658
P27026080126.7036.802.5/3.50NBR     SPA-2924
P27027080127.0036.001.90/3.00NBR     SPA-550
P27027180127.5040.003NBR     SPA-5502
P27029090229.0040.002/3NBR     SPA-10618
P27029090229.0040.004NBR     SPA-7501
P27030200130.0040.002.00/2.80NEOPRENE     SPA-734
P27030100130.0040.002.5/3NBR     SPA-2587
P27030090130.0040.002.5/3.5NBR     SPA-3188
P27030080130.0040.002.5/3.50NBR     SPA-5850
P27030650130.0040.002.5/3.58FKM     SPA-13115
P27030090230.8040.802.5/3.50NBR     SPA-5687
P27032090332.0040.002.50/3.50NBR     SPA-12594
P27032090232.0045.002.50/3.50NBR     SPA-11017
P27032080132.5045.002.50/3.50NBR     SPA-143
P27033090133.0040.003NBR     SPA-7500
P27034L50134.0055.004.85/6PU     PPA-3131
P27035080135.0045.002.5/3.50NBR     SPA-5851
P27036080136.0048.002.50/3.65NBR     SPA-6747
P27036090236.5050.002.60/3.50NBR     SPA-7625
P27037L50137.0057.004.80/6PU     PPA-3130
P27037100637.5050.002.5/3NBR     SPA-8327
P27037090637.5050.002.50/3.60NBR     SPA-292
P27037090337.5050.003NBR     SPA-4781
P27038080238.0050.002.50/3.50NBR     SUB-1390
P27038080138.7050.002.50/3.20NBR     SPA-10192
P27040080140.0050.002.50/3.50NBR     SPA-5852
P27042080142.5060.003.50/4.00NBR     SPA-162
P27043L50143.0064.004.80/6PU     PPA-3132
P27044090144.0060.003.5NBR     SPA-3881
P27044080244.0060.003/4.30NBR     SPA-464
P27045090345.0059.003NBR     SPA-6391
P27045080145.0061.003.40/4.40NBR     SPA-674
P27046090146.0060.003NBR     SPA-3189
P27047090247.0063.003/4NBR     SPA-10082
P27049090149.0063.003.00NBR     SPA-3190
P27053090153.5070.003.30/4.30NBR     SPA-9256
P27055090155.5070.003.5NBR     SPA-3608
P27059090159.0075.003.50NBR     SPA-3609
P27060090260.0076.003.50NBR     SPA-6392
P27062090162.2074.703/4NBR     SPA-7313
P27063090363.0080.003.70/4.80NBR     SPA-5965
P27064090164.0080.603.50/5.00NBR     SPA-12198
P27064100164.8081.803.5/4.50NBR     SPA-2982
P27065090165.0075.002.50/3.50NBR     SPA-11916
P27065090265.0080.003.50/4.50NBR     SPA-450
P27068650168.0080.002.80/3.50FKM     SPA-13087
P27068090168.0080.002.80/3.50NBR     SPA-7420
P27070090470.0080.002.8/3.8NBR     SUD-757
P27070090370.0090.003.50/4.50NBR     SPA-11018
P27070090170.0093.004/5.50NBR     SPA-6713
P27070090270.00100.004/5.50NBR     SPA-9201
P27071090371.0095.005/6NBR     SPA-7886
P27072080172.0081.402.90/3.50NBR     SUD-912
P27072090172.0095.004/5.50NBR     SPA-6854
P27074090174.7091.303.50/4.60NBR     SPA-11809
P27077080277.4090.003.20/4.50NBR     SUD-860
P27107890178.00101.005/6NBR     SPA-8760
P27079090179.00100.004.6NBR     SPA-3357
P27079090279.00100.004/5.50NBR     SPA-12762
P27079080279.00100.004/5.50NBR     SPA-189
P27079080179.2089.802.50/3.50NBR     SPA-6970
P27079110179.70100.103.80/5NBR     SPA-7828
P27080100180.00100.004.60NBR     SPA-2664
P27080080380.00100.004.60NBR     SPA-341
P27080080180.5091.502.60/3.60NBR     SPA-11715
P27081080281.3092.303/4NBR     SPA-3842
P27083090183.40100.004NBR     SPA-3834
P27086090186.00100.003.50/5NBR     SPA-6183
P27086090286.00111.005/6NBR     SPA-8490
P27087090287.00105.005/6NBR     SPA-8761
P27087090187.00110.005/6NBR     SPA-7885
P27087650187.00110.008.50/11.00FKM     SPA-13161
P27095CG0195.00110.005.30/7.30PU     PPA-3448
P27100CG01100.00120.006/8PU     PPA-3252
P271000901100.00125.005.1NBR     SPA-802
P271006601100.00125.005.10FKM     SPA-10515
P271010902101.00125.004.70/6.50NBR     SPA-7668
P271030903103.00125.005/6NBR     SPA-8492
P271030901103.00126.005/6NBR     SPA-7887
P271030902103.00127.005/6NBR     SPA-8491
P271040901104.40125.004.7/6.1NBR     SPA-2742
P271050901105.00125.005/6NBR     SPA-9647
P271146501114.60144.008.00/9.00FKM     SPA-13113
P27120CG01120.90141.507/9.60PU     PPA-3263
P271220901122.00150.006.20NBR     SPA-4913
P271320902 (Stock Item) 132.00160.005.50/7.70NBR     SPA-8075
P271350902135.00160.007NBR     SPA-10912
P271350901 (Stock Item) 135.60160.005.5NBR     SPA-3193
P271356501135.60160.005.50FKM     SPA-5108
P271350801135.60160.005.70/6.70NBR     SPA-13030
P271366401136.00161.005.70/6.70FKM     SPA-6857
P271448901144.50175.006.50/7.40PU     PUG-163
P271470901147.00179.008NBR     SPA-113
P271480903148.00175.006NBR     SPA-9399
P271511001151.00175.006NBR     SPA-6407
P271521001152.40182.008.90NBR     SPA-3683
P271570902157.00190.007.50/9.50NBR     SPA-8199
P271621001162.00202.0011.60NBR     SPA-3682
P271631001163.00200.008/9.50NBR     SPA-2287
P27163CG01163.30183.506/8.60PU     PPA-3262
P271670901167.00200.007.50/9.50NBR     SPA-9330
P271681001168.00200.006NBR     SPA-7342
P271680801168.00200.008NBR     SPA-10563
P271680901 (Stock Item) 168.00200.008NBR     SPA-3195
P271750801175.00212.008/10NBR     SPA-12917
P271770901177.80210.807.70/9.00NBR     SPA-6498
P271891001 (Stock Item) 189.50225.008.80NBR     SPA-988
P27196CG01196.50220.706/8PU     PPA-107
P272000901200.00235.008NBR     SPA-9565
P272040801204.00243.0010/13NBR     SPA-10344
P272060801206.00242.008.30/10.30NBR     SPA-10295
P27206CG01206.50230.007.50/9PU     PPA-108
P272070801207.00246.0010/13NBR     SPA-10343
P272131001213.00250.009NBR     SPA-2769
P272130901 (Stock Item) 213.00250.009NBR     SPA-8558
P272131002213.00252.008NBR     SPA-7296
P272220801222.00258.008.30/10.30NBR     SPA-10297
P272300801230.00255.009.00NBR     SPA-320
P272310801231.00258.006.00NBR     SPA-13089
P272310802231.00258.009.00NBR     SPA-167
P272340901234.00270.0010.00/12.00NBR     SPA-343
P272360801236.50273.008.50/11.00NBR     SPA-13189
P272520801252.00300.0010/12.50NBR     SPA-12692
P272580901258.00300.0010/13.50NBR     SPA-9649
P272601001260.00300.009/12NBR     SPA-8305
P272641001264.00300.0010NBR     SPA-8247
P272650901265.00300.0010.00NBR     SUM-110
P272700903270.00300.0010/13.10NBR     SPA-8603
P272700901270.00305.0010.3/13NBR     SPA-8475
P272931002293.00334.509.00/12.00NBR     SUM-171
P272930801293.00335.0011.00NBR     SPA-181
P273080801308.00350.0010.00/13.00NBR     SUM-143
P273130901313.00355.0010/13.50NBR     SPA-9648
P273151001315.00355.0012NBR     SPA-8245
P273600901360.40405.409.00/12.00NBR     SPA-12199
P274376201437.80468.006/11.50FKM     SPA-11604




For customised items please Click here
