Profile : Piston Seals


Spareage : P24

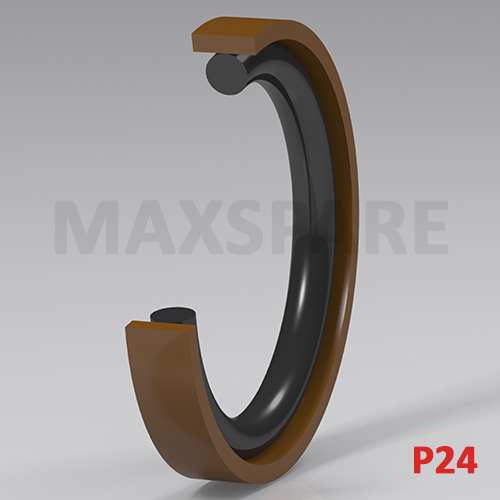

P24 Assembly

Details :
The P24 is a combination of composite PTFE sealing element with an o ring energizer. It is designed for low friction pneumatic applications with small installation space, widely use in control cylinders and high-speed cylinders etc.
MATERIAL
  • Pneumatic Cylinders.
  • Pneumatic Valves.
  • Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C (NBR)
: -40° C to + 220° C (FKM)
Pressure : 16 Bar
Speed : 4.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Sealing Ring : Carbon Filled PTFE.O Ring : Nitrile Rubber 70/75 Shore A.: FKM Rubber 70/75 Shore A.
FEATURES
  • Assembly on one-piece piston.
  • Short assembled length.
  • Minimal break-out and dynamic slide friction, no stick-slip, steady movement at low velocities.
  • Low wear.
  • High extrusion & temperature resistance (as per material selected).

Manufactured by: Max Spare Limited
Product ID: /details?id=47&name=p24


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P2400870018.0012.002.20NBR/BFT     PTD-139
P2400870028.8013.003NBR/BFT     PTD-148
P2401111.9020.003NBR/BFT     PTD-124
P24012700112.0020.003NBR/BFT     PTD-117
P24012730112.2516.452.10CAT     PTD-121
P24012080212.9519.052.61PU     CS-1991
P24014080114.0020.002.85NBR/BFT     PTD-160
P24014700114.5020.003.20NBR/BFT     PTD-118
P24015080215.0020.003.50NBR/BFT     PTD-181
P24016700316.0020.502.50NBR/BFT     PTD-156
P24016700216.0021.001.90NBR/BFT     PTD-151
P24016700416.5021.002.50NBR/BFT     PTD-157
P24017080217.5022.003.60NBR/BFT     PTD-115
P24018730118.5022.703CAT     PTD-165
P24018080118.8025.004.80NBR/BFT     PTD-107
P24020080420.0025.003.40CAT     PTD-170
P24024080324.5028.001.80NBR/BFT     PTD-152
P24026700126.0031.502.20NBR/BFT     PTD-158
P24026640126.9033.503.80PTFE     PTD-187
P24028080128.8035.004.80NBR/BFT     PTD-116
P24031L50131.0036.002.00PU     PUB-490
P24032080332.5040.003.50CAT     PTD-179
P24034080134.0040.003.10NBR/BFT     PTD-101
P24034640134.1040.905FKM/BFT     PTD-153
P24036080236.0045.003PTFE     PTD-123
P24037690137.0045.003.70PTFE     PTD-128
P24037700237.5050.005.60NBR/BFT     PTD-163
P24038730138.0050.005.90CAT     PTD-127
P24039640139.6049.506.30PTFE     PTD-186
P24040080140.5048.003.80CAT     PTD-134
P24040080240.5048.003.80NBR/BFT     PTD-191
P24040640140.8050.803.20FKM/BFT     PTD-172
P24042640142.7044.343.85CAT     PTD-119
P24044080144.7053.973.50PU     CS-1990
P24047700147.5055.003NBR/BFT     PTD-103
P24048740148.0050.505.80GRT     PTD-138
P24048080348.0063.406.30NBR/BFT     PTD-140
P24049080249.0055.003CAT     PTD-113
P24050080550.0063.003.80NBR/BFT     PTD-132
P24052L50152.0057.002.00PU     PUC-383
P24053700153.5063.003.20FKM/BFT     PTD-122
P24054080154.0060.003CAT     PTD-112
P24058700158.0063.004NBR/BFT     PTD-147
P2406180361.0070.004.90NBR/BFT     PTD-109
P24065690165.0075.003PTFE     PTD-144
P24065080165.0080.0010NBR/BFT     PTD-126
P24066730166.0080.006.30CAT     PTD-104
P24067080167.5080.005.60NBR/BFT     PTD-114
P24072640172.0082.003.20FKM/BFT     PTD-171
P24073080173.6089.106.30NBR/BFT     PTD-141
P24075690175.0090.004.70PTFE     PTD-146
P24079090179.3788.9011.09NBR     CS-1532
P24080080180.00100.0010NBR/BFT     PTD-120
P24087700187.50100.005.60NBR/BFT     PTD-137
P24089690189.60100.007PTFE     PTD-180
P24090690190.00102.005.30PTFE     PTD-188
P24094080194.30115.308.10NBR/BFT     PTD-142
P24095080195.00110.007.55NBR/BFT     PTD-183
P241020801102.50115.005.60NBR/BFT     PTD-130
P241040901104.77114.3011.09NBR     CS-1535
P241050802105.00115.007PTFE     PTD-167
P241050801105.00120.007.55NBR/BFT     PTD-110
P241076901107.00122.004.60PTFE     PTD-145
P241126402112.00127.0011FKM     CS-3114
P241120801112.50125.005.60NBR/BFT     PTD-102
P241126401112.50125.005.60FKM/BFT     PTD-133
P241120802112.50125.005.60CAT     PTD-168
P24114802114.50127.005.60NBR/BFT     PTD-175
P241166901116.30130.009.50NBR/PTFE     PTD-106
P241167001116.30130.009.50PTFE     PTD-125
P241167002116.30130.009.50NBR/BFT     PTD-176
P241176401117.00127.003.20FKM/BFT     PTD-173
P241200801120.20141.208.10NBR/BFT     PTD-143
P241236901123.50138.009PTFE     PTD-159
P241270901127.00139.7014.98NBR     CS-1534
P241350801135.00150.007.50NBR/BFT     PTD-129
P2413506401135.00150.007.50FKM/BFT     PTD-164
P241350802135.00150.007.55NBR/BFT     PTD-196
P241397701139.70152.4010.30SILICON     PTD-182
P241470801147.80160.009NBR/BFT     PTD-194
P241520901152.40165.1014.98NBR     CS-1533
P241557001155.00170.0010NBR/BFT     PTD-131
P241567001156.60160.607.40NBR/BFT     PTD-174
P241587001158.00172.009FKM/BFT     PTD-111
P241587002158.27172.009.50NBR/BFT     PTD-177
P241790801179.00200.008.10NBR/BFT     PTD-195
P241800801180.00200.008.10NBR/BFT     PTD-162
P2418270001182.00200.007.50NBR/BFT     PTD-105
P241886401188.20203.207.55FKM/BFT     PTD-108
P241916901191.30203.2012.50PTFE     PTD-184
P242056901205.00220.007.30PTFE     PTD-193
P242050804205.00220.007.55CAT     PTD-169
P242157001215.00228.003.60FKM/BFT     PTD-155
P242167001216.00228.003.60FKM/BFT     PTD-154
P242250801225.00240.007.55NBR/BFT     PTD-149
P242300801230.00242.505.30UHMPWE     PTD-150
P242416901241.30254.0012.70PTFE     PTD-166
P24241E301241.30254.0012.70BFT     PTD-185
P242500801250.00265.007.60GRT     PTD-135
P242750801275.00290.007.55GRT     PTD-136
P242926901292.10304.8012.70PTFE     PTD-178
P243440801344.50365.007.75GRT     PTD-161
P243750801375.50400.008.10NBR/BFT     PTD-189
P243950801395.50420.008.10NBR/BFT     PTD-190
P244410801441.20457.208NBR/BFT     PTD-192




For customised items please Click here
