Max Spare : P13

Profile : Piston Seals

Details :

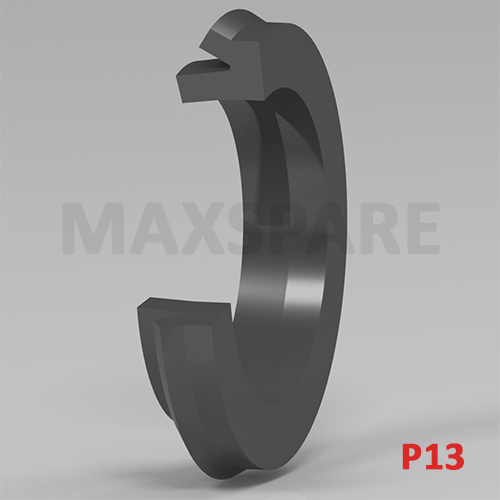

P13 is a single acting seal with U-shaped cross-section specially developed for use in pneumatic applications. Its asymmetric profile with long sealing lip guarantees a secure seat in the grooves. The special lip design for pneumatic application to maintain lubricating film and minimize friction.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	12 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.

FEATURES

Compact design.
Long service life.
Easy installation.
Low friction.
Minimise friction.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P130046401	4.00	8.00	2.7	FKM	SUA-1440
P130044302	4.76	11.11	3.94	SILICON	SUA-1226
P130051003	5.00	10.00	3.50	NBR	SUA-2354
P130051002	5.00	17.00	10	NBR	SUA-1335
P130061004	6.00	12.00	4	NBR	SUA-1578
P130060801	6.00	14.00	5.50	NBR	SUA-2794
P130071002	7.15	10.31	2	NBR	SUA-1745
P130071003	7.50	15.00	4.00	NBR	SUA-2630
P130086601	8.00	12.00	3	FKM	SUA-887
P130084301	8.00	14.00	5.60	SILICON	SUA-2798
P130091001	9.50	15.60	3.50	NBR	SUA-2739
P130101002	10.00	18.00	4.50	NBR	SUA-2327
P130106401	10.71	15.87	2.5	FKM	SUA-1441
P130110801	11.00	21.00	4	NBR	SUA-1741
P130114101	11.50	17.84	4.6	SILICON	SUA-1142
P130121003	12.00	18.00	4.50	NBR	SUA-1929
P130120901	12.00	19.00	4.80	NBR	SUA-2772
P130129901	12.00	22.00	4.30	SB	SUA-2669
P130120803	12.40	23.00	6.00	NBR	SUA-2365
P130121004	12.70	19.05	4.60	NBR	SUA-1939
P130121005	12.80	18.00	4.00	NBR	SUA-2337
P130130901	13.00	21.50	6.00	NBR	SUA-724
P130149901	14.00	22.00	4.35	SB	SUA-2668
P130141103	14.00	22.00	5.50	NBR	SUA-1298
P130151101	15.60	24.00	5	NBR	SUA-1180
P130160901	16.00	23.00	3	NBR	SUA-1947
P13016U201	16.00	26.00	6.40	FKM	SUB-4596
P130171003	17.00	25.00	4.30	NBR	SUA-1811
P13017O301	17.00	25.00	5.5	NBR	SUA-1133
P130171005	17.00	25.00	5.50	NBR	SUA-755
P130171004	17.00	27.00	7.00	NBR	SUB-2130
P13018R101	18.00	23.00	3.00	FSL	SUA-2563
P130181003	18.00	24.00	5.50	NBR	SUA-1703
P130181104	18.00	30.00	8.00	NBR	SUB-3837
P130190902	19.00	25.00	5	NBR	SUA-2051
P130190804	19.05	25.40	5.00	NBR	SUB-2401
P130191001	19.05	26.97	5.80	NBR	SUB-2763
P130196601	19.05	26.97	5.80	FKM	SUB-3477
P130190806	19.30	32.00	6.80	NBR	SUB-3048
P130200901	20.00	28.00	5	NBR	SUB-3238
P130201002	20.00	28.00	5.5	NBR	SUB-2374
P130201004	20.00	28.00	6	NBR	SUB-2785
P13020U401	20.00	29.00	4.40	EPDM	SUB-4629
P130201003	20.00	30.00	8	NBR	SUB-1186
P130201005	20.00	31.00	6.40	NBR	SUB-2845
P130200802	20.00	32.00	6.50	NBR	SUB-3456
P130216601	21.75	32.00	5.45	FKM	SUB-3096
P130221002	22.00	30.00	5.50	NBR	SUB-1561
P130226701	22.00	32.00	6.80	FKM	SUB-2241
P130220901	22.00	32.00	7.00	NBR	SUB-1463
P130220701	22.00	35.00	6.25	NBR	SUB-1624
P130230901	23.50	31.75	6	NBR	SUB-2758
P130236701	23.83	31.75	5.50	FKM	SUB-3266
P130241005	24.00	30.50	6.20	NBR	SUB-4248
P130246603	24.00	32.00	5.30	FKM	SUB-2899
P130246604	24.00	32.00	5.30	FKM	SUB-2983
P13024L501	24.00	32.00	5.40	PU	PUB-1292
P130241004.	24.00	32.00	5.40	NBR	SUB-3900
P130246601	24.00	32.00	5.50	FKM	SUB-2197
P130246701	24.00	32.00	5.50	FKM	SUB-3315
P130240803	24.00	32.00	5.50	NBR	SUB-4020
P130241007	24.00	32.00	5.70	NBR	SUB-4830
P130241101	24.00	32.00	6.30	NBR	SUB-3118
P130246602	24.00	32.00	6.50	FKM	SUB-119
P130241004	24.00	32.00	6.50	NBR	SUB-2980
P130241002	24.00	32.00	7	NBR	SUB-1381
P130241102	24.00	36.00	9.00	NBR	SUB-4356
P130240902	24.30	31.75	6	NBR	SUB-2760
P130240903	24.30	37.00	7.90	NBR	SUB-1454
P130251005	25.00	32.00	6.30	NBR	SUB-3804
P130251007	25.00	33.00	6.00	NBR	SUB-1445
P130250902	25.00	35.00	5.80	NBR	SUB-2777
P130250803	25.00	35.00	6	NBR	SUB-2872
P130251002	25.00	35.00	6.00	NBR	SUB-124
P130256701	25.00	35.00	6.5	FKM	SUB-2084
P130250901	25.00	35.00	6.50	NBR	SUB-2608
P130251008	25.00	35.00	7.00	NBR	SUB-1560
P130256601	25.00	35.00	7.00	FKM	SUB-4453
P130251006	25.00	35.00	8.70	NBR	SUB-4521
P130250804	25.00	38.00	6.80	NBR	SUB-3047
P130251003	25.00	40.00	9	NBR	SUB-3250
P130260901	26.60	38.30	10	NBR	SUB-3240
P130270901	27.00	35.00	4.80	NBR	SUB-3455
P130280901	28.00	37.00	6.50	NBR	SUB-3237
P130281004	28.00	38.00	7	NBR	SUB-3046
P130281005	28.00	40.00	8	NBR	SUB-3247
P130280803	28.00	40.00	9.00	NBR	SUB-4693
P130290901	29.00	37.20	3.50	NBR	SUB-3239
P130290902	29.10	45.00	9.50	NBR	SUB-1455
P130306604	30.00	35.00	5	FKM	SUB-1529
P130301007	30.00	37.00	6.00	NBR	SUB-4236
P130301006	30.00	38.00	6	NBR	SUB-1541
P130300803	30.00	40.00	4.5/7.50	NBR	SUB-3091
P130306602	30.00	40.00	7	FKM	SUB-1730
P130301005	30.00	40.00	7	NBR	SUB-1912
P130306502	30.00	40.00	7.00	FKM	SUB-3902
P130300903	30.30	43.00	9.52	NBR	SUB-219
P130326601	32.00	40.00	6.2	FKM	SUB-1528
P130326603	32.00	40.00	7.50	FKM	SUB-3304
P130326602	32.00	45.00	6.50	FKM	SUB-2185
P130321006	32.00	45.00	6.50	NBR	SUB-2773
P130331102	33.00	43.00	7.00	NBR	SUB-4861
P130341101	34.92	42.20	5.40/6	NBR	SUB-3754
P130350901	35.00	41.00	4.20	NBR	SUB-3454
P130351002	35.00	45.00	7	NBR	SUB-1965
P130355901	35.00	45.00	7.00	PU	PUB-348
P130351003	35.00	45.00	7.00	NBR	SUB-1564
P130350801	35.00	47.00	6.70	NBR	SUB-2968
P130360902	36.00	46.00	7.00	NBR	SUB-4724
P130361101	36.00	50.00	10	NBR	SUB-597
P130360803	36.00	50.00	7	NBR	SUB-3049
P130371004	37.00	45.00	6.00	NBR	SUB-4714
P130376401	37.40	45.50	9.90	FKM	SUB-1685
P130371003	37.90	50.00	6.00	NBR	SUB-4681
P13038T501	38.00	48.00	7	EPDM	SUB-3599
P130381002	38.00	48.00	7.00	NBR	SUB-2268
P130381102	38.00	50.00	6	NBR	SUB-1375
P130386602	38.00	50.00	6.50	FKM	SUB-2184
P130380802	38.00	52.00	7	NBR	SUC-2052
P130380901	38.00	52.00	8.50	NBR	SUC-1920
P130381201	38.00	55.00	9.70	NBR	SUC-2116
P130381103	38.10	50.80	6.00	NBR	SUC-1077
P130391001	39.70	46.00	4.50	NBR	SUB-2951
P130400801	40.00	46.00	5.10	NBR	SUB-2687
P130400901	40.00	48.00	5.50	NBR	SUB-4195
P130400802	40.00	50.00	4.5/7	NBR	SUB-3080
P130406601	40.00	50.00	7	FKM	SUB-1362
P130401002	40.00	50.00	7	NBR	SUB-2814
P13040CF01	40.00	53.50	7	PU	PUC-1247
P130401003	40.50	50.80	7.00	NBR	SUC-2843
P130410901	41.00	52.00	7.2	NBR	SUC-1146
P130426501	42.00	50.00	3.25	FKM	SUB-4287
P130446601	44.00	58.40	5.50/7.00	FKM	SUC-1004
P130440901	44.45	65.87	8.30	NBR	SUC-2517
P130451001	45.00	55.00	7	NBR	SUC-1585
P130471001	47.00	60.00	6.50	NBR	SUC-2932
P130471002	47.63	60.32	6.30	NBR	SUC-235
P130481001	48.00	56.00	6.30	NBR	SUC-2999
P130481102	48.00	60.00	9	NBR	SUC-2530
P130506401	50.00	59.00	5.5/7	FKM	SUC-1127
P130500901	50.00	60.00	4.70	NBR	SUC-2308
P130506402	50.00	60.00	5.50/7.00	FKM	SUC-1913
P130501002	50.00	60.00	7	NBR	SUC-1516
P130501003	50.00	60.00	8.00	NBR	SUC-3156
P130500802	50.00	65.00	10.80	NBR	SUC-2101
P130500902	50.80	66.67	8.89	NBR	SUC-2653
P130511101	51.00	63.00	14.00	NBR	SUC-3038
P130526601	52.00	62.00	6.80	FKM	SUC-1812
P130530901	53.00	63.00	4	NBR	SUC-2179
P130531103	53.00	63.00	4.20	NBR	SUC-1866
P130536601	53.00	63.00	7	FKM	SUC-1240
P130531003	53.00	63.00	7.00	NBR	SUC-2726
P130530902	53.97	69.85	7.92	NBR	SUC-2903
P130531104	53.97	69.85	9.30	NBR	SUC-1875
P130551003	55.90	69.90	7.00	NBR	SUC-2602
P130566601	56.00	68.00	11.80	FKM	SUC-2358
P130560801	56.00	75.00	11	NBR	SUC-2102
P130570801	57.00	70.00	8.40	NBR	SUC-3148
P130580801	58.00	76.00	10.50	NBR	SUD-1782
P130581001	58.72	76.20	13.00	NBR	SUD-2046
P130600901	60.32	76.20	7.93	NBR	SUD-1445
P130646602	64.00	80.00	8.50	FKM	SUD-1632
P130651001	65.60	82.60	8.50	NBR	SUD-1982
P130661101	66.67	82.55	10.80	NBR	SUD-1429
P130686501	68.00	80.00	11.80	FKM	SUD-1713
P130681002	68.00	80.00	8.5	NBR	SUD-1073
P130686602	68.00	80.00	8.50	FKM	SUD-697
P130700802	70.00	74.00	2.50	NBR	SUC-1945
P130708901	70.00	80.00	12	PU	PUD-733
P130701002	70.00	80.00	5	NBR	SUD-1591
P130701003	70.00	80.00	6.60	NBR	SUD-2063
P13070L501	70.00	80.00	7.00	PU	PUD-185
P130706601	70.50	78.70	6.80	FKM	SUD-1503
P130706602	70.64	78.58	8	FKM	SUD-1524
P130756601	75.00	87.00	10.20	FKM	SUD-2252
P130760901	76.00	82.00	3	NBR	SUD-1682
P130786601	78.00	90.00	8.50	FKM	SUD-1735
P130781002	78.30	95.30	8.50	NBR	SUD-1981
P130791101	79.37	95.23	10.80	NBR	SUD-1430
P130806602	80.00	100.00	12.00	FKM	SUD-2374
P130826601	82.00	100.00	13	FKM	SUD-1729
P130821001	82.55	101.60	13.9	NBR	SUE-626
P130820901	82.55	101.60	7.93	NBR	SUE-1000
P130831101	83.00	100.00	8.00	NBR	SUD-874
P130876602	83.00	101.00	9	FKM	SUE-970
P130851001	85.00	100.00	8.00	NBR	SUD-1312
P130851002	85.00	100.00	9.00	NBR	SUD-2164
P130810801	85.00	105.00	12	NBR	SUE-1192
P130856601	85.00	105.00	9.5/12	FKM	SUE-1176
P130866601	86.80	104.00	13	FKM	SUE-1038
P130871101	87.00	100.00	12.00	NBR	SUD-2185
P130876601	87.00	100.00	8.7	FKM	SUD-978
P130876603	87.00	105.00	12.00	FKM	SUE-1539
P130870901	87.00	105.00	12.30	NBR	SUE-999
P13088L401	88.00	100.00	12	PU	PUD-728
P130881001	88.00	100.00	14.50	NBR	SUD-1183
P130886601	88.00	100.00	8.50	FKM	SUD-1038
P130886602	88.00	100.00	8.50	FKM	SUD-629
P130881002	88.90	101.40	6.70	NBR	SUE-1061
P130886603	88.90	101.60	6.7	FKM	SUE-738
P130880801	88.90	101.60	9.4	NBR	SUE-613
P130901001	90.20	107.20	8.50	NBR	SUE-1338
P130911101	91.28	107.15	10.80	NBR	SUE-995
P1310064	100.00	115.00	8	FKM	SUE-1039
P131000901	100.00	120.00	15.00	NBR	SUE-1445
P131010801	101.90	119.90	9	NBR	SUE-1222
P131011001	101.90	119.90	9.00	NBR	SUE-1337
P131031101	103.58	119.44	12.30	NBR	SUE-991
P131040801	104.00	120.00	12.30	NBR	SUE-1356
P131040901	104.00	125.00	8	NBR	SUE-934
P131040802	104.00	130.00	16.00	NBR	SUF-1048
P131053301	105.00	120.00	10	EPDM	SUE-1197
P131051101	105.00	125.00	8	NBR	SUE-236
P131051001	105.86	127.00	13.75	NBR	SUF-774
P131066601	106.00	126.50	11.50	FKM	SUF-704
P131056301	108.00	120.00	9.80	FKM	SUE-1443
P131101001	110.00	125.00	10	NBR	SUE-1224
P131106601	110.00	125.00	10	FKM	SUE-744
P131101002	110.00	125.00	9	NBR	SUE-1011
P131106602	110.00	125.00	9.3	FKM	SUE-610
P131141101	114.00	130.00	9.50	NBR	SUF-952
P131141002	114.30	127.00	9.50	NBR	SUF-202
P131151001	115.00	127.00	6.3	NBR	SUF-561
P131156602	115.00	135.00	10.00	FKM	SUF-945
P131150801	115.40	133.40	9	NBR	SUF-856
P131201002	120.00	140.00	10.00	NBR	SUF-444
P131280801	128.00	146.00	9	NBR	SUF-855
P131281005	128.00	151.00	19	NBR	SUG-629
P131301001	130.81	152.40	9.20	NBR	SUG-345
P131321001	132.00	151.00	9.70	NBR	SUG-675
P131356601	135.00	150.00	10	FKM	SUF-407
P131351001	135.00	150.00	10.00	NBR	SUF-590
P131351002	135.00	150.00	10.5	NBR	SUF-485
P131356502	135.00	150.00	11.00	FKM	SUF-1111
P131356701	135.00	150.00	9.50	FKM	SUF-103
P131366601	136.00	150.00	18.50	FKM	SUF-1022
P131376601	137.80	152.40	11.00	FKM	SUG-412
P131386601	138.00	150.00	11.00	FKM	SUF-1125
P131396601	139.00	160.00	14.50	FKM	SUG-461
P131401001	140.00	160.00	8	NBR	SUG-507
P131441001	144.00	160.00	11.20	NBR	SUG-857
P131456601	145.00	160.00	10	FKM	SUG-471
P131451001	145.00	160.00	11	NBR	SUG-528
P131450801	145.10	165.10	10	NBR	SUG-731
P131453201	145.41	162.90	8.38	EPDM	SUG-256
P131450802	145.41	162.90	8.38	NBR	SUG-905
P131471001	147.50	160.00	9.80	NBR	SUG-144
P131531001	153.00	178.00	19.50	NBR	SUH-409
P131601001	160.00	200.00	23.50	NBR	SUH-428
P131651101	165.10	203.20	19	NBR	SUJ-380
P131700801	170.50	190.50	10	NBR	SUH-430
P131751101	175.00	200.00	16	NBR	SUH-441
P131801003	180.00	200.00	12	NBR	SUH-366
P131806601	180.00	200.00	14	FKM	SUH-272
P131801005	180.00	200.00	14.00	NBR	SUH-283
P131801006	180.00	200.00	8.50	NBR	SUH-633
P131826701	182.00	206.00	11	FKM	SUJ-101
P131841001	184.00	200.00	7.60	NBR	SUH-404
P131851001	185.00	200.00	16.00	NBR	SUH-495
P131856601	185.00	200.00	9.50	FKM	SUH-588
P131930801	193.90	215.90	11	NBR	SUJ-355
P132190801	219.30	241.30	11	NBR	SUK-284
P132303401	230.00	250.00	14	EPDM	SUK-230
P132306603	230.00	250.00	14.00	FKM	SUK-316
P132306604	230.00	250.00	15.00	FKM	SUK-323
P132306605	230.00	250.00	17.00	FKM	SUK-105
P132356701	235.00	250.00	16.00	FKM	SUK-349
P132366601	236.00	260.00	14.20	FKM	SUM-924
P132801001	280.00	300.00	15	NBR	SUM-586
P132800901	280.00	300.00	15.00	NBR	SUM-186
P132806601	280.00	300.00	15.00	FKM	SUM-457
P132801101	280.00	305.00	16	NBR	SUM-633
P132956601	295.00	320.00	10/17	FKM	SUM-486
P132951101	295.00	320.00	17.00	NBR	SUM-206
P132950901	295.00	350.00	30	NBR	SUM-643
P133156601	315.00	340.00	12.70	FKM	SUM-906
P133206601	320.00	350.00	20	FKM	SUM-458
P13344K301	344.00	375.43	11.81	HYT	PUM-133
P134401001	440.00	460.00	12.00	NBR	SUVG-755
P135001001	500.00	530.00	24	NBR	SUVG-590

For customised items please Click here
