Profile : Piston Seals

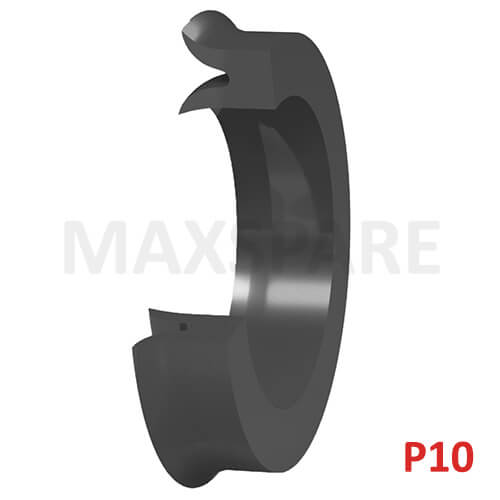

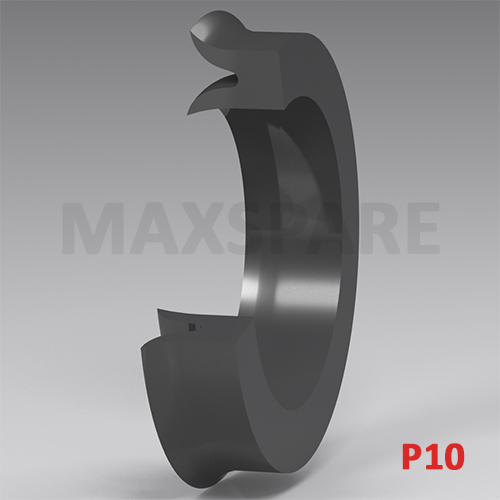

Spareage : P10

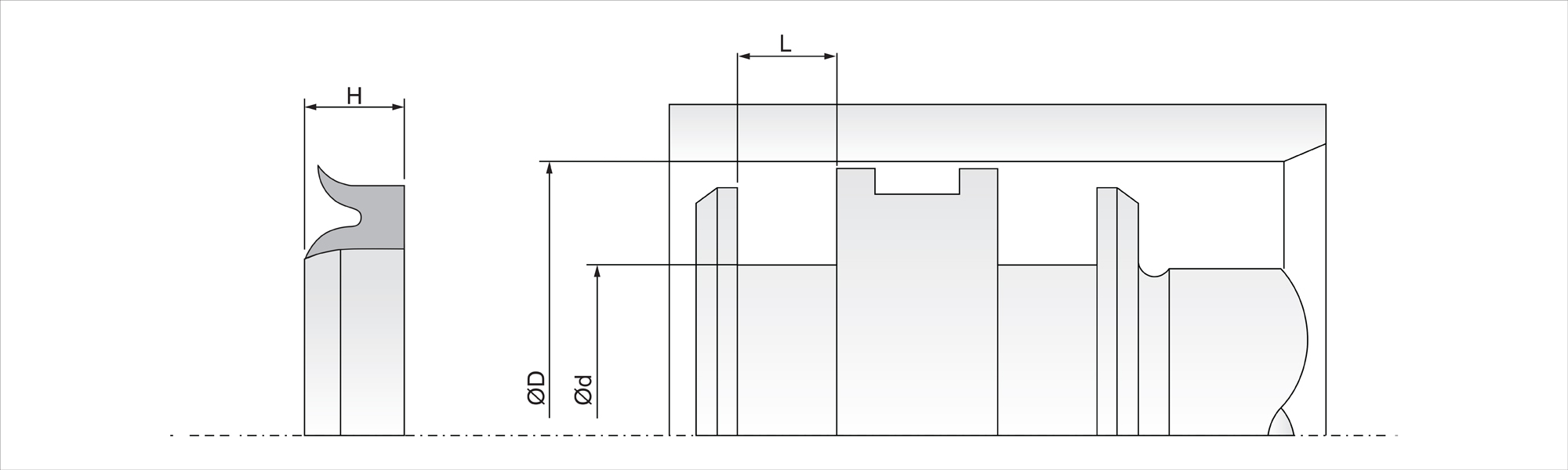

P10 Assembly

Details :
P10 is a single acting seal with U-shaped cross-section specially developed for use in pneumatic applications. Its asymmetric profile with long sealing lip guarantees a secure seat in the grooves. The special lip design for pneumatic application to maintain lubricating film and minimize friction.
MATERIAL
  • Pneumatic Cylinders.
  • Pneumatic Valves.
  • Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C (NBR)
: -40° C to + 220° C (FKM)
Pressure : 12 Bar
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.
FEATURES
  • Compact design.
  • Long service life.
  • Easy installation.
  • Low friction.
  • Minimise friction.

Manufactured by: Max Spare Limited
Product ID: /details?id=429&name=p10


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P100090019.0018.006.5NBR     SUA-1400
P1000907019.0024.007.9NBR     SUA-1402
P10012650112.7019.053.17FKM     SUA-2409
P10013070113.0022.005.8NBR     SUA-1401
P10013100113.4926.226NBR     SUB-2614
P10014100114.0030.007.00NBR     SUB-2347
P100150060115.0025.006.50NBR     SUA-1488
P10019100519.0525.403.17NBR     SUB-4228
P10019650219.0528.576.35FKM     SUB-3664
P10020080120.0030.006.40NBR     SUB-3350
P10020640120.0031.006.80FKM     SUB-2685
P10020C70120.0040.0010FKM     SUB-4241
P10020090120.5030.006.20NBR     SUB-4050
P10020100120.5030.006.35NBR     SUB-559
P10022090222.0030.005.50NBR     SUB-4067
P10022090122.2234.936.35NBR     SUB-1647
P10024090224.0034.006.10NBR     SUB-3751
P10025100125.4038.106.35NBR     SUB-4257
P10026110126.6738.106.00NBR     SUB-4407
P10027L40127.0038.5010PU     PUB-959
P10027640127.3040.006.35FKM     SUB-3922
P10032100132.0050.808.1/9.70NBR     SUC-785
P10035100235.1051.009.50NBR     SUC-2351
P10036640136.8050.805.5/6.0FKM     SUC-2772
P10040090140.0050.007NBR     SUB-1667
P10040100140.0050.007NBR     SUB-3610
P10040640140.0050.008FKM     SUB-2653
P10040080140.0050.008NBR     SUB-3298
P10041090141.2753.979.52NBR     SUC-3140
P10044090144.4565.878.3FKM     SUC-1743
P10046110146.3064.008.85NBR     SUC-2409
P10047090147.6260.326.35NBR     SUC-1148
P10048100148.0063.509.50NBR     SUC-1862
P10048090148.3061.006.10NBR     SUC-2727
P10050100250.8063.506.35NBR     SUC-2833
P10050100350.8065.008.30NBR     SUC-2942
P10051100151.4070.009NBR     SUC-1454
P10055080155.0070.0010.4NBR     SUC-1654
P10057100157.0070.007.70NBR     SUC-837
P10060660260.0080.0010FKM     SUD-1497
P10061100161.0076.008NBR     SUD-394
P10063100163.5082.5512.50NBR     SUD-1389
P10068650168.0080.008.5FKM     SUD-890
P10076100176.2095.2512.50NBR     SUD-1388
P10078660178.0090.008.50FKM     SUD-1775
P10083080583.00100.008.3NBR     SUD-1164
P10088100287.00100.008.6NBR     SUD-1061
P10088100388.90110.0015.8NBR     SUE-829
P101106701110.00135.0015.00FKM     SUF-1024
P101146601114.30127.006FKM     SUF-599
P101141001114.30137.0017NBR     SUF-574
P101331001133.00159.0018NBR     SUG-583
P101411001141.30167.0019NBR     SUG-510
P101451001145.50176.5016.00NBR     SUH-393
P101631001163.50201.0019.00NBR     SUJ-474
P101686601168.28203.2018.5FKM     SUJ-259
P101861001186.00244.0023NBR     SUK-258
P103066601306.00340.0014FKM     SUM-593
P103120901312.00363.0019.00NBR     SUM-600
P104430901443.50458.506.30NBR     SUVG-150
P104686501468.00500.0017.50FKM     SUVG-727
P104970901497.00512.006.30NBR     SUVG-155
P106016501601.20619.806.30FKM     SUVG-356
P107428301742.95774.7016.89NBR/FABRIC     SUVG-272
