S10: Pneumatic Cushion Seals Manufacturers, Suppliers, Exporters

Max Spare : S10

Profile : Cushion Seals

Details :

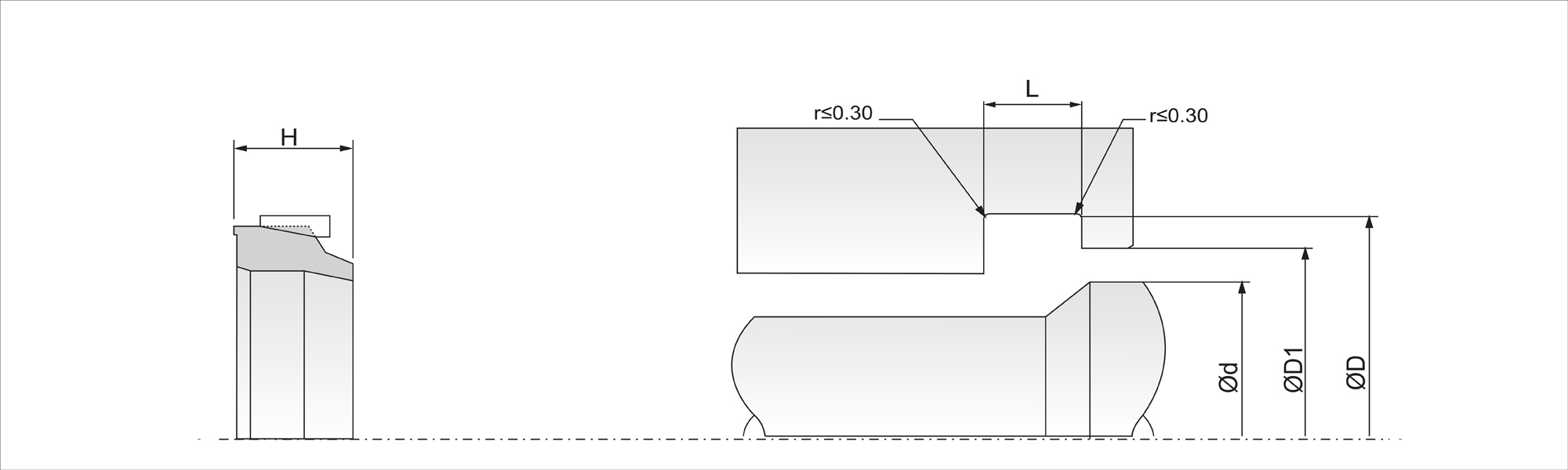

S10 is a cushion seal specially designed to protect damping of piston head on gland surface where high pressure peaks occur. It is also called damping seal in pneumatic application. This profile also allows pressure to pass back into the system preventing a pressure trap between the rod seal and the buffer seal. It is an excellent pressure buffer option in heavy-duty applications and offers extended sealing system life and performance.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	16 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Polyurethane 92 Shore A.FKM Rubber 80/85 Shore A.Nitrile Rubber 80/85 Shore A.

FEATURES

Optimum use of design related cushion.
High cushioning consistency due to automatic centering, even in the case of misalignment of the cushioning spear to the cylinder head.
Increased reliability due to two independent sealing (flexible sealing lips and axial sealing areas).
Suitable for use in lubricated as well as dry and oil-free air. (after initial lubrication during assembly).
Easy Installation.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
S010060801	6.00	14.00	4.25	NBR	SUA-2171
S10008L501	8.00	12.00	2.80/3.50	PU	PUA-911
S10012L401	12.00	18.00	4/5	PU	PPA-813
S100121001	12.00	18.00	4/5	NBR	SUA-1643
S10014CF01	14.00	21.00	6.50/8	PU	PUA-887
S10014L501	14.00	21.00	8	PU	PPA-379
S10014L502	14.00	22.00	5/6.50	PU	PUA-985
S10015Q201	15.00	19.00	2.80/3.10	PU	PPA-1578
S100151101	15.00	22.50	5.6/7.50	NBR	SUA-1362
S100165903	16.00	20.00	2.8/3.10	PU	PUA-189
S100165901	16.00	20.00	2.8/3.10	PU	PUA-975
S100166701	16.00	22.00	4.5/5.6	FKM	SUA-1222
S100166702	16.00	22.00	4.6/5.20	FKM	SUA-2150
S10016L402	16.00	22.00	5.5	PU	PPA-1243
S100161101	16.00	22.00	5.5	NBR	SUA-1504
S10016CF01	16.00	24.00	6.30/7.80	PU	PUA-886
S100166601	16.00	24.00	6.30/7.80	FKM	SUA-2577
S100161001	16.00	24.00	7.8	NBR	SPA-126
S10016L502	16.00	24.00	7.80	PU	PUA-585
S10016L501	16.00	24.00	8	PU	PPA-371
S100196601	19.84	36.51	4.50/6.35	FKM	SUB-2810
S10020L404	20.00	26.00	3.4/4	PU	PUB-1229
S100206706	20.00	26.00	3.40/4	FKM	SUB-4293
S100201112	20.00	26.50	3.70/6.00	NBR	SUB-324
S100201109	20.00	27.00	6.6/8.50	NBR	SUB-3182
S100206604	20.00	27.00	6/7.80	FKM	SUB-3246
S100201111	20.00	28.00	5.00/6.70	NBR	SUB-4575
S100206704	20.00	28.00	5.8/7.40	FKM	SUB-3591
S10020L502	20.00	28.00	6	PU	PUB-1273
S100206602	20.00	28.00	6	FKM	SUB-2620
S100203501	20.00	28.00	6.20/7.70	EPDM	SUB-4306
S100201003	20.00	28.00	6.20/7.70	NBR	SUB-4802
S10020L412	20.00	28.00	6.3/7.80	PU	PUB-1651
S10020L409	20.00	28.00	6.40/8	PU	PPA-2053
S10020L402	20.00	28.00	6.50/8	PU	PUB-1184
S100206705	20.00	28.00	6.50/8	FKM	SUB-3649
S100201107	20.00	28.00	6.50/8.00	NBR	SUB-2389
S10020L405	20.00	28.00	6/7.60	PU	PUB-1258
S10020L501	20.00	28.00	7.8	PU	PPA-420
S100206701	20.00	28.00	7.8	FKM	SUB-1733
S10020L406	20.00	28.00	7.80	PU	PUB-1280
S100201108	20.00	36.00	4.6/6.30	NBR	SUB-2756
S1002066702	20.00	36.00	6.2	FKM	SUB-1966
S100225901	22.00	30.00	6.30/7.80	PU	PUB-1749
S100226601	22.00	30.00	6/8	FKM	SUB-3736
S100241001	24.00	31.00	6.50/8	NBR	SUB-2546
S100246401	24.55	31.77	4.70	FKM	SUB-3941
S100256708	25.00	31.00	3.8/4.60	FKM	SUB-4656
S10025L502	25.00	32.00	4.2/5	PU	PPA-825
S10025L404	25.00	32.00	4.20/4.60	PU	PUB-1240
S100255901	25.00	32.00	4.5/8	PU	PUB-1867
S10025CF04	25.00	32.00	4.50/8.00	PU	PUB-758
S100251004	25.00	32.00	4.50/8.00	NBR	SUB-1514
S10025Q202	25.00	32.00	4/4.50	PU	PUB-1715
S100251107	25.00	32.00	5.50/8.00	NBR	SUB-1525
S10025L506	25.00	32.00	6.30/7.80	PU	PUB-2153
S100255902	25.00	33.00	4	PU	PUB-1904
S100256704	25.00	33.00	4.80/6.50	FKM	SUB-1076
S100251105	25.00	33.00	6	NBR	SUB-2619
S100253501	25.00	33.00	6.20/7.70	EPDM	SUB-4307
S100251003	25.00	33.00	6.20/7.80	NBR	SUB-1196
S10025L501	25.00	33.00	6.3/7.8	PU	PPA-424
S10025CF02	25.00	33.00	6.30/7.80	PU	PUB-1931
S100256604	25.00	33.00	6.30/7.80	FKM	SUB-4417
S100251106	25.00	33.00	6.6/8.50	NBR	SUB-3970
S100256603	25.00	33.00	6/8	FKM	SUB-3727
S10025L401	25.00	33.00	7.80	PU	PPA-1884
S100251001	25.00	33.00	7.80	NBR	SPA-5760
S100251104	25.00	33.00	7.80	NBR	SUB-2556
S100256701	25.00	33.00	7.80	FKM	SUB-2670
S10025CF01	25.00	35.00	6.30/7.80	PU	PUB-1894
S100250902	25.00	35.00	6.30/7.80	NBR	SUB-2804
S100256702	25.00	35.00	6.70/7.80	FKM	SUB-3851
S10025L403	25.00	35.00	6.70/8.00	PU	PUB-1183
S100250901	25.00	40.00	6/8	NBR	SPA-5281
S100256605	25.00	40.50	5.00/7.50	FKM	SUB-1379
S100271101	27.50	36.50	6.30/7.80	NBR	SUB-2937
S100281105	28.00	35.00	5.2/7.80	NBR	SUB-4286
S10028L402	28.00	35.00	6.2/8	PU	PUB-1593
S100281001	28.00	36.00	5.30/7.80	NBR	SUB-4026
S100281002	28.00	36.00	6.20/7.80	NBR	SUB-1200
S100285901	28.00	36.00	6.30/7.80	PU	PUB-1744
S100281101	28.00	36.00	6.7/8	NBR	SPA-106
S100286603	28.00	36.00	6.7/8	FKM	SPA-4639
S10028L401	28.00	36.00	6.70/8	PU	PUB-1179
S100286605	28.00	36.00	6/8	FKM	SUB-3726
S100281104	28.00	37.00	7/8.50	NBR	SUB-2712
S10028L403	28.00	38.00	6/8	PU	PUB-1644
S100286604	28.00	38.00	6/8	FKM	SUB-3270
S100291001	29.00	38.00	6.30/7.80	NBR	SUB-4747
S100306703	30.00	37.00	5.2/5.70	FKM	SUB-4657
S100301010	30.00	38.00	5.00/7.80	NBR	SUB-1512
S10030Q201	30.00	38.00	5.30/5.80	PU	PUB-162
S100301009	30.00	38.00	5.50/8.00	NBR	SUB-1515
S10030L406	30.00	38.00	5.60	PU	PUB-1103
S100301007	30.00	38.00	5.80/7.50	NBR	SUB-1248
S10030L404	30.00	38.00	5/7.8	PU	PPA-1194
S100306604	30.00	38.00	6.00/7.80	FKM	SUB-4357
S100301106	30.00	38.00	6.5/7.8	NBR	SUB-2017
S10030CF01	30.00	38.00	6.50/7.80	PU	PUB-1859
S10030L502	30.00	38.50	7.8	PU	PPA-680
S100301006	30.00	38.50	7.80	NBR	SUB-3850
S100301108	30.00	39.00	6/7.60	NBR	SPA-1396
S100305901	30.00	39.00	6/8	PU	PUB-1789
S10030CF03	30.00	39.10	6.5/8	PU	PUB-1937
S10030L509	30.00	39.50	6.50/8.00	PU	PUB-144
S100301105	30.00	40.00	5.60/6	NBR	SPA-129
S100301107	30.00	40.00	6	NBR	SPA-2001
S10030L407	30.00	40.00	6.00/7.80	PU	PUB-1216
S100301008	30.00	40.00	6.20/7.80	NBR	SUB-1207
S100306607	30.00	40.00	6.50/8.30	FKM	SUB-1393
S100305904	30.00	40.00	6.8/8.70	PU	PUB-2123
S100306603	30.00	40.00	6/7.80	FKM	SUB-2853
S10030L403	30.00	40.00	7.8	PU	PPA-1191
S100301104	30.00	40.00	7.8	NBR	SPA-1478
S10030L401	30.00	40.00	7.80	PU	PPA-419
S1003036602	30.00	40.00	7.80	FKM	SUB-2192
S10030L411	30.00	41.00	6.50/8.20	PU	PUB-1026
S10030L418	30.00	41.00	6.50/8.40	PU	PUB-2150
S100301111	30.00	41.00	7/8.70	NBR	SUB-4311
S10030L417	30.00	42.00	6.50/8.50	PU	PUB-2142
S100301004	30.00	42.00	6/8.50	NBR	SUB-3072
S100305906	30.30	39.30	4.00/5.00	PU	PUB-320
S100301110	30.48	38.10	6/7.50	NBR	SUB-3445
S100311001	31.50	40.00	5.00/7.00	NBR	SUB-1178
S100326601	32.00	40.00	6/7.80	FKM	SUB-3676
S100321001	32.00	41.00	5/7.50	NBR	SUB-2730
S100321003	32.00	42.00	5.50/7.80	NBR	SUB-1164
S100325901	32.00	42.00	6.30/7.80	PU	PUB-1750
S10032L502	32.00	42.00	7.80	PU	PUB-828
S100326701	32.00	42.00	7.80	FKM	SUB-3068
S100341001	34.00	43.00	6.50/8	NBR	SUB-2973
S100350901	35.00	44.00	5.30/7.30	NBR	SUB-2643
S10035L401	35.00	45.00	5.70/7.80	PU	PUB-1359
S100356602	35.00	45.00	5.70/7.80	FKM	SUB-2661
S10035L501	35.00	45.00	6.00/8.80	PU	PUB-452
S10035CF05	35.00	45.00	6.30/8	PU	PUB-1862
S100351003	35.00	45.00	6.30/8.00	NBR	SUB-4739
S100356601	35.00	45.00	6/8.80	FKM	SUB-2662
S100351002	35.00	45.00	6/8.80	NBR	SUB-4018
S10036L403	36.00	45.00	4.60/6.60	PU	PUB-1249
S100361103	36.00	45.00	6/7.80	NBR	SUB-3067
S10036L401	36.00	46.00	6.2/8	PU	PPA-795
S100366603	36.00	46.00	6.2/8	FKM	SUB-2732
S100361001	36.00	46.00	6.20/7.80	NBR	SUB-1202
S10037L501	37.00	46.00	6.50/8.00	PU	PUB-604
S10038L501	38.00	47.00	6.50	PU	PUB-1107
S100386701	38.00	47.00	6.50	FKM	SUB-4690
S100381101	38.00	48.00	6/8	NBR	SUB-3435
S100406605	40.00	48.00	6.50	FKM	SUB-2953
S100401004	40.00	48.00	6.50	NBR	SUB-4034
S100401104	40.00	48.00	7.00	NBR	SUB-2799
S100401007	40.00	50.00	5.60/7.50	NBR	SUB-1511
S100406603	40.00	50.00	5.60/7.50	FKM	SUB-2663
S100401105	40.00	50.00	5.8/7.80	NBR	SUB-3007
S100406608	40.00	50.00	6.00/6.30	FKM	SUB-638
S100401103	40.00	50.00	6.1	NBR	SPA-4140
S10040L501	40.00	50.00	6.3/7.80	PU	PPA-1107
S100401001	40.00	50.00	6.30/8.00	NBR	SUB-2788
S100401002	40.00	50.00	6/7.80	NBR	SUB-3336
S100401101	40.00	50.00	7.8	NBR	SPA-1477
S100406701	40.00	50.00	7.8	FKM	SUB-1732
S100401003	40.00	56.00	10.40	NBR	SUC-2260
S100406607	40.00	56.00	8.00	FKM	SUC-3093
S100401106	40.00	58.00	10.50	NBR	SPA-4344
S100406609	40.00	58.00	6.50/9.50	FKM	SUC-1190
S100406604	40.00	67.00	8/10	FKM	SUC-104
S100416501	41.40	59.00	5.50/7	FKM	SUC-1786
S100426601	42.00	52.00	3.50/5	FKM	SUC-2392
S100421001	42.00	60.00	5.50/7.00	NBR	SUC-3199
S100441103	44.00	56.00	6.50/8.00	NBR	SUC-1186
S10044L401	44.00	56.00	7.8	PU	PPA-1359
S100441102	44.30	57.00	7.80	NBR	SUC-2518
S100446701	44.45	57.15	7.80	FKM	SUC-3226
S100451001	45.00	54.00	6.60	NBR	SUC-2590
S100451103	45.00	55.00	4/7	NBR	SUC-2856
S100451102	45.00	55.00	5.80/7	NBR	SUC-1903
S10045L501	45.00	55.00	7.8	PU	PPA-819
S100453501	45.00	55.00	7.8	EPDM	SUC-1325
S100481101	48.00	56.00	8	NBR	SUC-1230
S100481002	48.00	60.00	6.00/8.00	NBR	SUC-915
S100481102	48.00	60.00	7/9	NBR	SUC-2402
S100480901	48.00	61.00	7/8.5	NBR	SUC-1734
S100480902	48.00	61.00	8.50	NBR	SUC-113
S100496602	49.00	59.00	7/8	FKM	SUC-2863
S100491001	49.00	60.00	6.7/8.00	NBR	SUC-2440
S100491101	49.00	60.00	7/8.50	NBR	SUC-2597
S100495901	49.00	60.00	8.50	PU	PUC-492
S100496601	49.00	60.00	8.50	FKM	SUC-1842
S100496701	49.53	67.31	5.8/7	FKM	SUC-1397
S100501107	50.00	60.00	10	NBR	SUC-2386
S10050L506	50.00	60.00	6.20/7.80	PU	PUC-303
S100501007	50.00	60.00	6.20/7.80	NBR	SUC-2770
S100501006	50.00	60.00	6.50/8.50	NBR	SUC-2771
S10050L505	50.00	60.00	7.00/9.50	PU	PUC-222
S10050L401	50.00	60.00	7.8	PU	PPA-953
S100501101	50.00	60.00	7.8	NBR	SPA-1909
S100506701.	50.00	60.00	7.80	FKM	SUC-1793
S100506401	50.00	60.00	7/8	FKM	SUC-2486
S10050L403	50.00	60.00	7/8.50	PU	PUC-1220
S100501003	50.00	60.00	7/8.50	NBR	SUC-1971
S100501011	50.00	62.00	6.00/8.00	NBR	SUC-778
S100506609	50.00	63.00	7.00/10.00	FKM	SUC-1145
S10050L402	50.00	63.00	8.20	PU	PUC-920
S100506605	50.00	63.00	8.20	FKM	SUC-2883
S100506702	50.00	67.00	10	FKM	SPA-792
S100506602	50.00	67.00	10	FKM	SUC-1894
S100506706	50.00	67.00	10.00	FKM	SUC-1801
S100501102	50.00	67.00	11	NBR	SPA-4549
S100506704	50.00	67.00	11	FKM	SUC-2368
S100501108	50.00	67.00	11.00	NBR	SUC-2917
S100506604	50.00	67.00	7.40/10	FKM	SUC-1952
S100501002	50.00	74.00	12.5	NBR	SUC-1372
S100501008	50.80	65.50	6/8	NBR	SUC-2850
S100506603	50.80	68.26	5/7.20	FKM	SUC-1941
S100521001	52.00	67.50	10.20	NBR	SUC-1072
S100546601	54.00	64.00	6.25/7.80	FKM	SUC-1847
S100786701	54.00	90.00	8	FKM	SPA-208
S100556601	55.00	68.00	6/9	FKM	SUC-1624
S100550901	55.00	68.00	7/9	NBR	SUC-105
S10055CF01	55.00	72.00	10/11	PU	PUC-1318
S10055L401	55.00	72.00	11	PU	PUC-890
S100561002	56.00	73.00	11.00	NBR	SUC-1125
S100566801	56.00	73.00	11.21	FKM	SUC-2103
S100576801	57.00	74.00	11	FKM	SUC-1396
S100576602	57.00	74.00	11	FKM	SUC-1893
S100571001	57.00	74.00	11	NBR	SUC-1933
S100576702	57.00	74.00	11	FKM	SUC-2369
S100576603	57.00	74.00	7.60/10	FKM	SUC-1953
S100576604	57.00	74.20	9/12.00	FKM	SUC-3259
S100586601	58.00	75.00	5.70/8.00	FKM	SUC-1008
S100606702	60.00	77.00	12.50	FKM	SUD-1406
S100606701	60.00	85.00	15	FKM	SUD-1151
S100656601	65.00	75.00	5/8	FKM	SUC-2690
S10070L501	70.00	85.00	12.50	PU	PUD-204
S100706702	70.00	85.00	12.50	FKM	SUD-1787
S100706701	70.00	87.00	12	FKM	SUD-1397
S100701101	70.00	87.00	12	NBR	SUD-1958
S10073L401	73.00	85.00	8	PU	PUD-766
S100746601	74.00	98.00	13/16	FKM	SUD-1614
S100786701	78.00	95.00	11	FKM	SPA-200
S100781001	78.00	95.00	11	NBR	SUD-1802
S100786701.	78.00	95.00	11	FKM	SUD-2047
S100786702	78.00	95.00	12.50	FKM	SUD-1409
S100826602	82.50	98.00	8.00/11	FKM	SUD-2289
S100826601	82.55	98.42	8	FKM	SUD-105
S100856601	85.00	95.00	5/8	FKM	SUD-2040
S100956601	95.00	110.00	12	FKM/BFT	SUE-1082
S101051001	105.00	115.00	5.80/7.50	NBR	SUE-1023

For customised items please Click here
