Profile : Wiper Seals


Spareage : W18

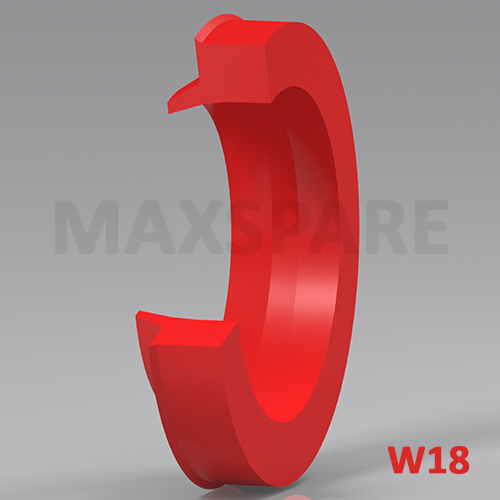

W18 Assembly

Details :
W18 is single acting rod wiper seal designed to prevent the ingress of contaminants in to the system where the risk of large accumulation of dirt on the rod like Earth moving equipments, Mining etc. These wipers are designed to fit in to closed grooves. It is made with Polyurethane material with offers high level of stiffness providing the wiper to remove dried mud from the rod.
MATERIAL
Polyurethane 95 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
  • Earth moving equipment, Industrial valves, Presses, Mining,
  • Support cylinders, Agricultural Machinery.
FEATURES
  • Good stability.
  • Good wiping performance.
  • Single acting seal.
  • Excellent wear resistance.
  • Suitable for closed grooves.
  • Long service life.

Manufactured by: Max Spare Limited
Product ID: /details?id=387&name=w18


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
W1800811018.0014.003/5.00NBR     WPS-1574
W18008L5018.0014.603.50/4.50PU     WPH-3056
W18010590110.0016.003.60/6.00PU     WPH-3127
W18010110110.0018.005/8.00NBR     WPS-1445
W18012110212.0016.003/4.50NBR     WPS-1573
W18012110312.0018.003.50/5.00NBR     WPS-1571
W18012110512.0020.005/7.00NBR     WPS-1440
W18012L50112.7019.053.17/4.74PU     WPH-1856
W18012110612.7019.053.18/4.76NBR     WPS-1439
W18012590112.7019.053/5PU     WPH-1792
W18012110412.7019.302.64/4.00NBR     WPS-1568
W18015110315.8821.722.64/4.00NBR     WPS-1565
W18016110116.0022.003.5/5.00NBR     WPS-1564
W18016L50116.0024.605.3/7PU     WPH-1232
W18017870117.4624.003.04/4.95PU     WPH-3006
W18017110117.4624.082.64/4.00NBR     WPS-1437
W18018110118.0024.003.5/5.00NBR     WPS-1561
W18018110218.0025.003.5/5.00NBR     WPS-1560
W18018110318.0026.004/7.00NBR     WPS-1557
W18018110418.0026.005./7.00NBR     WPS-1436
W18018BF0118.7535.005.00/10.00SILICON     WPS-7841
W18019110419.0525.652.64/4.00NBR     WPS-1549
W18019110119.0528.504.5/7.0NBR     WPS-7079
W18019590119.0528.577.2PU     WPH-1455
W18019110219.0528.577.20NBR     WPS-360
W18019110319.0528.584.76/7.94NBR     WPS-1554
W18020L50320.0024.002.60/3.50PU     WPH-2028
W18020110320.0025.004/6.00NBR     WPS-1470
W18020L50220.0026.002/3.50PU     WPH-1750
W18020110420.0028.004/7.00NBR     WPS-1469
W18020L50120.0028.005/6.80PU     WPH-1688
W18020110120.0028.005/7.00NBR     WPS-1548
W18020590120.0028.605.3/6.50PU     WPH-2428
W18020110220.0030.005/7.00NBR     WPS-1547
W18020870120.6530.094.67/7.74PU     WPH-117
W18022Y501 (Stock Item) 22.0030.004.80/7PU     WPH-389
W18022680122.0030.004.90/7.00FKM     WPS-7514
W18022110522.0030.004/7.00NBR     WPS-1467
W18022110322.0030.005/7.00NBR     WPS-1546
W18022L50122.2231.754.74/7.13PU     WPH-1857
W18022110422.2329.132.64/4.00NBR     WPS-1543
W18022110622.2331.754.76/7.94NBR     WPS-1466
W18025L50225.0031.002/3.50PU     WPH-1749
W18025Y501 (Stock Item) 25.0033.005.00/7.00PU     WPH-760
W18025110125.0033.005/7.00NBR     WPS-1542
W18025110325.4032.312.64/4.00NBR     WPS-1538
W18025L50325.4034.934.76/7.94PU     WPH-711
W18025110225.4034.934.76/7.94NBR     WPS-1540
W18026110126.2835.782.00/5.80NBR     WPS-1113
W18026110226.9233.922.00/5.80NBR     WPS-1110
W18028L50528.0036.005.00/7.00PU     WPH-3082
W18063670228.0036.604.80/7FKM     WPS-6194
W18028670228.0036.605.00/7.00FKM     WPS-1863
W18028L50128.0036.605.1/6.60PU     WPH-1085
W18028110228.0038.005/7.00NBR     WPS-1533
W18028L50328.5735.512.50/4.00PU     WPH-3052
W18028L50428.5738.104.74/7.13PU     WPH-575
W18028L50728.5738.104.75/6.35PU     WPH-861
W18028L50228.5738.104.75/7.14PU     WPH-1524
W18028110428.5835.482.64/4.00NBR     WPS-1454
W18028L50628.5838.104.76/7.94PU     WPH-712
W18028110328.5838.104.76/7.94NBR     WPS-1462
W18028110128.9736.112.40/5.70NBR     WPS-7223
W18030110330.0038.005/7.00NBR     WPS-1446
W18030110430.0038.604.50/6.50NBR     WPS-1471
W18030110530.1637.062.64/4.00NBR     WPS-1473
W18031110231.7538.662.64/4.00NBR     WPS-1530
W18031L50231.7538.682.54/4.55PU     WPH-621
W18031870131.7541.274.74/7.13PU     WPH-1547
W18031L50131.7541.274.74/7.13PU     WPH-580
W18031670131.7541.274.74/7.13FKM     WPS-7564
W18031L50431.7541.274.75/7.11PU     WPH-860
W18031L50331.7541.284.76/7.94PU     WPH-713
W18031110131.7541.284.76/7.94NBR     WPS-1532
W18032110432.0040.005/7.00NBR     WPS-1527
W18032110332.0040.005/7.00NBR     WPS-6650
W18032L50132.0040.605/7.00PU     WPH-310
W18032110532.0042.005/7.00NBR     WPS-1523
W18032590132.0044.004/7PU     WPH-2805
W18033670133.3242.774.50/7.00FKM     WPS-438
W18034110234.9342.602.64/4.00NBR     WPS-1520
W18034110134.9344.454.76/7.94NBR     WPS-1522
W18035L50235.0043.004.00/7.00PU     WPH-3057
W18035Y50135.0043.004.70/7.00PU     WPH-608
W18035670135.0043.005.00/7.00FKM     WPS-1691
W18035870135.0043.005.75/7.50PU     WPH-2048
W18035L50135.0043.005/7PU     WPH-748
W18035110335.0043.005/7.00NBR     WPS-1519
W18035110235.0045.005.50/8NBR     WPS-5888
W18036Y50136.0044.004.6/7.00PU     WPH-1466
W18036680136.0044.004.9/7.00FKM     WPS-7612
W18036670136.0044.005.00/8.00FKM     WPS-7118
W18036Y50236.0044.005/7PU     WPH-3135
W18036110136.0044.005/7.00NBR     WPS-1518
W18036D60136.0044.605.30/7HNBR     WPS-4931
W18036110236.0048.005/7.00NBR     WPS-1478
W18038Y501 (Stock Item) 38.0046.004.80/7PU     WPH-395
W18038110238.0046.005/7.00NBR     WPS-1517
W18038110438.1045.772.64/4.00NBR     WPS-1499
W18038L50238.1045.772.65/4.30PU     WPH-306
W18038L50338.1045.772.71/4.74PU     WPH-571
W18038870138.1047.624.74/7.13PU     WPH-1546
W18038L50538.1047.624.75/7.14PU     WPH-872
W18038L50438.1047.634.76/7.94PU     WPH-714
W18038110338.1047.634.76/7.94NBR     WPS-1516
W18040L50240.0048.004.60/6.50PU     WPH-2610
W18040Y50240.0048.004.60/7.00PU     WPH-251
W18040Y50140.0048.004.80/7PU     WPH-3101
W18040L50140.0048.005/7PU     WPH-1701
W18040110440.0048.005/7.00NBR     WPS-1498
W18040110640.0048.604.50/6.50NBR     WPS-1479
W18040590240.0048.605/8PU     WPH-1404
W18040110240.0050.005.50/8.08NBR     WPS-5889
W18040110540.0050.005/7.00NBR     WPS-1494
W18040110340.0050.006.70/9NBR     WPS-5890
W18041870141.2750.724.67/7.74PU     WPH-124
W18041110241.2848.952.64/4.00NBR     WPS-1490
W18041110141.2850.804.76/7.94NBR     WPS-1491
W18042670142.0050.004/8.00FKM     WPS-1679
W18042110142.0050.005/7.00NBR     WPS-1489
W18044110244.4552.122.64/4.00NBR     WPS-1514
W18044L50144.4553.904.75/7.05PU     WPH-2674
W18044L50344.4553.974.75/7.11PU     WPH-855
W18044L50244.4553.984.76/7.94PU     WPH-716
W18044110144.4553.984.76/7.94NBR     WPS-1488
W18045Y502 (Stock Item) 45.0053.004.80/7.00PU     WPH-704
W18045L50145.0053.005/7PU     WPH-1707
W18045110145.0053.005/7.00NBR     WPS-1513
W18045590145.0053.005/8PU     WPH-387
W18045680145.0055.004.9/7.00FKM     WPS-7613
W18045110245.0055.005/7.00NBR     WPS-1512
W18047110247.6355.302.64/4.00NBR     WPS-1506
W18047110147.6357.154.76/7.94NBR     WPS-1511
W18050Y50150.0058.004.80/7.00PU     WPH-255
W18050L50350.0058.005/7PU     WPH-1704
W18050L50450.0058.005/7PU     WPH-1756
W18050110150.0058.005/7.00NBR     WPS-1502
W18050590150.0058.005/8PU     WPH-238
W18050D60150.0058.605.30/7HNBR     WPS-4926
W18050110550.0058.605/7.30NBR     WPS-1480
W18050R30150.0060.005/7PU     WPH-1794
W18050110250.0060.005/7.00NBR     WPS-1501
W18050110650.0065.007.50/12.00NBR     WPS-1492
W18050670150.0067.006/10FKM     WPS-4331
W18050110450.8058.472.64/4.00NBR     WPS-1645
W18050670250.8063.506.35/10FKM     WPS-6378
W18050870150.8063.506.35/9.52PU     WPH-1549
W18050L50750.8063.506.35/9.52PU     WPH-859
W18050670350.8063.506.35/9.52FKM     WPS-7445
W18050L50650.8063.506.35/9.53PU     WPH-717
W18050110350.8063.506.35/9.53NBR     WPS-1648
W18050590250.8063.506/9.52PU     WPH-2355
W18053110153.9861.652.64/4.00NBR     WPS-1643
W18053110253.9866.686.35/9.53NBR     WPS-1493
W18055110155.0063.005/7.00NBR     WPS-1641
W18055O50155.0065.005.80/9.00HYT-HYTREL     WPH-639
W18055110255.0065.005/7.00NBR     WPS-1640
W18055110355.0067.007/12.00NBR     WPS-1635
W18056L50156.0066.005/7PU     WPH-1793
W18056670256.0066.006.10/8.30FKM     WPS-5050
W18056790156.0066.006.30/10NBR     WPH-1697
W18056L50256.0066.605/7PU     WPH-2111
W18056670156.0066.605/7FKM     WPS-3266
W18057110157.1564.822.64/4.00NBR     WPS-1634
W18057110257.1569.856.35/9.53NBR     WPS-1495
W18060670160.0070.005.30/7FKM     WPS-6220
W18060110160.0070.005/7.00NBR     WPS-1633
W18060110360.0070.006.3/10.00NBR     WPS-1900
W18060Y50160.0070.006/10PU     WPH-3121
W18060110460.0070.006/10.00NBR     WPS-1496
W18060L50160.0070.006/9PU     WPH-1706
W18060110260.0070.007/12.00NBR     WPS-1746
W18060R30160.0073.005/7PU     WPH-1796
W18060110560.3367.742.64/4.00NBR     WPS-1503
W18063L50163.0073.005/7PU     WPH-1845
W18063Y501 (Stock Item) 63.0073.005/7.00PU     WPH-698
W18063110363.0073.005/7.00NBR     WPS-1630
W18063Y50263.0073.006.00/10.00PU     WPH-706
W18063110463.0075.006/9.00NBR     WPS-1629
W18063110263.5071.172.64/4.00NBR     WPS-1631
W18063870163.5076.206.35/9.52PU     WPH-1548
W18063670363.5076.206.35/9.52FKM     WPS-7497
W18063L50263.5076.206.35/9.53PU     WPH-718
W18063110163.5076.206.35/9.53NBR     WPS-1632
W18065110165.0075.005.30/7NBR     WPS-5649
W18065L50165.0075.005/7PU     WPH-1757
W18065110265.0075.005/7.00NBR     WPS-1524
W18065Y50265.0075.006.00/10.00PU     WPH-3122
W18065Y50165.0075.006.30/10PU     WPH-3100
W18065590165.0075.006/9.00PU     WPH-3059
W18065590265.0075.007/10.00PU     WPH-313
W18066110266.6875.923.02/4.76NBR     WPS-1526
W18066110166.6879.386.35/9.53NBR     WPS-4456
W18069110269.8579.103.02/4.76NBR     WPS-1531
W18069L50169.8582.555.20/9.52PU     WPH-1553
W18069L50269.8582.556.35/9.53PU     WPH-719
W18069110169.8582.556.35/9.53NBR     WPS-1626
W18070110370.0078.005/7.00NBR     WPS-1622
W18070110270.0078.605.00/7.00NBR     WPS-6936
W18070680170.0080.004.90/7.00FKM     WPS-7566
W18070110470.0080.005/7.00NBR     WPS-1619
W18070K30170.0080.006.3/10HYT-2     WPH-1312
W18070590370.0080.006/9.00PU     WPH-591
W18070L50170.0080.009PU     WPH-572
W18070590270.0080.605.30/7PU     WPH-443
W18070L50370.0080.605/7PU     WPH-2110
W18070670170.0080.605/7FKM     WPS-3267
W18070K30370.0082.006.60/12.50HYT-HYTREL     WPH-316
W18076110276.2085.453.02/4.76NBR     WPS-1615
W18076110176.2088.906.35/9.53NBR     WPS-1616
W18079110279.3888.623.02/4.76NBR     WPS-1544
W18079110179.3892.086.35/9.53NBR     WPS-1539
W18080110380.0088.005/7.00NBR     WPS-1545
W18080110180.0088.605.30/7NBR     WPS-5426
W18080110280.0088.605.30/8NBR     WPS-5650
W18080K30180.0090.005.70/8.80NYLON     WPH-957
W18080670180.0090.005.70/8.80FKM     WPS-5250
W18080O50180.0090.006.30/10.00HYT-3     WPH-1618
W18080670280.0090.007.50/11FKM     WPS-6221
W18080L50280.0092.006/12PU     WPH-2564
W18082110282.5591.803.02/4.76NBR     WPS-1551
W18082110182.5595.256.35/9.53NBR     WPS-1614
W18085110185.7398.436.35/9.53NBR     WPS-1562
W18088L50288.9098.142.80/5.20PU     WPH-424
W18088110288.9098.153.02/4.76NBR     WPS-1563
W18088L50488.90101.526.32/10.03PU     WPH-864
W18088870188.90101.606.35/9.52PU     WPH-1826
W18088L50388.90101.606.35/9.53PU     WPH-722
W18088110188.90101.606.35/9.53NBR     WPS-1611
W18088L50188.90101.606/9.52PU     WPH-1551
W18089L50189.5098.505.00/7.00PU     WPH-677
W18090L50690.00100.005.70/9.00PU     WPH-334
W18090L50190.00100.006/10PU     WPH-601
W18090R30190.00102.007/12PU     WPH-1795
W18090L50590.00102.206.5/11PU     WPH-2421
W18090790190.00102.206.50/11HYT-1     WPH-1681
W18090L50290.00102.207/12PU     WPH-735
W18090110190.00102.207/12.00NBR     WPS-7833
W18092110192.08104.786.35/9.53NBR     WPS-1610
W18095110195.00105.006/8.00NBR     WPS-1608
W18095670195.00107.207.20/12FKM     WPS-6219
W18095K30195.00107.207/12NBR     WPH-707
W18095110395.25104.503.02/4.76NBR     WPS-1566
W18095L50295.25107.876.32/10.03PU     WPH-865
W18095590295.25107.956.25/9.52PU     WPH-354
W18095110295.25107.956.35/9.53NBR     WPS-1575
W18095590195.25107.956/9.52PU     WPH-2354
W18098110198.43111.136.35/9.53NBR     WPS-1567
W18100L501100.00108.006/9PU     WPH-2011
W181001106100.00110.006/8.00NBR     WPS-1570
W18100L504100.00112.007/12.00PU     WPH-726
W181001105100.00112.007/12.00NBR     WPS-1607
W181008701100.00112.206.5/11PU     WPH-341
W18100O501100.00115.009.50/14HYT-3     WPH-1525
W181001104100.00115.009.50/14NBR     WPS-224
W181011102101.60112.453.43/5.56NBR     WPS-1581
W181018701101.60114.306.35/9.52PU     WPH-1825
W18101L502101.60114.306.35/9.53PU     WPH-730
W181011101101.60114.306.35/9.53NBR     WPS-1576
W181016701101.60114.306/10.50FKM     WPS-5029
W18101L501101.60114.306/9.52PU     WPH-1552
W181041101104.78117.486.35/9.53NBR     WPS-1583
W181071102107.95118.803.43/5.56NBR     WPS-1597
W18107L501107.95120.656.35/10.03PU     WPH-2715
W181071101107.95120.656.35/9.53NBR     WPS-1596
W181101102110.00122.005.50/10.00NBR     WPS-1600
W181101101110.00122.007/12.00NBR     WPS-1606
W181108702110.00122.207.20/12PU     WPH-283
W18110L502110.00125.008.60/13PU     WPH-1867
W181106701110.00125.009.50/14FKM     WPS-6218
W181111101111.13121.973.43/5.56NBR     WPS-1604
W181115901111.40133.359.20/14.27PU     WPH-2845
W181141103114.30125.153.43/5.56NBR     WPS-1624
W181141101114.30127.006.35/9.53NBR     WPS-1618
W181145901114.30133.359.20/14.27PU     WPH-2828
W181141102114.30133.359.53/14.29NBR     WPS-1621
W18120Y501 (Stock Item) 120.00130.005.00/8.50PU     WPH-909
W181201102120.00132.005.50/10.00NBR     WPS-1605
W18120L501120.00132.207.00/12.00PU     WPH-715
W18120L503120.00132.207.20/12PU     WPH-2634
W181201103120.65139.709.53/14.29NBR     WPS-1627
W181251101125.00137.005.50/10.00NBR     WPS-1603
W181257901125.00140.009.5/14HYT-1     WPH-1309
W181278701127.00136.525.70/8.50PU     WPH-2138
W181271103127.00137.853.43/5.56NBR     WPS-1639
W18127L502127.00137.973.30/5.70PU     WPH-1088
W18127L501127.00139.706.35/9.52PU     WPH-2096
W181271101127.00139.706.35/9.53NBR     WPS-1602
W181271102127.00146.059.53/14.29NBR     WPS-1628
W181301102130.00142.005.50/10.00NBR     WPS-1642
W181301101130.00142.007/12.00NBR     WPS-1601
W18133L501133.35148.334.57/7.87PU     WPH-3096
W181335901133.35152.409.30/14.05PU     WPH-353
W181331101133.35152.409.53/14.29NBR     WPS-1599
W181391101139.70158.759.53/14.29NBR     WPS-1594
W18140L501140.00155.0010/16PU     WPH-430
W18140O501140.00155.009.50/14HYT-3     WPH-1482
W18145Y501 (Stock Item) 145.00160.005.50/7.50PU     WPH-690
W181461101146.05165.109.53/14.29NBR     WPS-1593
W18150K301150.00162.207.70/12HYT-2     WPH-1608
W18150L501150.00176.0014/19PU     WPH-2687
W181521103152.40164.823.84/6.35NBR     WPS-1588
W181521101152.40165.106.35/9.53NBR     WPS-1591
W181521102152.40171.459.53/14.29NBR     WPS-1589
W18158S401158.75177.729.49/14.85NBR     WPS-1848
W18160Y501 (Stock Item) 160.00173.007.00/9.50PU     WPH-803
W18160L502160.00175.0010.20/16PU     WPH-2389
W181607901160.00175.009.50/13HYT-HYTREL     WPH-2352
W181605902T160.00175.009.50/13.00PU     WPH-3058
W181606601160.00175.009.50/16FKM     WPS-4788
W181605901160.00175.009/14PU     WPH-1035
W18160L501160.00185.0014/19PU     WPH-2328
W181658701165.10184.159.44/14.27NBR     WPH-558
W181651101165.10184.159.53/14.29NBR     WPS-1586
W181701101170.00182.005.50/10.00NBR     WPS-1644
W18170L501170.00196.0014/19PU     WPH-1907
W181711102171.45184.156.35/9.53NBR     WPS-1646
W181771102177.80190.506.35/9.53NBR     WPS-1595
W18177L501177.80196.859.00/14.85PU     WPH-962
W181771101177.80196.859.53/14.29NBR     WPS-1585
W181801101180.00195.0010/16.00NBR     WPS-1584
W181806701180.00195.008.50/13FKM     WPS-4873
W181807901180.00195.009/14HYT     WPH-101
W18180R301180.00200.0010.20/18PU     WPH-1797
W181856701185.00200.004/7FKM     WPS-5123
W18200L501200.00215.009.50/14PU     WPH-2745
W18202K301202.00221.059.50/18HYT     WPH-2076
W182031101203.20222.259.53/14.29NBR     WPS-1580
W182206601220.00240.0010.20/18FKM     WPS-4787
W18220L501220.00240.0012.00/18.00PU     WPH-3093
W18230L501230.00246.007/11PU     WPH-2175
W18231L501231.00241.605.00/7.00PU     WPH-319
W18240L501240.00266.0014/19PU     WPH-1871
W182505901250.00270.0010.20/18PU     WPH-2542
W18250R301250.00275.0012.20/18.30PU     WPH-1702
W18254L501254.00279.4012.20/20.00PU     WPH-3065
W18260L501260.00286.0014/19.05PU     WPH-2327
W182657901265.00285.009.00/15.00HYT-HYTREL     WPH-284
W182805902280.00300.009.5/19PU     WPH-2581
W182901101290.00310.0010/18.20NBR     WPS-1664
W18300L501300.00315.009/11.50PU     WPH-2936
W183001101300.00320.0010.00NBR     WPS-719
W18304L501304.80330.2012.70/19.05PU     WPH-359
W183101101310.00330.0010/18NBR     WPS-6332
W18310L501310.00336.0014/19.05PU     WPH-2326
W183596701359.00380.0011.50/16FKM     WPS-5853
W187501101750.00775.0012.50/20NBR     WPS-6302




For customised items please Click here
Login
