Max Spare : W17

Profile : Wiper Seals

Details :

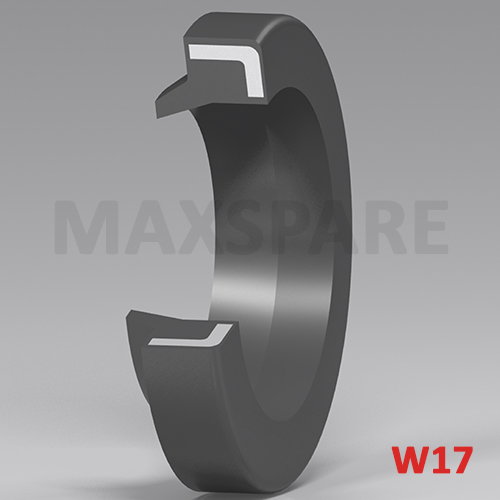

W17 wiper series are installed in open grooves. The steel cage firmly holds the wiper in grooves. The standard material for this wiper is Nitrile rubber. We can also supply in Polyurethane material, due to excellent wear resistance of polyurethane the life expected is 3 times than that of NBR.

MATERIAL

Nitrile Rubber 85/90 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Medium duty applications.
Hydraulic and Pneumatic cylinders.

FEATURES

General purpose seal.
Can be subjected to heavy duty.
Long service life.
Suitable for open grooves.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
W170081102	8.00	14.00	3.5/5	NBR	WPS-3872
W170081104	8.00	14.00	4/5	NBR	WPS-4996
W170081103	8.00	14.00	5	NBR	WPS-4886
W170081001	8.00	14.00	5/7	NBR	WPS-3375
W170101107	10.00	14.30	4/6.00	NBR	WPS-6905
W170100801	10.00	16.00	3.50/5	NBR	WPS-5757
W170100802	10.00	16.00	3.80/5.50	NBR	WPS-701
W170101105	10.00	16.00	4/5	NBR	WPS-3780
W170101106	10.00	16.00	5/6.50	NBR	WPS-6847
W170121003	12.00	18.00	3.5/5	NBR	WPS-3376
W170121101	12.00	18.00	3.5/5	NBR	WPS-3668
W170126701	12.00	18.00	3.5/5.00	FKM	WPS-6925
W170121110	12.00	18.00	3.50/5.00	NBR	WPS-6552
W170121104	12.00	18.00	4/5	NBR	WPS-3781
W170121111	12.00	18.00	5/6.50	NBR	WPS-6845
W170128701	12.00	20.00	4.00/6.00	PU	WPH-351
W170121105	12.00	20.00	6/8.5	NBR	WPS-6025
W170121113	12.00	22.00	5.00/8.00	NBR	WPS-7241
W170121106	12.00	22.50	5.00/7.50	NBR	WPS-6531
W170121103	12.70	17.54	3.00/4.20	NBR	WPS-3476
W170141102	14.00	20.00	3.50/5.00	NBR	WPS-7659
W170150801	15.00	21.00	3.50/5	NBR	WPS-5758
W170151103	15.00	21.00	3.50/5.00	NBR	WPS-4342
W170151101	15.00	21.00	4/5	NBR	WPS-5967
W170151105	15.00	24.00	5.00/7.00	NBR	WPS-878
W170151102	15.50	39.00	7.50/14.00	NBR	WPS-6957
W170151001	15.87	22.00	3/4	NBR	WPS-875
W170166704	16.00	22.00	3.00/5.00	FKM	WPS-7044
W170161107	16.00	22.00	3.50/5.00	NBR	WPS-6295
W170161109	16.00	22.00	3/5.00	NBR	WPS-6849
W170161106	16.00	22.00	4.30/6.70	NBR	WPS-5600
W170161108	16.00	22.00	4.50/6.50	NBR	WPS-6846
W170161104	16.00	22.00	4/5	NBR	WPS-3343
W170166702	16.00	26.00	5.00/7.00	FKM	WPS-6904
W17016U201	16.00	26.00	5/8	FKM	WPS-4580
W170165901	16.00	26.00	5/8.00	PU	WPH-934
W170181101	18.00	28.00	5.5/7	NBR	WPS-3342
W170181104	18.00	28.00	6/8.00	NBR	WPS-7360
W170181103	18.00	28.00	7/10.00	NBR	WPS-6800
W170191101	19.00	29.00	5.50/7.00	NBR	WPS-6797
W17019L502	19.00	29.00	5/7.00	PU	WPH-622
W170191001	19.05	26.00	5/8.9	NBR	WPS-874
W17019L501	19.05	28.57	4.57/6.35	PU	WPH-471
W170201109	20.00	27.70	5.50/8.50	NBR	WPS-7934
W170201107	20.00	27.70	6.20/8.80	NBR	WPS-6834
W170203201	20.00	27.70	8.30	EPDM	WPS-1711
W17020L503	20.00	28.00	3.50/5.00	PU	WPH-2629
W170201108	20.00	28.00	5.50/8.00	NBR	WPS-6848
W170204301	20.00	29.00	5.00/7.30	SILICON	WPS-7442
W170201106	20.00	30.00	3.50/5	NBR	WPS-5910
W170201103	20.00	30.00	5.5/7	NBR	WPS-4332
W170201105	20.00	30.00	5/7	NBR	WPS-3158
W17020U201	20.00	30.00	5/8	FKM	WPS-1189
W17020L502	20.00	30.00	7/10	PU	WPH-942
W170211101	21.00	31.00	5.00/7.00	NBR	WPS-2234
W170221103	22.00	32.00	5.00/7.00	NBR	WPS-7207
W170221102	22.00	32.00	5.5/7	NBR	WPS-3344
W170231101	23.00	32.00	5.5/6.8	NBR	WPS-4621
W170255902	25.00	32.00	5/7	PU	WPH-1037
W170258701	25.00	32.00	5/7.00	PU	WPH-3108
W17025L502	25.00	32.00	5/7.00	PU	WPH-643
W170253201	25.00	32.70	8.30	EPDM	WPS-1710
W170251105	25.00	33.70	5.40/8.20	NBR	WPS-6818
W170251103	25.00	35.00	5.5/7	NBR	WPS-3345
W17025L401	25.00	35.00	5.50/8.50	PU	WPH-2442
W170256701	25.00	35.00	5/7	FKM	WPS-4178
W170250802	25.00	35.00	5/7	NBR	WPS-5756
W170250801	25.00	35.00	5/8	NBR	WPS-5433
W170256703	25.00	35.00	7.00/9.50	FKM	WPS-7272
W170255901	25.00	35.00	7/10	PU	WPH-785
W170251108	25.00	40.00	7.00/10.00	NBR	WPS-474
W170281104	28.00	34.00	5.00/7.00	NBR	WPS-2121
W170286701	28.00	35.00	5/7.00	FKM	WPS-7163
W170281103	28.00	36.00	4.00/5.00	NBR	WPS-351
W17028L501	28.00	38.00	5.00/7.00	PU	WPH-701
W170281102	28.00	38.00	5.5/7	NBR	WPS-3341
W170305905	30.00	38.00	5.00/7.00	PU	WPH-2593
W170301107	30.00	39.70	5.80/8.70	NBR	WPS-7933
W170301105	30.00	39.70	6.20/8.80	NBR	WPS-6819
W170301102	30.00	40.00	5.50/7	NBR	WPS-3146
W170301101	30.00	40.00	5/7	NBR	WPS-6048
W170305902	30.00	40.00	5/8	PU	WPH-1198
W17030L401	30.00	40.00	6.50/9.50	PU	WPH-2443
W170301106	30.00	40.00	6/10.00	NBR	WPS-6844
W170305903	30.00	40.00	7.00/10.00	PU	WPH-905
W170306701	30.00	42.00	6/10	FKM	WPS-6050
W170306701	30.00	42.00	6/10	FKM	WPS-6072
W170301104	30.00	48.00	5/10	NBR	WPS-4883
W170320801	32.00	35.00	2.5/3.20	NBR	WPS-5085
W170321102	32.00	40.00	6/9.00	NBR	WPS-6610
W170321101	32.00	42.00	5.50/7.00	NBR	WPS-3463
W170325902	32.00	42.00	7/10.00	PU	WPH-2636
W170326702	32.00	42.00	7/10.00	FKM	WPS-223
W170323501	32.00	45.00	7.00/10.00	EPDM	WPS-905
W170351104	35.00	42.70	5.30/8.20	NBR	WPS-7935
W170353201	35.00	42.70	8.30	EPDM	WPS-1658
W170360801	36.00	42.25	3.30/8	NBR	WPS-5412
W170361101	36.00	45.00	7.00/10.00	NBR	WPS-3434
W170361103	36.00	45.00	7/10.00	NBR	WPS-7592
W170366701	36.00	46.00	5/7	FKM	WPS-5434
W170361102	36.00	46.00	7/10.00	NBR	WPS-7410
W170361104	36.00	47.00	5/7.00	NBR	WPS-1949
W170361105	36.00	47.00	7/10.00	NBR	WPS-1928
W170370801	37.00	40.00	2.8/3.20	NBR	WPS-5086
W170371102	37.00	47.00	5.50/7.00	NBR	WPS-305
W170381102	38.00	49.70	6.20/9.00	NBR	WPS-6817
W170381103	38.00	50.00	6/8.50	NBR	WPS-6843
W170400801	40.00	50.00	5/8	NBR	WPS-5759
W170405902	40.00	50.00	7/10	PU	WPH-1132
W170406701	40.00	50.00	7/10	FKM	WPS-4297
W170421102	42.00	49.70	5.30/8.20	NBR	WPS-7936
W170423201	42.00	49.70	8.30	EPDM	WPS-897
W170425901	42.00	52.00	7/10.00	PU	WPH-1221
W17045L502	45.00	55.00	5/7	PU	WPH-916
W170451102	45.00	55.00	5/8	NBR	WPS-3948
W170451103	45.00	55.00	7.00/10.00	NBR	WPS-6191
W170451105	45.00	56.00	7.00/10.00	NBR	WPS-1920
W170451104	45.00	60.00	6.00/9.00	NBR	WPS-7154
W170501101	50.00	60.00	5/7	NBR	WPS-4510
W170505904	50.00	60.00	7/10	PU	WPH-1400
W170501102	50.00	60.00	7/10	NBR	WPS-2584
W170501102	50.00	60.00	7/10	NBR	WPS-3168
W170551101	55.00	65.00	5/7.00	NBR	WPS-7829
W17055L502	55.00	65.00	7.00/10.00	PU	WPH-883
W170606701	60.00	70.00	5/7	FKM	WPS-4179
W170605901	60.00	70.00	7/10	PU	WPH-1103
W17060U201	60.00	70.00	7/10.00	FKM	WPS-1795
W170631101	63.50	95.25	6.35/8.63	NBR	WPS-7704
W170651101	65.00	80.00	7/10	NBR	WPS-4814
W17070L502	70.00	77.00	5.00/7.00	PU	WPH-780
W170705901	70.00	80.00	7/10	PU	WPH-831
W170751101	75.00	83.00	7/10	NBR	WPS-5407
W170756701	75.00	85.00	7/10	FKM	WPS-4737
W170801103	80.00	88.00	7/10.00	NBR	WPS-3665
W1708001104	80.00	90.00	7/10	NBR	WPS-968
W170801105	80.00	95.00	5/8.00	NBR	WPS-246
W170855901	85.00	95.00	7/10	PU	WPH-1225
W170901101	90.00	100.00	5/7	NBR	WPS-3387
W170901103	90.00	100.00	7/10	NBR	WPS-5406
W170905901	90.00	100.00	7/10.00	PU	WPH-1239
W170905902	90.00	102.20	7/12	PU	WPH-2376
W170955901	95.00	105.00	7/10	PU	WPH-1226
W170956601	95.00	105.00	7/10	FKM	WPS-3377
W170951102	95.00	170.00	6.00/9.00	NBR	WPS-7817
W171005901	100.00	110.00	7/10	PU	WPH-1157
W171001101	100.00	110.00	7/10	NBR	WPS-4571
W17101L501	101.60	114.30	6.35/9.52	PU	WPH-2540
W171021101	102.00	125.00	9.00/10.00	NBR	WPS-7780
W17110U201	110.00	120.00	7/10.00	FKM	WPS-6502
W17115U201	115.00	125.00	7/10	FKM	WPS-1162
W171155902	115.00	127.00	9/12	NBR	WPH-2518
W170956702	120.00	130.00	7.00/10.00	FKM	WPS-7335
W171205901	120.00	130.00	7/10	PU	WPH-1230
W171201001	120.00	150.00	12/15.00	NBR	WPS-7634
W171251101	125.00	140.00	9.00/13.00	NBR	WPS-2463
W171301101	130.00	145.00	9/12.00	NBR	WPS-1837
W17133V301	133.00	152.00	13/19	NBR	WPS-7354
W171605901	160.00	175.00	12/16	PU	WPH-2519
W17177L501	177.80	190.60	4.20/7.00	PU	WPH-2599
W171801101	180.00	200.00	8/12.50	NBR	WPS-6213
W171851101	185.00	215.00	7.00/10.00	NBR	WPS-2040
W172256701	225.00	250.00	15.00/20.00	FKM	WPS-7364
W172401101	240.00	270.00	7.00/10.00	NBR	WPS-2043
W172401102	240.00	280.00	7.00/10.00	NBR	WPS-2042
W172421101	242.00	280.00	10.00/15.00	NBR	WPS-7245
W172801101	280.00	310.00	7.00/10.00	NBR	WPS-2052
W173001101	300.00	340.00	7.00/10.50	NBR	WPS-2056
W173501101	350.00	365.00	9.50/13.00	NBR	WPS-7910
W173505901	350.00	380.00	12/16	PU	WPH-1235
W173751101	375.00	385.00	9.50/13.00	NBR	WPS-7908
W173801101	380.00	408.00	7.00/10.00	NBR	WPS-7244
W173801102	380.00	420.00	7.00/10.00	NBR	WPS-2049
W174256701	425.00	457.00	19.7/23	FKM	WPS-7116
W174801101	480.00	520.00	7.50/10.00	NBR	WPS-2059

For customised items please Click here
