Profile : Wiper Seals

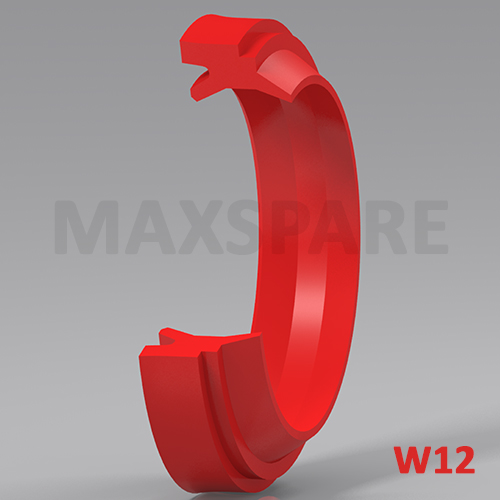

Spareage : W12

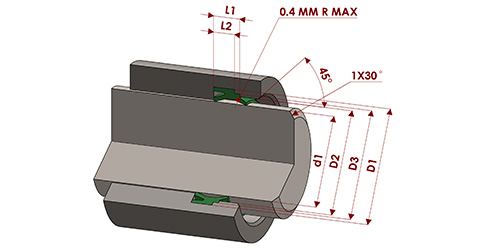

W12 Assembly

Details :
W12 wiper is a double function seal. This wiper is designed to exclude dirt and moisture from entering the cylinder and to collect traces of fluid passing the rod seal. Opposite the wiper lip are two sealing lips to collect fluid passing the rod seal. Providing a simple groove design and dual function, the type W12 wiper offers excellent scraping action, even with high accumulating dirt, dust and moisture conditions. Though the standard material is NBR. This wiper is also available in polyurethane. Due to excellent wear resistance properties of polyurethane, the life expected is 3 times than that of NBR. This wiper is also available in FKM (Viton) material for high temperature applications.
MATERIAL
Nitrile Rubber 85/90 Shore A
Polyurethane 92 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Speed : PU - 1.0 m/s
: NBR - 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
  • Medium duty seal (For heavy duty application, select polyurethane as the material).
  • Hydraulic and Pneumatic cylinders.
  • Standard cylinders.
FEATURES
  • General purpose seal.
  • Good wiping performance.
  • Twins lip ensures drier sealing system.
  • No twisting in the groove.
  • Good stability.
  • Wide range of sizes.
  • Easy installation.

Manufactured by: Max Spare Limited
Product ID: /details?id=26&name=w12


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
W12004L5014.008.102.8/3.8/4PU     WPH-1939
W1200511015.0011.003.30/4.40/5.50NBR     WPS-5093
W12006L4016.0011.003.2/4.2/5.2PU     WPH-1364
W1200611016.0011.003.30/4.40/5.50NBR     WPS-4854
W12006L5016.0011.103.40/4.60/5PU     WPH-1947
W12006L5026.0011.503.50/4.50/5.50PU     WPH-2118
W1200611046.0012.003.5/4.5/6.00NBR     WPS-2322
W1200611036.0015.004/5/6.00NBR     WPS-7090
W12007L5017.0014.003/4/5PU     WPH-1583
W12008L5028.0014.003.7/4.7/6.0PU     WPH-1864
W1200811028.0014.003/4.2/5.00NBR     WPS-3139
W12008L5018.0014.003/4/5PU     WPH-1666
W12008L5038.0014.103.40/4.60/5PU     WPH-1940
W1200867028.0014.203.2/4/5FKM     WPS-6246
W1200823018.0014.203.6/4.6/5NEOPRENE     WPS-6436
W1200811038.0014.503.5/4.5/5.50NBR     WPS-5094
W1200811058.0015.004/5/6.00NBR     WPS-7628
W12009L5029.0016.003.80/5.00/6.00PU     WPH-263
W12009L5019.0016.003.80/5/6PU     WPH-1751
W1200911019.8416.003.8/5/6.00NBR     WPS-538
W12010110210.0016.003.5/5/6.5NBR     WPS-4287
W12010590210.0016.003.8/5/6.2PU     WPH-1397
W12010L40310.0016.003.8/5/6.50PU     WPH-1675
W12010110810.0016.003.80/5.00/6.50NBR     WPS-869
W12010630110.0016.003.88/5.10/6.15FKM     WPS-4448
W12010110610.0016.003.9/5/6NBR     WPS-6107
W12010L50210.0016.004/5/6PU     WPH-1543
W12010110310.0016.004/5/6NBR     WPS-4398
W12010L50110.0016.004/5/6.20PU     WPH-602
W12010110410.0016.004/5/6.50NBR     WPS-5019
W12010670110.0016.004/6/7FKM     WPS-4969
W12010L50310.0016.104/5.40/6PU     WPH-1941
W12010L50710.0016.203.70/4.90/6.00PU     WPH-828
W12010110710.0016.503.80/5.50/7NBR     WPS-6508
W12010L50510.0016.504/5.30/6PU     WPH-2331
W12010670410.0018.004/6/8.00FKM     WPS-7620
W120101101 (Stock Item) 10.0018.006/8NBR     WPS-2162
W12010L50610.0019.003.20/4.20/5.20PU     WPH-2913
W12012L50112.0016.502.80/3.60/4PU     WPH-1942
W1212.0018.003.5/5FKM     WPS-1161
W12012670212.0018.003.8/5.00/6.30FKM     WPS-3928
W12012100212.0018.003.80/5.00/6.20NBR     WPS-6649
W12012100412.0018.004/5/6.50NBR     WPS-464
W12012110512.0018.203.8/4.8/6NBR     WPS-5555
W12012110712.0018.504/6/8NBR     WPS-5716
W12012L40112.0019.003/4/5PU     WPH-1365
W12012450212.0019.003/4/5.00SILICON     WPS-7429
W12012450112.0020.004/6/8SILICON     WPS-5987
W12012U30112.0020.004/6/8.00FKM     WPS-4563
W12012080112.0020.004/6/8.00NBR     WPS-7115
W120121101 (Stock Item) 12.0020.006/8NBR     WPS-2161
W12012110112.0020.006/8NBR     WPS-5676
W12012110112.0020.006/8NBR     WPS-5692
W12012L50312.0021.002.50/6.50/10.60PU     WPH-592
W12012L50212.0023.003.20/4.50/5.50PU     WPH-2217
W12013110113.0022.0040/6.60/8NBR     WPS-5611
W120141101 (Stock Item) 14.0022.004/6/8NBR     WPS-1528
W12014110114.0022.006/8NBR     WPS-5708
W120151101 (Stock Item) 15.0023.004/6/8NBR     WPS-1529
W12015110315.0023.004/6/8.00NBR     WPS-691
W12016L50416.0020.502.8/3.8/4PU     WPH-1943
W12016111016.0022.003/4NBR     WPS-5020
W12016110316.0023.003.80/5.20/6.60NBR     WPS-5755
W12016L40116.0023.003/4/5PU     WPH-1401
W12016Q20116.0023.003/4/5PU     WPH-2536
W12016590316.0023.004.2/5/6.00PU     WPH-2643
W12016660116.0023.503.80/5.00/6.50FKM     WPS-2252
W12016L50616.0024.004/6/8PU     WPH-2797
W1216670116.0024.004/6/8FKM     WPS-1420
W12016L50316.0024.006/7/8PU     WPH-1773
W12016110116.0024.006/8NBR     WPS-5702
W120161101 (Stock Item) 16.0024.006/8NBR     WPS-996
W12016670216.0025.004/6/8FKM     WPS-6192
W12016110416.0026.005/8NBR     WPS-1313
W12018L40118.0024.004.5/6.3/7.80PU     WPH-1714
W12018110218.0025.004/6/8NBR     WPS-6468
W12018L50118.0026.004/6/8PU     WPH-2796
W12018670118.0026.004/6/8FKM     WPS-4113
W120181101 (Stock Item) 18.0026.006/8NBR     WPS-1106
W12018110118.0026.006/8NBR     WPS-5707
W12019Q20119.0027.003.4/4.3/6PU     WPH-998
W12020L50120.0025.003.20/4/4.60PU     WPH-1944
W12020590220.0028.004/6/8PU     WPH-184
W12020670120.0028.004/6/8FKM     WPS-4867
W12020110520.0028.004/6/8.00NBR     WPS-1413
W12020110120.0028.006/8NBR     WPS-5706
W120201101 (Stock Item) 20.0028.006/8NBR     WPS-997
W12020L50420.0029.004/6/8PU     WPH-2422
W12020L40120.0029.005/6/7PU     WPH-1319
W12020L50520.0030.002.80/6.70/9.70PU     WPH-596
W12020L50320.0030.004.70/5.70/7PU     WPH-2122
W12020670220.0030.005.00/6.00/8.00FKM     WPS-619
W12020110320.0030.005/6/7NBR     WPS-4985
W12022110222.0030.004/5/7NBR     WPS-472
W12022L50122.0030.004/6/8PU     WPH-2810
W12022Y50122.0030.004/6/8PU     WPH-3102
W12022670122.0030.004/6/8FKM     WPS-1418
W120221101 (Stock Item) 22.0030.004/6/8NBR     WPS-959
W12022110122.0030.006/8NBR     WPS-5704
W12025L50225.0030.003.20/4/4.60PU     WPH-1946
W12025110425.0030.003.20/4/4.60NBR     WPS-5651
W12025110625.0032.003.80/5.80/8NBR     WPS-6293
W12025890125.0033.003.9/5.9/7.80PU     WPH-543
W12025110525.0033.004/5/7NBR     WPS-6109
W12025670225.0033.004/6/8FKM     WPS-1535
W120251101.25.0033.004/6/8NBR     WPS-5703
W12025110125.0033.004/6/8NBR     WPS-5927
W12025110125.0033.004/6/8NBR     WPS-5982
W12025110725.0033.004/6/8.00NBR     WPS-1394
W12025113425.0033.005.50/7.20NBR     WPS-5031
W12025670325.0033.005/7/9FKM     WPS-6561
W12025L50125.0033.006/8PU     WPH-2025
W12025L50125.0033.006/8PU     WPH-445
W120251101 (Stock Item) 25.0033.006/8NBR     WPS-1105
W12025590125.0034.004.90/5.70/7PU     WPH-2052
W12025110325.0036.004/6/8NBR     WPS-4739
W12025L50425.0038.002.90/7.00/11.00PU     WPH-599
W12028110328.0036.003.8/5.7/7.70NBR     WPS-7764
W12028110228.0036.003.80/5.7/7.70NBR     WPS-7063
W12028670228.0036.004/5/7.00FKM     WPS-6956
W12028L50128.0036.004/6/8PU     WPH-862
W12028670128.0036.004/6/8FKM     WPS-1504
W120281101 (Stock Item) 28.0036.006/8NBR     WPS-836
W12028670328.0038.004/6/8.00FKM     WPS-972
W12028110428.0040.005.00/6.50/9.00NBR     WPS-7966
W12030L50230.0035.503.8/4.8/6PU     WPH-1945
W12030110330.0035.503.80/4.80/6NBR     WPS-5652
W12030110430.0038.003.80/5.50/7.50NBR     WPS-5738
W12030670130.0038.004/6/8FKM     WPS-2417
W12030L50130.0038.006/8PU     WPH-444
W120301101 (Stock Item) 30.0038.006/8NBR     WPS-1002
W12030110130.0038.006/8NBR     WPS-5681
W12030110530.0040.004/6/8.00NBR     WPS-186
W12030110230.0042.004/6/8NBR     WPS-4987
W12032L50132.0040.004/6/8PU     WPH-1851
W12032110132.0040.004/6/8NBR     WPS-5297
W12032110132.0040.006/8NBR     WPS-5639
W120321101 (Stock Item) 32.0040.006/8NBR     WPS-729
W12035110635.0043.003.80/5.7/7.70NBR     WPS-7064
W12035L50135.0043.004/6/8PU     WPH-2795
W12035670235.0043.004/6/8FKM     WPS-3104
W12035670135.0043.004/6/8FKM     WPS-842
W12035L50235.0043.004/6/8.00PU     WPH-594
W12035110135.0043.006/8NBR     WPS-5711
W120351101 (Stock Item) 35.0043.006/8NBR     WPS-596
W12035110535.0044.004/6/8NBR     WPS-5100
W12035110335.0045.005/7NBR     WPS-3589
W12036670236.0043.004/6/8FKM     WPS-5543
W12036110336.0043.004/6/8.00NBR     WPS-7714
W12036L50236.0044.004/6/8PU     WPH-1852
W12036670136.0044.004/6/8FKM     WPS-2170
W12036L50136.0044.006/8PU     WPH-436
W120361101 (Stock Item) 36.0044.006/8NBR     WPS-3083
W12036110236.0045.004/6/8.00NBR     WPS-6855
W12037110137.0045.004/6/8.00NBR     WPS-7206
W12038L50138.0046.004/6/8PU     WPH-185
W120381101 (Stock Item) 38.0046.004/6/8NBR     WPS-982
W12038110138.0046.006/8NBR     WPS-5680
W12038110238.0048.004/6/8NBR     WPS-6140
W12038670138.1046.005.00/6.00/8.00FKM     WPS-2335
W12040660240.0048.004.00/6.00/8.00FKM     WPS-563
W12040110440.0048.004/5/7NBR     WPS-6110
W12040110340.0048.004/6/7.7NBR     WPS-4610
W12040110540.0048.004/6/8.00NBR     WPS-1434
W12040670340.0048.006.00/8.00FKM     WPS-606
W12040L50240.0048.006/8PU     WPH-1720
W12040110140.0048.006/8NBR     WPS-5008
W12040110140.0048.006/8NBR     WPS-5691
W120401101 (Stock Item) 40.0048.006/8NBR     WPS-998
W12040L50340.0050.004/5/7PU     WPH-2690
W120421101 (Stock Item) 42.0050.004/6/8NBR     WPS-983
W12042670142.0050.004/6/8.00FKM     WPS-1760
W12044670144.0052.004/6/8FKM     WPS-5183
W12045L50145.0053.004/6/8PU     WPH-1542
W12045671245.0053.004/6/8.00FKM     WPS-4171
W12045110545.0053.004/6/8.00NBR     WPS-6532
W12045670145.0053.005/6/8FKM     WPS-843
W12045110145.0053.006/8NBR     WPS-2151
W120451101 (Stock Item) 45.0053.006/8NBR     WPS-5701
W12045110245.0060.004/6/8.80NBR     WPS-4984
W12045671345.0063.004/6/8.00FKM     WPS-7662
W12050110450.0058.004/5/7NBR     WPS-6111
W12050L50450.0058.004/6/8PU     WPH-2119
W12050670150.0058.004/6/8FKM     WPS-2896
W12050110150.0058.004/6/8NBR     WPS-5007
W12050P50150.0058.004/6/8.00NBR     WPS-3788
W12050110150.0058.006/8NBR     WPS-5712
W120501101 (Stock Item) 50.0058.006/8NBR     WPS-644
W12050L50150.0058.006/8.00PU     WPH-435
W12055L50155.0063.004/6/8PU     WPH-1645
W12055350155.0063.004/6/8.00EPDM     WPS-7661
W120551101 (Stock Item) 55.0063.006/8NBR     WPS-1204
W12055110155.0063.006/8NBR     WPS-5705
W12056590156.0064.004/6/8PU     WPH-1595
W12056670156.0064.004/6/8FKM     WPS-1541
W120561101 (Stock Item) 56.0064.004/6/8NBR     WPS-3750
W12056110156.0064.004/6/8NBR     WPS-5682
W12056670456.0065.004/6/8.00FKM     WPS-630
W12056110256.0066.005/6/8NBR     WPS-6153
W12060670160.0068.004/6/8FKM     WPS-4911
W120601101 (Stock Item) 60.0068.006/8NBR     WPS-1008
W12060110160.0068.006/8NBR     WPS-5683
W12063Y501 (Stock Item) 63.0071.004.00/6.00/8.00PU     WPH-938
W12063670263.0071.004/6/9FKM     WPS-4849
W120631101 (Stock Item) 63.0071.006/8NBR     WPS-1054
W120651101 (Stock Item) 65.0073.006/8NBR     WPS-1104
W12065110165.0073.006/8NBR     WPS-5690
W12068110168.0076.004/6/8NBR     WPS-5641
W12070220170.0078.003.5/6/7.00NEOPRENE     WPS-7953
W12070L50270.0078.004/6/8PU     WPH-1158
W12070670170.0078.004/6/8FKM     WPS-1507
W12070Y501 (Stock Item) 70.0078.004/6/8.00PU     WPH-937
W120701101 (Stock Item) 70.0078.006/8NBR     WPS-1703
W12070110170.0078.006/8NBR     WPS-5700
W12070670270.0080.006/8FKM     WPS-6114
W12070110270.0080.006/8NBR     WPS-850
W12070110470.0083.005/7/10.80NBR     WPS-4986
W12075L50175.0083.004/6/8PU     WPH-2282
W120751101 (Stock Item) 75.0083.006/8NBR     WPS-1103
W12075110175.0083.006/8NBR     WPS-5679
W12076670176.2084.934/6/8FKM     WPS-5035
W12077110177.0085.003.9/6/8.00NBR     WPS-3333
W12080Y50180.0088.004.00/8.00PU     WPH-488
W12080670180.0088.004/6/8FKM     WPS-1505
W12080L50180.0088.006/8PU     WPH-209
W120801101 (Stock Item) 80.0088.006/8NBR     WPS-1102
W12080110180.0088.006/8NBR     WPS-5684
W120851101 (Stock Item) 85.0093.006/8NBR     WPS-1101
W12090590190.0098.004/6/8PU     WPH-1593
W12090670190.0098.004/6/8FKM     WPS-1508
W12090110290.0098.004/6/8NBR     WPS-2103
W12090340190.0098.006/8EPDM     WPS-5575
W120901101 (Stock Item) 90.0098.006/8NBR     WPS-995
W12090670490.0098.006/8/11FKM     WPS-6124
W1209090.00100.007/10NBR     WPS-1909
W12090670390.00102.004/6/8FKM     WPS-3650
W120951101 (Stock Item) 95.00103.006/8NBR     WPS-3109
W12095110195.00103.006/8NBR     WPS-5685
W12095110195.00103.006/8NBR     WPS-5699
W12100L501100.00108.004/6/8PU     WPH-598
W121006701100.00108.004/6/8FKM     WPS-1510
W121001101 (Stock Item) 100.00108.006/8NBR     WPS-1100
W121001101100.00108.006/8NBR     WPS-5689
W121001102100.00110.006/8NBR     WPS-4927
W121001104100.00112.007.00/12.00NBR     WPS-686
W121001103100.00120.0010/15NBR     WPS-6315
W121056701105.00117.005.5/8.2/11.00FKM     WPS-6673
W121051101 (Stock Item) 105.00117.008.2/11NBR     WPS-2175
W121101105110.00122.005.5/8.2/11NBR     WPS-1556
W121106704110.00122.005.5/8.5/11FKM     WPS-5993
W121106707110.00122.005.50/8.20/11.00FKM     WPS-7717
W121105901110.00122.005.50/8/11PU     WPH-1594
W121106705110.00122.006.00/8.00/12.00FKM     WPS-7023
W121101101 (Stock Item) 110.00122.008.2/11NBR     WPS-1068
W121101101110.00122.008.2/11NBR     WPS-5693
W121151101 (Stock Item) 115.00127.008.2/11NBR     WPS-1887
W121206703120.00132.005.5/8.2/11.00FKM     WPS-910
W121206702120.00132.005/7/10FKM     WPS-3936
W121201101 (Stock Item) 120.00132.008.2/11NBR     WPS-1095
W121201101120.00132.008.2/11NBR     WPS-5709
W1201206701120.00132.008/11FKM     WPS-2866
W121256701125.00137.005.5/8.2/11FKM     WPS-1550
W121251101 (Stock Item) 125.00137.008.2/11NBR     WPS-1012
W12125L501125.00137.008/11PU     WPH-2083
W121301101 (Stock Item) 130.00142.008.2/11NBR     WPS-1099
W121301101130.00142.008.2/11NBR     WPS-5710
W121351101 (Stock Item) 135.00147.008.2/11NBR     WPS-2173
W12140L501140.00152.005.20/7.7/10.40PU     WPH-940
W121406702140.00152.005.5/8.2/11FKM     WPS-6580
W121401103140.00152.005/7.70/11NBR     WPS-5239
W121401101 (Stock Item) 140.00152.008.2/11NBR     WPS-1098
W121406701140.00152.008.2/11FKM     WPS-2203
W121406703140.00153.005.00/8.00/11.00FKM     WPS-7178
W121451101145.00157.008.2/11NBR     WPS-5642
W121501102150.00160.005.5/8.2/11NBR     WPS-6765
W12150L501150.00162.005.5/8.20/11PU     WPH-2216
W121501101 (Stock Item) 150.00162.008.2/11NBR     WPS-858
W121506701150.00162.008.20/11FKM     WPS-3747
W121551101155.00167.005.50/8.20/11NBR     WPS-5678
W121556701155.00167.005.50/8.20/11FKM     WPS-6766
W121606701160.00172.005.5/8.2/11FKM     WPS-2861
W121601101 (Stock Item) 160.00172.008.2/11NBR     WPS-1097
W121606702160.00172.008/10/14FKM     WPS-1132
W121701101 (Stock Item) 170.00182.008.2/11NBR     WPS-1096
W121781101178.00192.008/9/11NBR     WPS-4943
W121801101 (Stock Item) 180.00192.005.5/8.2/11NBR     WPS-1555
W121801101180.00192.005.5/8.2/11NBR     WPS-5675
W121806702180.00192.005.5/8/11.50FKM     WPS-5167
W121901101 (Stock Item) 190.00202.008.2/11NBR     WPS-3606
W122001101 (Stock Item) 200.00212.005.5/8.2/11NBR     WPS-1552
W122001102200.00212.005.5/8.2/11NBR     WPS-6753
W122006701200.00212.005/8/11FKM     WPS-5364
W12200L501200.00220.006/8.6/11PU     WPH-1754
W122158701215.00230.006/8.60/11.00PU     WPH-1622
W122206701220.00235.006.70/9.5/13FKM     WPS-6370
W122201101 (Stock Item) 220.00235.006.70/9.50/13.00NBR     WPS-3607
W122301101230.00245.006.70/9.50/13.00NBR     WPS-148
W12240L501240.00260.006.5/9.5/13PU     WPH-2280
W122506701250.00265.006.50/8/12FKM     WPS-5573
W122801101280.00295.006.50/9.50/13.00NBR     WPS-4741
W122806701280.00298.006.00/9.00/13.00FKM     WPS-7970
W123206701320.00335.006.50/9.50/13.00FKM     WPS-2016
W123701101370.00384.006.50/9/13.00NBR     WPS-745
W123801102380.00395.006.5/9.5/13NBR     WPS-6321
W123801101380.00395.006.7/9.5/13NBR     WPS-6035
W123901101390.00405.006.50/9.00/13.00NBR     WPS-545
W124001101400.00415.006.50/9.50/13NBR     WPS-4740
W124006701400.00415.006.50/9.50/13.00FKM     WPS-2014
W124201101420.00435.006.5/9.5/13NBR     WPS-6842
W124601101460.00475.006.50/9.50/13.00NBR     WPS-7788
W124701101470.00485.009.5/13.00NBR     WPS-1959
W124901101490.00505.006.5/9.5/13NBR     WPS-461
W1205201101520.00535.009.5/13NBR     WPS-3373
W125601101560.00575.006.50/9.50/13.00NBR     WPS-3875
W125901101590.00605.009.50/13NBR     WPS-7254
W126001101600.00615.006.5/9.5/13NBR     WPS-6907
W126901101690.00705.006.50/9.50/13.00NBR     WPS-7805




For customised items please Click here
Login
