Profile : Piston Seals


Spareage : P42

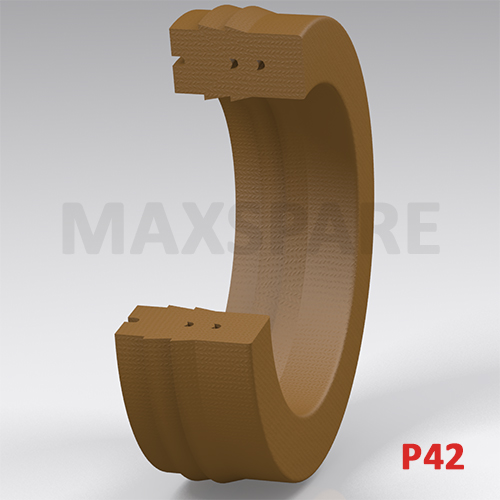

P42 Assembly

Details :
P42 seal is robust V-Packing seal. Though it is suitable for split piston, it is extremely suitable for medium duty to heavy duty application. The P42 seal accepts low & high pressure, vigorous conditions & also any misalignment between sealing gaps. The seal is a combination of a female adaptor centre ring & male adaptor. The centre ring is the main seal being flexible enough to retain high & low pressures. The female adaptor supports the centre ring from getting extruded against high pressures. The male adaptor helps in retaining the centre ring profile & distributing the pressure equally. Besides, P43 (1+2+1) is available with 1 extra centre ring to adjust groove height.
MATERIAL
Nitrile Rubber / Fabric 75/80 Shore A
OPERATING CONDITIONS
Temperature Range : -20° C to + 100° C
Pressure : 400 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
  • Medium to heavy duty single acting cylinder with split piston.
  • Also suitable for double acting cylinders.
FEATURES
  • Long life.
  • Accepts misalignment & uneven surfaces.
  • Any size upto 1500 mm diameter available.

Manufactured by: Max Spare Limited
Product ID: /details?id=7&name=p42


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P4200665016.5018.0011.50FKM     SAT-2697
P42010840110.0022.0014NBR/FABRIC     SAT-4186
P42012830512.7025.409.52NBR/FABRIC     SAT-431
P42014110114.0027.009.10NBR     SAT-3643
P42015830715.8723.7913.97NBR/FABRIC     SAT-962
P42015830415.8728.5813.50NBR     SAT-3497
P42016100116.0032.0011.00NBR/FABRIC     SAT-4660
P42016070116.0032.0016NBR/FABRIC     SAT-2921
P42016110116.0035.0012.00NBR     SAT-4609
P42018850118.0027.807.20FKM/FABRIC     SAT-297
P42018830318.0028.7512.5NBR/FABRIC     SAT-785
P42018830418.0030.0014NBR/FABRIC     SAT-2523
P42019830419.0531.759.52NBR/FABRIC     SAT-662
P42019830319.0532.2010.20NBR/FABRIC     SAT-1234
P42019830519.0544.4525.40NBR/FABRIC     SAT-3212
P42020100120.0032.0011.00NBR/FABRIC     SAT-4661
P42020831120.0032.009NBR/FABRIC     SAT-3189
P42020830920.0035.0011NBR/FABRIC     SAT-2304
P42020831020.0040.0020NBR/FABRIC     SAT-3098
P42023840123.0034.0010.00NBR/FABRIC     SAT-845
P42023830123.8047.6215.87NBR/FABRIC     SAT-4509
P42025833025.0033.0010.00NBR/FABRIC     SAT-1456
P42025831925.0035.0010NBR/FABRIC     SAT-2453
P42025833125.0037.0015.00NBR/FABRIC     SAT-4663
P42025832925.0037.0018.00NBR/FABRIC     SAT-4455
P42025690125.0038.0012.50FKM/FABRIC     SAT-4440
P42025831125.0040.0011.50NBR/FABRIC     SAT-319
P42025650125.0040.0012.00FKM/FABRIC     SAT-4590
P42025831825.0045.0011NBR/FABRIC     SAT-2157
P42025110125.4038.1015NBR     SAT-3715
P42026830126.0042.0024.00NBR/FABRIC     SAT-4209
P42026830226.0042.0025.00NBR/FABRIC     SAT-4227
P42028830928.0038.0010.50NBR/FABRIC     SAT-2452
P42028830528.0038.0011.2NBR/FABRIC     SAT-2222
P42028830328.0040.0010.50NBR/FABRIC     SAT-2596
P42028780128.5742.8523.40NBR     SAT-2928
P42028K10128.5744.4518.92NYLON     SAT-3759
P42029840129.0045.0022.00NBR/FABRIC     SAT-4709
P42030840230.0045.0017.00NBR/FABRIC     SAT-421
P42032830232.0040.006.50NBR/FABRIC     SAT-3382
P42032840132.0045.0020.00NBR/FABRIC     SAT-423
P42032830332.0050.0020.00NBR/FABRIC     SAT-934
P42034830134.0046.0012.50NBR/FABRIC     SAT-3142
P42034860134.0050.0012.00FKM/FABRIC     SAT-4485
P42034K20134.9247.6215NBR/FABRIC     SAT-413
P42035830735.0046.0012NBR/FABRIC     SAT-2223
P42035831035.0048.0020NBR/FABRIC     SAT-752
P42035850135.0050.0011FKM/FABRIC     SAT-429
P42035831335.0050.0011.50NBR/FABRIC     SAT-2418
P42035830235.0050.0018.75NBR/FABRIC     SAT-683
P42035080135.0055.0023.00NBR/FABRIC     SAT-3907
P42035831535.0062.0028.00NBR/FABRIC     SAT-3617
P42038070138.0055.0025.00NBR/FABRIC     SAT-841
P42040850140.0050.0016FKM/FABRIC     SAT-2765
P42040830640.0060.0015NBR/FABRIC     SAT-917
P42040830740.0082.0021NBR/FABRIC     SAT-3104
P42042830142.0661.8919.05NBR/FABRIC     SAT-2779
P42042840142.8661.9117.46NBR/FABRIC     SAT-946
P42044830144.4557.1513NBR/FABRIC     SAT-2443
P42044840144.4566.6715.87NBR/FABRIC     SAT-3959
P42045850145.0055.0016FKM/FABRIC     SAT-2733
P42045831645.0057.0021NBR/FABRIC     SAT-2606
P42045831345.0058.0025NBR/FABRIC     SAT-1612
P42045830245.0060.0014.82NBR/FABRIC     SAT-2601
P42045830145.0065.0014NBR     SAT-414
P42045100145.0065.0016NBR     SAT-3025
P42045831945.0065.0022.00NBR/FABRIC     SAT-301
P42046840146.2095.3040.00NBR/FABRIC     SAT-4124
P42047840147.0063.0012.80NBR/FABRIC     SAT-4012
P42047830547.0063.0018.40NBR/FABRIC     SAT-3263
P42047830447.7063.0013.50NBR     SAT-3251
P42048831248.0061.0013NBR/FABRIC     SAT-2777
P42048830248.0063.0011.7NBR/FABRIC     SAT-2282
P42048831348.0063.0011.80NBR/FABRIC     SAT-3064
P42048830748.0063.0012NBR/FABRIC     SAT-1458
P42048830348.0063.0012.50NBR/FABRIC     SAT-175
P42048700148.0063.0013FKM/BFT     SAT-2522
P42048860448.0063.0013.00FKM/FABRIC     SAT-614
P42048831148.0063.0014NBR/FABRIC     SAT-2425
P42048860648.0064.0013.20FKM/FABRIC     SAT-4613
P42048860548.0065.0013.20FKM/FABRIC     SAT-4612
P42050832250.0070.0014.80NBR/FABRIC     SAT-2707
P42050830250.0070.0030.00NBR/FABRIC     SAT-4235
P42050831550.0070.0038NBR/FABRIC     SAT-1311
P42050832650.0072.0025.00NBR/FABRIC     SAT-964
P42050832350.0075.0012.50NBR/FABRIC     SAT-2744
P42050L50150.8066.6717.46PU     PPA-3446
P42052070152.0070.0018.00NBR/FABRIC     SAT-912
P42055830355.0075.0039.5NBR/FABRIC     SAT-159
P42056850156.0068.0025.00FKM/FABRIC     SAT-590
P42056830356.0070.0020NBR/FABRIC     SAT-1019
P42059830159.0080.0028NBR/FABRIC     SAT-149
P42059830359.7580.0015.10NBR     SAT-3252
P42060834360.0072.0016.00NBR/FABRIC     SAT-694
P42060831560.0080.0010NBR/FABRIC     SAT-1135
P42060841260.0080.0012.50NBR/FABRIC     SAT-4698
P42060830560.0080.0014.6NBR/FABRIC     SAT-257
P42060850260.0080.0014.60NBR/FABRIC     SAT-1181
P42060833260.0080.0015NBR/FABRIC+NY     SAT-2806
P42060831460.0080.0015NBR/FABRIC     SAT-812
P42060833860.0080.0015.20NBR/FABRIC     SAT-182
P42060833460.0080.0017NBR/FABRIC     SAT-3132
P42060834260.0080.0020.00NBR/FABRIC     SAT-4561
P42060841360.0080.0030.00NBR/FABRIC     SAT-726
P42062840162.0080.0022.50NBR/FABRIC     SAT-1008
P42062830362.0082.0020.00NBR/FABRIC     SAT-3699
P42062830462.0082.0020.00NBR/FABRIC     SAT-952
P42063850163.0077.0015.00FKM/FABRIC     SAT-4748
P42063831963.0078.0016NBR/FABRIC     SAT-2831
P42063831863.0078.0022.50NBR/FABRIC     SAT-2692
P42063831463.0088.0015.00NBR/FABRIC     SAT-309
P42065850465.0080.0012FKM/FABRIC     SAT-2800
P42065830465.0085.0025.50NBR/FABRIC     SAT-2564
P42065830565.0093.0027NBR/FABRIC     SAT-3258
P42066860166.0080.0012.50FKM/FABRIC     SAT-4142
P42070830770.0083.0016.68NBR/FABRIC     SAT-2719
P42070831070.0088.6016.20NBR/FABRIC     SAT-4669
P42070830170.0090.0015NBR/FABRIC     SAT-1993
P42070830970.0090.0016.50NBR/FABRIC     SAT-4535
P42075840175.0095.0015.00NBR/FABRIC     SAT-4562
P42076830176.00100.0018NBR/FABRIC     SAT-2828
P42078830178.00101.6021.20NBR/FABRIC     SBT-2032
P42080851780.00100.0012FKM/FABRIC     SAT-2714
P42080833980.00100.0012.50NBR/FABRIC     SAT-4356
P42080852380.00100.0012.50FKM/FABRIC     SAT-4628
P42080834080.00100.0020.60NBR/FABRIC     SAT-4560
P42080L50180.00100.0021PU     PPA-3439
P42080831780.00100.0021NBR/FABRIC     SAT-1368
P42080833080.00100.0021.67NBR/FABRIC     SAT-2773
P42080832180.00100.0025NBR/FABRIC     SAT-302
P42082830682.00100.0014NBR/FABRIC     SAT-1764
P42082830882.50103.5021.00NBR/FABRIC     SBT-2729
P42082830782.55107.9528.57NBR/FABRIC     SBT-1946
P42085830285.00100.0022NBR/FABRIC     SAT-2706
P42085830385.00105.0015NBR/FABRIC     SBT-1981
P42088830188.90101.6013NBR/FABRIC     SBT-1952
P42088830288.90127.0038.10NBR/FABRIC     SBT-3068
P42090831190.00105.0021NBR/FABRIC     SBT-1768
P4209100190.00115.0025.40NBR     SBT-376
P42095830395.00115.0021.20NBR/FABRIC     SBT-3340
P42095830495.25120.6528.57NBR/FABRIC     SBT-572
P42098840198.42114.3021.59NBR/FABRIC     SBT-902
P42090830199.60125.0025.40NBR/FABRIC     SBT-2442
P421009001100.00120.0012.50NBR/FABRIC     SBT-649
P421008328100.00120.0015NBR/FABRIC     SBT-657
P421008335100.00120.0028.00NBR/FABRIC     SBT-3028
P421008325100.00125.0021NBR/FABRIC     SBT-1854
P421008501100.00125.0025.80NBR/FABRIC     SBT-967
P421008327100.00126.0025NBR/FABRIC     SBT-1897
P421008332100.00129.5032.50NBR/FABRIC     SBT-2511
P421008330100.00140.0025FKM/FABRIC     SBT-1466
P421018304101.60127.0023.50NBR/FABRIC     SBT-1787
P421028601102.20127.2026FKM/FABRIC     SBT-3097
P421058401105.00125.0017.00NBR/FABRIC     SBT-3217
P421068301106.00135.0022NBR/FABRIC     SBT-2030
P421088601108.00123.0018.00FKM/FABRIC     SBT-235
P421108401110.00125.0022.00NBR     SBT-3182
P421108315110.00134.0012NBR/FABRIC     SBT-2059
P421108306110.00140.0020.00NBR/FABRIC     SBT-2643
P421128301112.00138.0021.50NBR/FABRIC     SBT-2453
P421148301114.00127.0025NBR     SBT-2196
P421148401114.00130.0025.80NBR     SBT-231
P421208310120.00140.0025NBR/FABRIC     SBT-1974
P421208306120.00150.0040NBR/FABRIC     SBT-749
P421208403120.65146.0525.40NBR/FABRIC     SBT-412
P421258309125.00142.5020.00NBR/FABRIC     SBT-3170
P421258308125.00152.4023.00NBR/FABRIC     SBT-3096
P421288401128.50160.0029.00NBR/FABRIC     SBT-3287
P421308509130.00160.0018.50FKM/FABRIC     SBT-2154
P421308511130.00160.0026FKM/FABRIC     SBT-2255
P42130A601130.00160.0026.50NBR/FABRIC     SBT-714
P421306701130.00160.0028.00FKM     SBT-3017
P421308301130.00160.0029NBR/FABRIC     SBT-2169
P421358401135.00166.0020.00NBR/FABRIC     SBT-2980
P421408502140.00160.0029NBR/FABRIC     SBT-1754
P421408305140.00165.0022NBR/FABRIC     SBT-2363
P421498301149.00180.0025NBR/FABRIC     SBT-2129
P421508314150.00180.0023.80NBR/FABRIC     SBT-1997
P421508315150.00180.0030.50FKM     SBT-2052
P421508601150.00181.5031.50FKM/FABRIC     SBT-267
P421528303152.40177.8025.40NBR/FABRIC     SBT-629
P421558301155.00182.0022NBR/FABRIC     SBT-1944
P421608303160.00180.0025NBR/FABRIC     SBT-2306
P421608501160.00186.0029.00FKM/FABRIC     SBT-1661
P421608301160.00190.0024NBR/FABRIC     SBT-1939
P421708504170.00200.0032.50FKM     SBT-2922
P421708502170.00200.0033.50FKM/FABRIC     SBT-1748
P421708508170.00200.0037.50FKM/FABRIC     SBT-2212
P421708326170.00204.0015NBR/FABRIC     SBT-2436
P421708402170.00204.0033.00NBR/FABRIC     SBT-680
P421908501190.00220.0033.60FKM/FABRIC     SBT-1923
P421958303195.00225.0035NBR/FABRIC     SBT-127
P422008307200.00220.0023.80NBR/FABRIC     SBT-3003
P422008401200.00265.0065.00NBR/FABRIC     SBT-474
S592058401205.00230.0038.00NBR/FABRIC     SBT-3251
P422168301216.00250.0052NBR/FABRIC     SBT-1903
P422188301218.00250.0021.20NBR/FABRIC     SBT-1836
P422208501220.00250.0032.5FKM/FABRIC     SBT-134
P422208309220.00250.0033.50NBR/FABRIC     SBT-1790
P422208505220.00250.0037.50FKM/FABRIC     SBT-1800
P422208605220.00250.0037.50FKM/FABRIC     SBT-674
P422208510220.00254.0032.00FKM/FABRIC     SBT-425
P422218501221.00245.0030FKM/FABRIC     SBT-1943
P422218301221.00254.0020NBR/FABRIC     SBT-2303
P422248301224.00254.0032.00NBR/FABRIC     SBT-2617
P422308301230.00260.0033.50NBR/FABRIC     SBT-952
P422308302230.00260.0037NBR/FABRIC     SBT-2452
P422308304230.00260.0037.00NBR     SBT-217
P422498501249.50280.0033.50FKM/FABRIC     SBT-3094
P422508310250.00280.0033.00NBR/FABRIC     SBT-640
P422508505250.00280.0035FKM/FABRIC     SBT-1329
P422508402250.00281.5833.50NBR/FABRIC     SBT-3274
P422508403250.00282.6833.50NBR/FABRIC     SBT-3275
P422518301251.00282.0034.00NBR/FABRIC     SBT-1559
P422678301267.00288.0020NBR/FABRIC     SBT-2043
P422688301268.29298.4545.24NBR/FABRIC     SBT-2564
P422708305270.00300.0032.50NBR/FABRIC     SBT-2611
P422708301270.00300.0033NBR/FABRIC     SBT-1368
P422718501271.00307.0038.00FKM/FABRIC     SCT-1238
P422748301274.50300.0031.50NBR/FABRIC     SBT-1900
P422758301275.00300.0032.50NBR/FABRIC     SBT-1953
P422808504280.00320.0041.50FKM/FABRIC     SCT-291
P422808401280.00321.0038.00NBR/FABRIC     SCT-1239
P422848301284.00304.8033.4NBR/FABRIC     SCT-704
P422908602290.00320.7051.00FKM/FABRIC     SCT-1190
P422908604290.00320.8021.00FKM/FABRIC     SCT-1192
P422908603290.00321.0043.50FKM/FABRIC     SCT-1191
P422908309290.00335.0030.00NBR/FABRIC     SCT-1069
P422958301295.00330.0031NBR/FABRIC     SCT-827
P423008309300.00330.0025.00NBR/FABRIC     SCT-1050
P423008308300.00335.0025.00NBR/FABRIC     SCT-1007
P423008305300.00340.0051.8NBR/FABRIC     SCT-484
P423048302304.00340.0030NBR/FABRIC     SCT-935
P423108501310.00340.0033.50FKM/FABRIC     SCT-197
P423108301310.00350.0040NBR/FABRIC     SCT-748
P423158301315.60355.6040NBR/FABRIC     SCT-778
P4232008501320.00350.0035FKM/FABRIC     SCT-570
P4232008601320.00360.0051.80FKM/FABRIC     SCT-364
P4232008502320.00360.0051.80FKM/FABRIC     SCT-755
P423368301336.00360.0024.00NBR/FABRIC     SCT-1024
P423428401342.90381.0038.10NBR/FABRIC     SCT-101
P423608303360.00392.0044NBR/FABRIC     SCT-871
P423618501360.00400.0028.00FKM/FABRIC     SCT-148
P423708304370.00410.5041.50NBR/FABRIC     SCT-1262
P423708302370.00415.0040NBR/FABRIC     SCT-712
P424008301400.00425.0025.00NBR/FABRIC     SCT-253
P424198401419.10457.2030.00NBR/FABRIC     SCT-1089
P424808401480.00520.0040.30NBR/FABRIC     SCT-1208
P425008301500.00540.0045.00NBR/FABRIC     SCT-256
P425408401540.00580.0051.80NBR/FABRIC     SCT-111
P425508401550.00580.0033.50NBR/FABRIC     SCT-1250
P425608301560.00602.0044NBR/FABRIC     SCT-477
P426108401610.00650.0040.00NBR/FABRIC     SCT-1203
P426358401635.00660.4025.40NBR/FABRIC     SCT-1244




For customised items please Click here
Login
