Profile : Symmetrical Seals


Spareage : E25

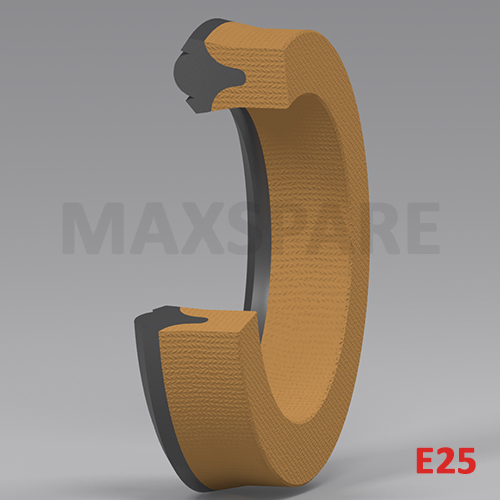

E25 Assembly

Details :
E25 seal is a single acting robust design seal used for medium to heavy duty applications. This seal comprises of a rubberised fabric U seal base bonded to a rubber energiser. The seal section is pre-loaded by the housing when installed to ensure effective sealing at low pressure. When the pressure increases the rubber energises the U seal to increase the sealing area and hence the efficiency of the seal. The strength and durability of the rubberized fabric combines with its ability to retain lubricant keeping friction and wear to a minimum.
MATERIAL
Nitrile Rubber with fabric reinforcement 80/85 Shore A
FKM with fabric reinforcement 80/85 Shore A
OPERATING CONDITIONS
Temperature Range : -20° C to + 100° C (NBR)
: -20° C to + 220° C (FKM)
Pressure : 250 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
  • Medium to heavy duty hydraulic presses.
  • Standard cylinders, telescopic cylinders.
  • Machine tools.
  • Can also be used as a piston seal.

Manufactured by: Max Spare Limited
Product ID: /details?id=23&name=e25


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
X   NBR     EXP-2
E2500583015.0012.005.90NBR/FABRIC     SRV-2002
E2500883018.0014.004.50NBR/FABRIC     SRV-958
E25009O5019.5215.873.50HYT-HYTREL     PPA-3187
E25010830710.0017.006.14NBR/FABRIC     SRV-1796
E25012B30112.0020.005.70NBR/FABRIC     SRV-454
E25012640112.7019.053.20FKM     SRV-1970
E25012O50112.7019.053.50HYT-HYTREL     PPA-2899
E25012830412.7022.227NBR/FABRIC     SRV-1654
E25014830514.0022.006NBR/FABRIC     SRV-1978
E25014830614.0022.007NBR/FABRIC     SRV-2117
E25014830114.0022.008.00NBR/FABRIC     SRV-914
E25014830414.0030.006NBR/FABRIC     SRV-1592
E25014830714.3022.006.00NBR/FABRIC     SRV-254
E25015O50115.8722.223.50HYT-HYTREL     PPA-2924
E25016830316.0024.005.70NBR/FABRIC     SRV-1035
E25016840116.0024.006.00NBR/FABRIC     SRV-2200
E25018830418.0026.005.70NBR/FABRIC     SRV-113
E25018830118.0026.006NBR/FABRIC     SRV-519
E25020830820.0026.005NBR/FABRIC     SRV-927
E25020831020.0028.005.7NBR/FABRIC     SRV-1057
E25020830920.0028.006.00NBR/FABRIC     SRV-2066
E25020830220.0028.006.4NBR/FABRIC     SRV-911
E25022830422.0030.005.70NBR/FABRIC     SRV-126
E25022830122.0030.006NBR/FABRIC     SRV-637
E25022830322.0030.007.00NBR/FABRIC     SRV-1087
E250248303.24.0032.005.70NBR/FABRIC     SRV-2196
E25024830324.0032.006NBR/FABRIC     SRV-1833
E25025830525.0033.006NBR/FABRIC     SRV-1704
E25025830625.0033.006.10NBR/FABRIC     SRV-2110
E25025830225.0033.007NBR/FABRIC     SRV-612
E25025830825.0035.007.00NBR/FABRIC     SRV-363
E25025830925.0040.009.30NBR/FABRIC     SRV-451
E25026830226.0034.005.30NBR/FABRIC     SRV-1996
E25026B30126.0034.005.70NBR/FABRIC     SRV-203
E25028850228.0036.005.70FKM/FABRIC     SRV-2180
E25028830428.0036.006.00NBR/FABRIC     SRV-398
E25030830730.0038.005.00NBR/FABRIC     SRV-107
E25030830830.0038.006.00NBR/FABRIC     SRV-368
E25030830630.0040.006.50NBR/FABRIC     SRV-2109
E25032830632.0040.005.00NBR/FABRIC     SRV-2274
E25032830432.0040.006.00NBR/FABRIC     SRV-779
E25032830232.0040.007NBR/FABRIC     SRV-385
E25032830532.0040.008.00NBR/FABRIC     SRV-2003
E25035830735.0043.006NBR/FABRIC     SRV-1594
E25035830235.0043.007NBR/FABRIC     SRV-626
E25035830935.0043.007.30NBR/FABRIC     SRV-2233
E25035830835.0045.007.50NBR/FABRIC     SRV-2120
E25036830336.0043.006NBR/FABRIC     SRV-1103
E25036830536.0044.005.00NBR     SRV-108
E25036830636.0044.005.80NBR/FABRIC     SRV-1297
E25036850336.0044.006.00FKM/FABRIC     SRV-217
E25038830138.0046.005.50NBR/FABRIC     SRV-106
E23038840138.0053.0011.00NBR/FABRIC     SRV-114
E25040832040.0048.005.0NBR/FABRIC     SRV-2273
E25040850240.0048.005.80FKM/FABRIC     SRV-1869
E25040831840.0048.006NBR/FABRIC     SRV-1593
E25040831540.0048.006NBR/FABRIC     SRV-409
E25040831940.0048.007.00NBR/FABRIC     SRV-2106
E25040850340.0050.006.00FKM/FABRIC     SRV-2213
E25040850440.0050.007.00FKM/FABRIC     SRV-374
E25040831740.0052.008.6NBR/FABRIC     SRV-1453
E25040832140.0055.0010.00NBR/FABRIC     SRV-891
E25040831640.0060.0012NBR/FABRIC     SRV-640
E25042090142.0050.007.50NBR     SRV-1937
E25042830542.0052.008.50NBR/FABRIC     SRV-1600
E25044830144.0055.0010.00NBR/FABRIC     SRV-2272
E25045830145.0055.0010NBR/FABRIC     SRV-540
E25045850345.0055.007.00FKM/FABRIC     SRV-216
E25045830245.0055.007.5NBR/FABRIC     SRV-633
E25045830645.0060.0012.50NBR/FABRIC     SRV-1631
E25045830745.0060.008NBR/FABRIC     SRV-2126
E25048830148.0058.007.30NBR     SRV-2284
E25050831350.0060.007.00NBR/FABRIC     SRV-2225
E25050830850.0060.007.5NBR/FABRIC     SRV-733
E25050830650.0062.0010NBR/FABRIC     SRV-1223
E25050850650.0062.009.00FKM     SRV-2174
E25050650150.8060.735.56FKM/FABRIC     SRV-174
E25054L50154.0064.008.30PU     PPA-1674
E25055830455.0065.007.30NBR/FABRIC     SRV-1893
E25055830555.0065.007.50NBR/FABRIC     SRV-1934
E25055830755.0065.008.00NBR/FABRIC     SRV-121
E25055850155.0067.0011FKM/FABRIC     SRV-1190
E25056830356.0066.007.50NBR/FABRIC     SRV-2283
E25056850456.0068.0010FKM     SRV-1822
E25060830960.0068.005.50NBR/FABRIC     SRV-101
E25060850260.0070.007.5FKM/FABRIC     SRV-1523
E25060830760.0070.007.50NBR/FABRIC     SRV-658
E25060830860.0082.0011NBR/FABRIC     SRV-2001
E25063850163.0075.009FKM/FABRIC     SRV-1826
E25063830163.8077.505.80NBR/FABRIC     SRV-434
E25065830965.0073.008.50NBR/FABRIC     SRV-342
E25065830865.0075.007.40NBR     SRV-1710
E25065830465.0077.009.60NBR/FABRIC     SRV-1074
E25070830670.0082.007.5NBR/FABRIC     SRV-154
E25070830470.0082.009NBR/FABRIC     SRV-1310
E25070850270.0082.009.50FKM/FABRIC     SRV-436
E25070830770.0090.0012.50NBR/FABRIC     SRV-1606
E25070830970.0090.0013.80NBR/FABRIC     SRV-2214
E25070830870.0090.0016NBR/FABRIC     SRV-1843
E25071650171.0080.008.00FKM/FABRIC     SRV-277
E25075850275.0087.009.00FKM/FABRIC     SRV-218
E25075830175.0087.009.50NBR/FABRIC     SRV-1696
E25075840175.0095.0015.00NBR/FABRIC     SRV-2268
E25075830275.00100.0020NBR/FABRIC     SRV-1844
E25080830980.0088.005.00NBR/FABRIC     SRV-2280
E25080850380.0092.0010FKM/FABRIC     SRV-1219
E25080830780.0092.008.8NBR/FABRIC     SRV-1302
E25080830580.0092.009NBR/FABRIC     SRV-649
E25080850480.0095.0011.30FKM/FABRIC     SRV-1267
E25080830680.0095.0012NBR/FABRIC     SRV-1227
E25080830880.00100.0012.50NBR/FABRIC     SRV-1607
E25082840182.55101.609.52NBR/FABRIC     SRV-356
E25085830485.0097.009NBR/FABRIC     SRV-1532
E25085100185.0097.009NBR/FABRIC     SRV-1933
E25085830185.00100.0012NBR/FABRIC     SRV-1897
E25085830585.00105.009.00NBR/FABRIC     SRV-1993
E25088110188.90100.726.98NBR     SRV-1898
E25090850690.00102.0010FKM/FABRIC     SRV-1935
E25090850790.00102.009.00FKM/FABRIC     SRV-123
E25090830890.00102.009.00NBR/FABRIC     SRV-196
E25090830790.00102.009.50NBR/FABRIC     SRV-1697
E25090830490.00105.0011.30NBR/FABRIC     SRV-629
E25090830690.00110.0012.50NBR/FABRIC     SRV-1632
E25095110195.25107.076.98NBR     SRV-2108
E25095D60195.25107.959.52HNBR/FABRIC     SRV-1518
E251008309100.00110.007.20NBR/FABRIC     SRV-444
E251008307100.00110.007.30NBR/FABRIC     SRV-2243
E251008303100.00110.007.50NBR/FABRIC     SRV-1216
E251008306100.00110.007.50NBR/FABRIC     SRV-2215
E251008308100.00110.008.00NBR/FABRIC     SRV-209
E251008304100.00115.0011.3NBR/FABRIC     SRV-1502
E251008301100.00115.0011.3NBR/FABRIC     SRV-424
E251008302100.00115.0012NBR/FABRIC     SRV-845
E251008305100.00116.0014NBR/FABRIC     SRV-1757
E251011102101.60113.4210.16NBR     SRV-1889
E251011101101.60113.426.98NBR     SRV-1890
E251011105101.60113.4314.27NBR     SRV-201
E251011103101.60114.306.98NBR     SRV-2184
E251058501105.00120.0011.50NBR/FABRIC     SRV-2198
E251078301107.95133.3512.70NBR/FABRIC     SRV-269
E251108502110.00125.0011FKM/FABRIC     SRV-1062
E251108308110.00125.0011.30NBR/FABRIC     SRV-1737
E251108310110.00125.0011.30NBR/FABRIC     SRV-307
E251108503110.00125.0011.50FKM/FABRIC     SRV-437
E251141101114.30127.0010.16NBR     SRV-1761
E251141103114.30127.0014.90NBR     SRV-1785
E251141102114.30127.006.98NBR     SRV-1780
E261158302115.00130.0011NBR/FABRIC     SRV-1551
E251158302115.00130.0012NBR/FABRIC     SRV-2250
E251158303115.00135.0012.50NBR/FABRIC     SRV-127
E251208302120.00135.0011.30NBR/FABRIC     SRV-924
E251208304120.65130.179.52NBR/FABRIC     SRV-1980
E251258301125.00140.0011.3NBR/FABRIC     SRV-691
E251258303125.00140.0012.00NBR/FABRIC     SRV-329
E251258302125.00145.0018NBR/FABRIC     SRV-1850
E251271102127.00138.8310.16NBR     SRV-1884
E251271101127.00138.836.98NBR     SRV-1883
E251358302135.00150.009.20NBR/FABRIC     SRV-426
E251391101139.70152.406.98NBR     SRV-253
E251408304140.00160.0015NBR/FABRIC     SRV-639
E251408302140.00160.0016NBR/FABRIC     SRV-846
E251508301150.00165.0011NBR/FABRIC     SRV-1931
E25150L501150.00170.0015PU     PPA-3445
E251528301152.40184.1515.87NBR/FABRIC     SRV-270
E251608303160.00180.0014.00NBR/FABRIC     SRV-425
E251602201160.00180.0015NBR/FABRIC     SRV-242
E251658301165.00185.0015.00NBR/FABRIC     SRV-261
E251718301171.00185.0011NBR/FABRIC     SRV-1930
E252008305200.00220.0015NBR/FABRIC     SRV-1973
E252208302220.00240.0015.00NBR/FABRIC     SRV-2202
E25270D601270.00300.0022.5HNBR/FABRIC     SRV-1371
E252708501270.00300.0023.00FKM/FABRIC     SRV-271
E252708302270.00302.0022.50NBR/FABRIC     SRV-162
E252758301275.00300.0019.00NBR/FABRIC     SRV-2132
E252808401280.00300.0016.50NBR/FABRIC     SRV-2238
E252881001288.00320.0022.00NBR/FABRIC     SRV-134
E253001001300.00320.0015.00NBR/FABRIC     SRV-1977
E253008302300.00330.0021.50NBR/FABRIC     SRV-2199
E253218305321.00335.0015NBR/FABRIC     SRV-1972
E25349S401349.25374.6511.93HNBR     SRV-420
E253708301370.00400.0020.00NBR/FABRIC     SRV-118
E253808301380.00410.0021.50NBR/FABRIC     SRV-2244
E253998301399.00430.0022.50NBR/FABRIC     SRV-193
E25400D601400.00430.0022.5HNBR/FABRIC     SRV-1372
E254008501400.00430.0023.00FKM/FABRIC     SRV-159
E25457S401457.20488.9414.85HNBR     SRV-421
E25552S401552.45584.1914.85HNBR     SRV-412
E25615S401615.95654.0518.04HNBR     SRV-325
E25641S401641.35679.4522.22HNBR     SRV-380
E25673S401673.10704.8424.40HNBR     SRV-378
E25673Y101673.10711.2018.03NBR     SRV-430
E25685S401685.80717.5414.85HNBR     SRV-413
E25768S401768.35800.0924.40HNBR     SRV-379
E25790S401790.57828.6718.04HNBR     SRV-326
E25812S401812.80850.9022.22HNBR     SRV-381
E259171101917.57955.6718.03NBR     SRV-397
E25999Y1011085.851123.9528.57NBR     SRV-399
