E18: Hydraulic Symmetrical Sealing Solutions

Max Spare : E18

Profile : Symmetrical Seals

Details :

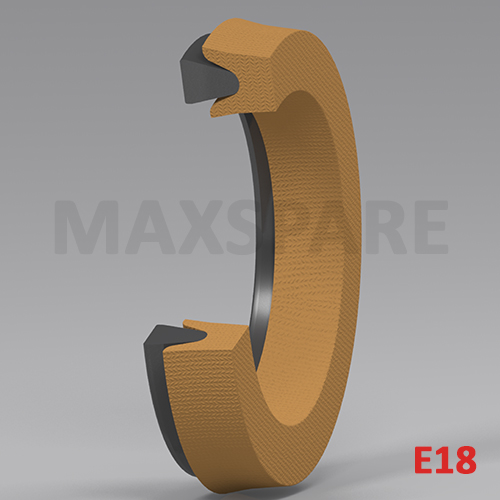

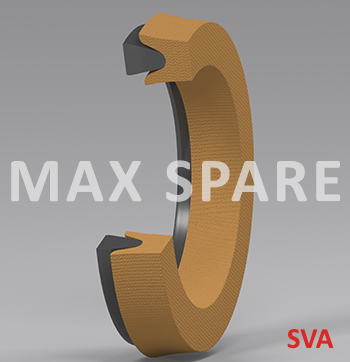

E18 seal is a single acting seal used for medium duty applications. This seal comprises of a rubberised fabric U seal and rubber header ring. The rubber energizer ring provides extra pretension on the sealing lip of the u seal, so it ensures effective sealing at low pressure. When the pressure increases the rubber energises the ‘U’ seal to increase the sealing area and hence the efficiency of the seal.

MATERIAL

Seal	:	Nitrile Rubber with
: fabric reinforcement 80/85 Shore A
Energizer	:	Nitrile rubber 80/85 Shore A

OPERATING CONDITIONS

Temperature Range	:	-20° C to + 100° C
Pressure	:	250 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Medium to heavy duty hydraulic cylinders.
Requires split gland.
Can also be used as a piston seal.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
E180108301	10.00	22.00	13	NBR/FABRIC	SAT-3059
E180128303	12.00	27.00	12	NBR/FABRIC	SAT-3380
E180128304	12.00	27.00	15.00	NBR	SAT-4689
E180126601	12.70	19.05	9.52	NBR/FABRIC	SAT-3416
E180141001	14.00	20.00	4.80	ACETAL	PPA-3479
E180140701	14.00	22.00	8	NBR/FABRIC	SAT-2920
E180146702	14.00	24.00	5.80	FKM	SAT-2468
E180148302	14.28	27.00	15.87	NBR/FABRIC	SAT-892
E180151001	15.00	24.00	6	NBR	SAT-844
E1800151001	15.00	24.00	6.00	NYLON	PPA-3476
E18015AF01	15.00	25.00	6.22	FKM	SAT-2985
E180156601	15.00	30.00	10.00	NBR/FABRIC	SAT-3415
E180168601	16.00	24.50	6.40	FKM/FABRIC	SAT-574
E180167201	16.00	25.50	7.00	FKM/FABRIC	SAT-928
E180168304	16.00	26.50	8.25	PU	SAT-572
E180181202	18.00	26.00	5.50	NYLON	PPA-2199
E180188502	18.00	26.00	6.50	FKM/FABRIC	SAT-4126
E180188302	18.00	26.00	6.80	NBR/FABRIC	SAT-1740
E180188501	18.00	28.00	8	FKM/FABRIC	SAT-1741
E180188306	18.00	28.00	9	NBR/FABRIC	SAT-3548
E180188503	18.00	30.00	7	FKM/FABRIC	SAT-4125
E180198301	19.00	38.00	15.00	NBR/FABRIC	SAT-3729
E180201001	20.00	28.00	6	NBR	SUB-2659
E18020	20.00	28.00	7.70	ACETAL	PPA-2826
E180208512	20.00	28.00	7.70	FKM/FABRIC	SAT-3659
E180201002	20.00	28.00	8	ACETAL	PPA-2753
E180208504	20.00	28.00	8	FKM/FABRIC	SAT-3273
E180201002	20.00	28.00	8	NBR	SAT-3570
E180208511	20.00	30.00	7	ACETAL	PPA-2825
E180208511	20.00	30.00	7	FKM/FABRIC	SAT-3658
E180208601	20.00	30.00	8.00	FKM/FABRIC	SAT-171
E180208308	20.00	30.00	9	ACETAL	PPA-2752
E180208308	20.00	30.00	9	NBR	SAT-3571
E180201101	20.00	30.00	9.00	NYLON	PPA-3034
E180201101T	20.00	30.00	9.00	NBR/FABRIC	SAT-1827
E180208303	20.00	32.00	7.5	NBR/FABRIC	SAT-1331
E180208503	20.00	34.00	14	FKM	SAT-3125
E180208505	20.00	35.00	10	FKM/FABRIC	SAT-3274
E180200801	20.00	35.00	11	NBR	SAT-2850
E180208513	20.00	35.00	7.50	FKM/FABRIC	SAT-427
E180208309	20.00	38.00	10	NBR/FABRIC	SAT-3671
E180226601	22.00	30.00	4.80	FKM	SAT-4178
E180228307	22.00	32.00	9.50	NBR/FABRIC	SAT-3088
E180237201	23.00	32.00	8.25	ACETAL	PPA-217
E180237201	23.00	32.00	8.25	FKM/FABRIC	SAT-842
E180248301	24.00	36.00	7.50	NBR/FABRIC	SAT-170
E180248401	24.00	48.00	12.00	NBR/FABRIC	SAT-4231
E180257202	25.00	33.00	8.20	FKM/FABRIC	SAT-4648
E180258307	25.00	40.00	9.5	NBR/FABRIC	SAT-1387
E180257201	25.00	40.00	9.70	FKM/FABRIC	SAT-4647
E180258307	25.40	34.92	10	NBR/FABRIC	SAT-3061
E180251001	25.40	38.10	14.30	NBR	SAT-853
E180286501	28.00	36.00	5.75/7	FKM/FABRIC	SAT-3418
E180281001	28.00	38.00	9	ACETAL	PPA-2783
E180281102	28.00	38.00	9	NBR/FABRIC	SAT-3449
E180288303	28.00	40.00	9.00	NBR/FABRIC	SAT-814
E18028B301	28.00	40.00	9.80	ACETAL	PPA-195
E18028B301	28.00	40.00	9.80	NBR/FABRIC	SAT-753
E180281101	28.57	48.41	12.69	NBR/FABRIC	SAT-2904
E180308304	30.00	40.00	5	NBR/FABRIC	SAT-1948
E180307201	30.00	40.00	9.80	ACETAL	PPA-196
E180307201	30.00	40.00	9.80	FKM/FABRIC	SAT-754
E180308307	30.00	45.00	20	NBR/FABRIC	SAT-2984
E180308302	30.00	45.00	9	NBR/FABRIC	SAT-1252
E180308308	30.00	45.00	9.50	NBR/FABRIC	SAT-589
E180308305	30.00	50.00	12	NBR/FABRIC	SAT-2025
E180305901	30.00	55.00	18	PU	PPA-1353
E180311001	31.75	47.63	19.05	NBR/FABRIC	SAT-3710
E180328401	32.00	48.00	20	NBR/FABRIC	SAT-3983
E180328301	32.00	52.00	18	NBR/FABRIC	SAT-1945
E180358305	35.00	50.00	10	NBR/FABRIC	SAT-1893
E180358307	35.00	50.00	11.50	NBR/FABRIC	SAT-3174
E180358501	35.00	50.00	9.50	FKM/FABRIC	SAT-1517
E180358301	35.00	55.00	12.50	NBR/FABRIC	SAT-2582
E180388301	38.00	50.00	8.60	NBR/FABRIC	SAT-2566
E180388302	38.10	53.97	19.05	NBR/FABRIC	SAT-3267
E180408312	40.00	50.00	13	NBR/FABRIC	SAT-2438
E180406501	40.00	60.00	12.50	FKM	SAT-3821
E180400601	40.00	60.00	13	NBR	SAT-3854
E180428301	42.00	54.00	7.50	NBR/FABRIC	SAT-3302
E180438301	43.00	63.00	12.50	NBR/FABRIC	SAT-2583
E180448303	44.00	70.00	15.50	NBR/FABRIC+CNT	SAT-2821
E180448303	44.00	70.00	15.50	NBR/FABRIC	SAT-3150
E180448302	44.45	63.50	11.80	NBR/FABRIC	SAT-1193
E180458401	45.00	60.00	7.5/9.50	NBR/FABRIC	SAT-2236
E180458311	45.00	63.20	16.30	NBR/FABRIC+NY	SAT-2801
E180458310	45.00	65.00	12	NBR/FABRIC	SAT-2683
E180458308	45.00	65.00	12.50	NBR/FABRIC	SAT-2287
E180458312	45.00	65.00	13.30	NBR/FABRIC+CNT	SAT-2816
E180458313	45.00	70.00	15/18	NBR/FABRIC	SAT-3270
E180471101	47.62	67.46	12.69	NBR/FABRIC	SAT-3133
E180488302	48.00	63.00	9.5	NBR/FABRIC	SAT-1332
E180488303	48.00	70.00	17	NBR/FABRIC	SAT-3213
E180508311	50.00	70.00	12.20	NBR/FABRIC	SAT-3167
E180506601	50.00	70.00	12.5	NBR/FABRIC	SAT-1521
E180558501	55.00	75.00	12	FKM	SAT-3630
E180558304.	55.00	75.00	12.50	NBR/FABRIC	SAT-4136
E180558304	55.00	75.00	24	NBR/FABRIC	SAT-2983
E180578301	57.15	76.20	10.41	NBR/FABRIC	SAT-3102
E180598301	59.05	79.37	15.55	NBR/FABRIC	SAT-2902
E180608315	60.00	80.00	10/12	NBR/FABRIC	SAT-2165
E180608310	60.00	80.00	12.5	NBR/FABRIC	SAT-1670
E180606601	60.00	80.00	12.50	NBR/FABRIC	SAT-1100
E180608503	60.00	80.00	13	FKM/FABRIC	SAT-386
E180638401	63.00	80.00	24	NBR/FABRIC	SAT-3982
E180636701	63.00	82.00	10.00	FKM/FABRIC	SAT-896
E180631101	63.50	86.90	12.53	NBR/FABRIC	SAT-3404
E180638301	63.50	88.90	34.92	NBR/FABRIC	SAT-4673
E180658306	65.00	80.00	10.00	NBR/FABRIC	SAT-4543
E180658302	65.00	80.00	11.30	NBR/FABRIC	SAT-1146
E180688301	68.00	80.00	12	NBR/FABRIC	SAT-3618
E180708307	70.00	90.00	12.5	NBR/FABRIC	SAT-1671
E180708310	70.00	90.00	22	NBR/FABRIC	SAT-3576
E180708401	70.00	90.00	24	NBR/FABRIC	SAT-3981
E180701101	70.00	100.00	16	NBR	SAT-3532
E180750701	75.00	90.00	9.80	NBR/FABRIC	SAT-2535
E180758303	75.00	95.00	12.50	NBR/FABRIC	SAT-164
E180806501	80.00	90.00	7	FKM/FABRIC	SAT-2556
E180808302	80.00	100.00	10	NBR/FABRIC	SAT-3573
E180808304	80.00	100.00	12.50	NBR/FABRIC	SAT-1088
E180808311	80.00	100.00	12.50	NBR/FABRIC	SAT-165
E180808308	80.00	100.00	13.50	NBR/FABRIC	SAT-3378
E180808308	80.00	100.00	24	NBR/FABRIC	SAT-3575
E180808501	80.00	100.00	25.2	FKM/FABRIC	SAT-1758
E180808312	80.00	101.60	16.50	NBR/FABRIC	SBT-608
E180808310	80.00	105.00	12.80	NBR/FABRIC	SBT-2644
E180858307	85.00	100.00	12.50	NBR/FABRIC	SAT-166
E180858309	85.00	105.00	12.50	NBR/FABRIC	SBT-122
E180908307	90.00	110.00	12.5	NBR/FABRIC	SBT-1276
E180908310	90.00	110.00	13	NBR/FABRIC	SBT-2304
E180908308	90.00	115.00	15.5	NBR/FABRIC	SBT-1277
E180958304	95.00	120.00	17.45	NBR/FABRIC	SBT-2149
E181008310	100.00	115.00	13	NBR/FABRIC	SBT-965
E181008322	100.00	120.00	20	NBR/FABRIC	SBT-2054
E181008316	100.00	125.00	15.5	NBR/FABRIC	SBT-1280
E181008502	100.00	125.00	15.50	FKM	SBT-301
E181008305	100.00	125.00	17.5	NBR	SBT-672
E181008501	100.00	125.00	32	FKM/FABRIC	SBT-132
E181018301	101.60	127.00	16	NBR/FABRIC	SBT-947
E18105E301	105.00	120.00	10	NBR/FABRIC	SBT-1809
E181056601	105.00	125.00	12.5	FKM	SBT-1505
E181058303	105.00	125.00	12.50	NBR/FABRIC	SBT-3210
E18110B301	110.00	130.00	13.00	NBR/FABRIC	SBT-3191
E181108310	110.00	135.00	15	NBR/FABRIC	SBT-3171
E181108309	110.00	135.00	20	NBR/FABRIC	SBT-1970
E181128301	112.00	120.00	10	NBR/FABRIC	SBT-1801
E181158307	115.00	135.00	16.50	NBR/FABRIC	SBT-668
E181158304	115.00	140.00	15	NBR/FABRIC	SBT-2544
E181158306	115.00	140.00	15.50	NBR/FABRIC	SBT-125
E181158305	115.00	140.00	15.50	NBR/FABRIC	SBT-3063
E18117E301	117.00	137.00	24	NBR/FABRIC	SBT-1918
E181208304	120.00	140.00	12.5	NBR/FABRIC	SBT-733
E183208601	120.00	140.00	14.00	FKM/FABRIC	SBT-3149
E181208501	120.00	145.00	32	NBR	SBT-2252
E181208310	120.00	150.00	19	NBR/FABRIC	SBT-881
E181258306	125.00	150.00	13	NBR/FABRIC	SBT-2543
E181258303	125.00	150.00	13	NBR/FABRIC	SBT-927
E181258306	125.00	150.00	14.30	NBR/FABRIC	SBT-1838
E181278302	127.00	152.40	17	NBR/FABRIC	SBT-948
E181308304	130.00	160.00	15.00	NBR/FABRIC	SBT-704
E181308302	130.00	160.00	18.8	NBR/FABRIC	SBT-1282
E181308303	130.00	160.00	19.00	NBR/FABRIC	SBT-384
E181358302	135.00	160.00	16.00	NBR/FABRIC	SBT-587
E181408303	140.00	165.00	32	NBR/FABRIC	SBT-377
E181508307	150.00	180.00	20	NBR/FABRIC	SBT-2340
E181588301	158.75	190.50	38.10	NBR/FABRIC	SBT-2199
E181608305	160.00	190.00	15.00	NBR/FABRIC	SBT-705
E181658301	165.10	196.85	16.25	NBR/FABRIC	SBT-2240
E181708301	170.00	200.00	18.8	NBR/FABRIC	SBT-1284
E181708401	170.00	200.00	20.00	NBR/FABRIC	SBT-525
E181728301	172.00	200.00	19.60	NBR/FABRIC	SBT-453
E181758302	175.00	205.00	25.00	NBR/FABRIC	SBT-1625
E181808305	180.00	210.00	19	NBR/FABRIC	SBT-2445
E181901001	190.50	222.25	38.10	NBR	SBT-448
E181968301	196.00	226.00	21.00	NBR/FABRIC	SBT-2637
E182008301	200.00	230.00	15.00	NBR/FABRIC	SBT-703
E182008401	200.00	230.00	38.00	NBR/FABRIC	SBT-369
E182188303	218.00	242.00	15.00	NBR/FABRIC	SBT-3367
E182201006	220.00	250.00	30	NBR/FABRIC	SBT-2950
E182208401	220.00	260.00	25.00	NBR/FABRIC	SUM-137
E182308303	230.00	250.00	10.50	NBR/FABRIC	SBT-1780
E182348401	234.95	266.70	38.10	NBR/FABRIC	SBT-2977
E182408301	240.00	270.00	38	NBR/FABRIC	SBT-830
E182708302	270.00	300.00	30	NBR/FABRIC	SUM-232
E182751001	275.00	315.00	36	NBR/FABRIC	SCT-1115
E182808304	280.00	310.00	30	NBR	SCT-951
E182808302	280.00	310.00	38	NYLON	PPA-1494
E182808301	280.00	310.00	38	NBR/FABRIC	SCT-313
E182808303	280.00	320.00	25	NBR	SCT-1117
E182908301	290.00	320.00	20	NBR/FABRIC	SCT-815
E183008401	300.00	330.00	38.00	NBR/FABRIC	SCT-250
E183118301	311.15	342.90	34.79	NBR/FABRIC	SCT-956
E183208302	320.00	350.00	18.5	NBR/FABRIC	SCT-661
E183208501	320.00	350.00	38	FKM/FABRIC	SCT-569
E183208505	320.00	350.00	40.00	FKM/FABRIC	SCT-333
E183238301	323.85	355.60	38.10	NBR/FABRIC	SCT-957
E183368401	336.00	368.50	36.00	NBR/FABRIC	SCT-380
E183408501	340.00	370.00	38	FKM/FABRIC	SCT-106
E183421101	342.90	374.65	38.10	NBR+NY	SCT-1118
E183428301	342.90	374.65	38.10	NBR/FABRIC	SCT-804
E183601001	360.00	400.00	26	NBR/FABRIC	SCT-719
E183650601	365.00	410.00	38	NBR/FABRIC	SCT-107
E183708302	370.00	400.00	19.00	NBR/FABRIC	SCT-1197
E183708301	370.00	415.00	35.00	NBR/FABRIC	SCT-981
E184008301	400.00	452.00	27	NBR/FABRIC	SCT-864
E184151001	415.00	455.00	25.00	NBR/FABRIC	SCT-983
E184258301	425.46	457.20	37.00	NBR/FABRIC	SCT-323
E184808301	480.00	510.00	19.00	NBR/FABRIC	SCT-1198
E184808401	480.00	520.00	25	NBR/FABRIC	SCT-1211
E185848401	584.20	615.95	45.50	NBR/FABRIC	SCT-379
E186000901	600.00	640.00	36.50	NBR	SCT-617
E186008401	600.00	650.00	34.00	NBR/FABRIC	SCT-221
E186300902	630.00	673.00	47	NBR/FABRIC	SCT-1061
E187008401	700.00	750.00	31.00	NBR/FABRIC	SCT-223

For customised items please Click here
