E17: Hydraulic Symmetrical Sealing Solutions

Max Spare : E17

Profile : Symmetrical Seals

Details :

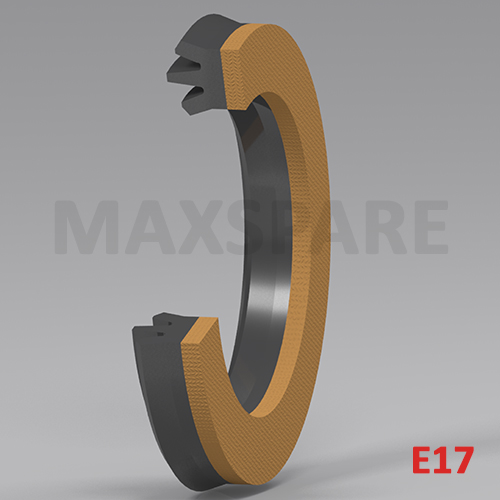

E17 seal is a single acting robust design seal used for medium to heavy duty applications. This seal comprises of a rubberised fabric U seal base bonded to a rubber energiser. The seal section is pre-loaded by the housing when installed to ensure effective sealing at low pressure. When the pressure increases the rubber energises the U seal to increase the sealing area and hence the efficiency of the seal. The strength and durability of the rubberized fabric combines with its ability to retain lubricant keeping friction and wear to a minimum.

MATERIAL

Nitrile Rubber with fabric reinforcement 80/85 Shore A

FKM with fabric reinforcement 80/85 Shore A

OPERATING CONDITIONS

Temperature Range	:	-20° C to + 100° C (NBR)
: -20° C to + 220° C (FKM)
Pressure	:	250 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Medium to heavy duty hydraulic presses.
Standard cylinders, telescopic cylinders.
Machine tools.
Can also be used as a piston seal.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
E170221001	22.00	28.00	3.81	NBR	UPS-465
E17022CF01	22.00	32.00	9.00	PU	PUB-339
E170278301	27.00	40.00	8	NBR/FABRIC	UPS-427
E170358303	35.00	50.00	9.00	NBR/FABRIC	UPS-447
E170358304	35.00	54.00	11.70	NBR/FABRIC	UPS-119
E170368602	36.00	46.00	8.50	FKM/FABRIC	UPS-470
E170368601	36.00	50.00	10.50	FKM/FABRIC	UPS-471
E170378302	37.00	50.00	8	NBR/FABRIC	UPS-424
E170388305	38.00	53.00	12.00	NBR/FABRIC	UPS-108
E170388303	38.10	50.80	9.50	NBR/FABRIC	UPS-407
E170388306	38.10	53.98	7.14	NBR/FABRIC	UPS-116
E17040L501	40.00	58.00	12	PU	PPA-2453
E170418301	41.27	57.15	8.00	NBR/FABRIC	UPS-111
E170448302	44.45	60.32	6.35	NBR/FABRIC	UPS-428
E170448303	44.45	60.32	8.00	NBR/FABRIC	UPS-110
E170448301	44.50	63.50	11.50	NBR/FABRIC	UPS-411
E170458305	45.00	55.00	7.00	NBR/FABRIC	UPS-127
E170458304	45.00	55.00	8	NBR/FABRIC	UPS-451
E17045L501	45.00	57.00	7	PU	PPA-1454
E17045L401	45.00	63.00	11	PU	PPA-1043
E170455901	45.00	63.50	11	PU	PPA-2811
E170458701	45.00	63.50	11	PU	PPA-2921
E17046L501	46.00	65.00	11	PU	PPA-2939
E170478304	47.00	64.00	8	NBR/FABRIC	SRV-1717
E170478305	47.62	63.50	7.93	NBR/FABRIC	UPS-429
E170478306	47.63	63.50	7.14	NBR/FABRIC	UPS-117
E170508308	50.00	60.00	5	NBR/FABRIC	UPS-420
E170508308	50.00	62.00	9.00	NBR/FABRIC	UPS-463
E170508309	50.00	63.00	10	NBR/FABRIC	UPS-423
E170501101	50.00	63.00	7	NBR/FABRIC	UPS-234
E170508311	50.00	63.00	8	NBR/FABRIC	UPS-426
E170508307	50.00	63.00	8.30	NBR/FABRIC	UPS-410
E170506601	50.00	63.00	8.50	FKM	UPS-453
E170508301	50.00	63.00	9	NBR/FABRIC	UPS-254
E170508310	50.00	67.00	9.80	NBR/FABRIC	UPS-425
E17050L501	50.00	70.00	13.80	PU	PPA-1915
E17050M101	50.00	70.00	14.00	HNBR/FABRIC	UPS-112
E170508302	50.00	70.00	9	NBR/FABRIC	UPS-192
E170508305	50.80	63.50	8.50	NBR/FABRIC	UPS-448
E170508306	50.80	66.70	9.52	NBR/FABRIC	SRV-1578
E170518301	51.00	63.00	8	NBR/FABRIC	UPS-298
E170548301	54.00	63.00	5.00	NBR/FABRIC	UPS-102
E17056L502	56.00	76.00	11.50	PU	PPA-2450
E17056L503	56.00	77.00	13.50	PU	PPA-2720
E170578501	57.15	76.20	11.3	FKM/FABRIC	UPS-336
E170601104	60.00	75.00	10	NBR	UPS-414
E170601105	60.00	76.00	10	NBR	SRV-1725
E170601001	60.00	80.00	12	NBR/FABRIC	UPS-250
E170606601	60.00	80.00	12	FKM/FABRIC	UPS-356
E170608309	60.00	80.00	12.50	NBR/FABRIC	UPS-449
E170608308	60.50	80.00	12	NBR/FABRIC	UPS-400
E170618301	61.00	80.00	12	NBR/FABRIC	UPS-299
E170618501	61.00	80.00	12	FKM/FABRIC	UPS-409
E170618302	61.91	76.20	12.70	NBR/FABRIC	UPS-405
E170636601	63.00	73.00	6.30	FKM	UPS-464
E170638302	63.00	80.00	12	NBR/FABRIC	UPS-404
E170638701	63.00	84.00	12.50/13.50	PU	PPA-2417
E170648701	64.00	85.00	13	PU	PPA-1673
E170658302	65.00	75.00	5	NBR/FABRIC	UPS-419
E17069L501	69.00	85.00	9.52	PU	PUD-745
E170698305	69.50	87.50	9.80	NBR/FABRIC	SRV-1726
E170698304	69.80	89.50	13.50	NBR/FABRIC	SRV-1596
E170698301	69.85	88.90	9.52	NBR/FABRIC	UPS-341
E170696701	69.85	117.47	30	FKM	UPS-385
E170708303	70.00	90.00	12	NBR/FABRIC	UPS-437
E17070L501	70.00	90.00	13	PU	PPA-1914
E170788301	78.00	90.00	8	NBR/FABRIC	UPS-421
E170808304	80.00	100.00	12	NBR/FABRIC	UPS-249
E170808307	80.00	100.00	12.50	NBR/FABRIC	UPS-431
E170808601	80.00	100.00	14.50	FKM/FABRIC	UPS-472
E170818503	81.00	100.00	11	FKM/FABRIC	UPS-456
E170818302	81.00	100.00	12	NBR/FABRIC	UPS-322
E170818303	81.00	100.00	12.50	NBR/FABRIC	UPS-378
E170811101	81.58	103.38	9.52	NBR	UPS-459
E170819001	81.75	107.15	15.08	NBR/FABRIC	UPS-103
E170828502	82.00	101.60	13	FKM/FABRIC	UPS-401
E170828304	82.50	100.00	12.00	NBR/FABRIC	UPS-460
E170828501	82.55	101.60	11.30	NBR	UPS-302
E170828303	82.55	101.60	12	NBR/FABRIC	UPS-418
E170858301	85.00	105.00	12	NBR/FABRIC	UPS-432
E170908301	90.00	105.00	13.00	NBR/FABRIC	UPS-115
E170908302	90.00	110.00	15.00	NBR/FABRIC	SRV-274
E170954101	95.00	120.00	15	SILICON	UPS-445
E171008502	100.00	125.00	15	FKM/FABRIC	UPS-358
E171008302	100.00	125.00	15.5	NBR/FABRIC	UPS-361
E171008309	100.00	125.00	15.50	NBR/FABRIC	SRV-1767
E171008309	100.00	125.00	15.50	NBR/FABRIC	UPS-406
E171008501	100.00	125.00	16	FKM/FABRIC	UPS-208
E171008402	100.00	125.00	16.00	NBR/FABRIC	UPS-109
E171008308	100.00	125.00	16.50	NBR/FABRIC	UPS-467
E171008401	100.00	125.00	18.00	NBR/FABRIC	UPS-387
E171018302	101.60	127.00	16	NBR/FABRIC	UPS-417
E171016701	101.60	152.40	30	FKM	UPS-386
E171076701	107.96	127.00	9.40	FKM	UPS-104
E171086401	108.00	125.00	9.40	FKM	UPS-462
E17110L501	110.00	130.00	14.50	NBR	PPA-2690
E171108401	110.00	130.00	14.50	FKM/FABRIC	UPS-457
E17111Q201	111.12	165.10	12.70	PU	PUG-240
E171159001	115.00	140.00	15.50	NBR/FABRIC	UPS-466
E171208601	120.00	140.00	15.00	FKM/FABRIC	UPS-113
E171255901	125.00	145.00	16	PU	PPA-3296
E171258501	125.00	150.00	14	FKM/FABRIC	UPS-430
E171278304	127.00	152.40	12.70	NBR/FABRIC	SBT-567
E171278501	127.00	152.40	15.87	FKM/FABRIC	UPS-248
E171278303	127.00	152.40	17	NBR/FABRIC	UPS-398
E171288301	128.00	152.00	17	NBR/FABRIC	UPS-433
E171288501	128.00	155.00	17	FKM/FABRIC	SRV-1813
E171348501	134.50	160.00	15.50	FKM/FABRIC	UPS-452
E171355901	135.00	155.00	16	PU	PPA-3293
E171358302	135.00	160.00	15	NBR/FABRIC	UPS-352
E171358303	135.00	160.00	16	NBR/FABRIC	SRV-1669
E171358501	135.00	160.00	16	FKM/FABRIC	UPS-328
E171368301	136.00	161.50	15	NBR/FABRIC	SRV-1649
E171448301	144.00	164.00	9	NBR/FABRIC	SRV-1914
E17145L501	145.00	165.00	16	PU	PPA-3224
E171508301	150.00	180.00	17.5	NBR/FABRIC	UPS-365
E171528301	152.40	177.80	18	NBR/FABRIC	UPS-266
E171605901	160.00	180.00	16	PU	PPA-3292
E171708301	170.00	200.00	15	NBR/FABRIC	SRV-1597
E171731001	173.00	200.00	18.00	NBR/FABRIC	UPS-121
E171748301	174.50	200.00	17	NBR/FABRIC	UPS-413
E171741001	174.50	200.00	18.50	NBR	UPS-455
E171758304	175.00	200.00	15	NBR/FABRIC	UPS-399
E171758303	175.00	200.00	16	NBR/FABRIC	UPS-397
E171758503	175.00	200.00	17.5	NBR/FABRIC	UPS-340
E171758305	175.00	200.00	18.00	NBR/FABRIC	UPS-454
E171758502	175.00	200.00	19	FKM/FABRIC	UPS-389
E171758504	175.00	203.00	19	FKM/FABRIC	UPS-422
E171778301	177.80	203.20	15.87	NBR/FABRIC	UPS-310
E171771101	177.80	203.20	17.50	NBR/FABRIC	UPS-408
E171900601	190.50	214.50	13	NBR/FABRIC	UPS-442
E172004101	200.00	230.00	15	SILICON	UPS-446
E172108301	210.00	235.00	20	NBR/FABRIC	SRV-1984
E172178301	217.00	250.30	20.00	NBR/FABRIC	UPS-469
E172181101	218.00	250.00	20	NBR/FABRIC	UPS-415
E17220L501	220.00	240.00	14.80	PU	PUK-164
E172208501	220.00	250.00	19	FKM/FABRIC	UPS-443
E172208301	220.00	250.00	20	NBR/FABRIC	UPS-346
E172228301	222.00	254.00	20	NBR/FABRIC	UPS-450
E172280901	228.60	254.00	11	NBR	UPS-434
E172668301	266.70	304.80	23	NBR/FABRIC	UPS-412
E172790901	279.40	304.80	12.50	NBR	UPS-435
E172796601	279.60	320.00	20.00	FKM/FABRIC	UPS-101
E173508701	350.00	390.00	34.95	PU	PPA-463
E173971001	397.00	450.00	31	NBR	SRV-1698
E174008301	400.00	430.00	33	NBR/FABRIC	SRV-1983
E174250601	425.50	457.50	16	NBR/FABRIC	UPS-440
E174281001	428.00	460.00	18	NBR/FABRIC	UPS-436
E174471001	447.00	500.00	31	NBR	SRV-1699
E174505901	450.00	474.00	7.80	PU	PPA-3442
E174500601	450.50	482.50	16.50	NBR/FABRIC	UPS-441
E177811001	781.06	812.80	1.50	NBR	UPS-439
E17781A601	781.50	813.00	16.50	NBR	UPS-114
E178808301	880.00	910.00	16.5	NBR/FABRIC	UPS-371
E178828401	882.50	916.50	16	NBR/FABRIC	UPS-468
E179506001	950.00	990.00	17.4/19.9	CPU	CPU-156
