E08: Hydraulic Symmetrical Sealing Solutions

Max Spare : E08

Profile : Symmetrical Seals

Details :

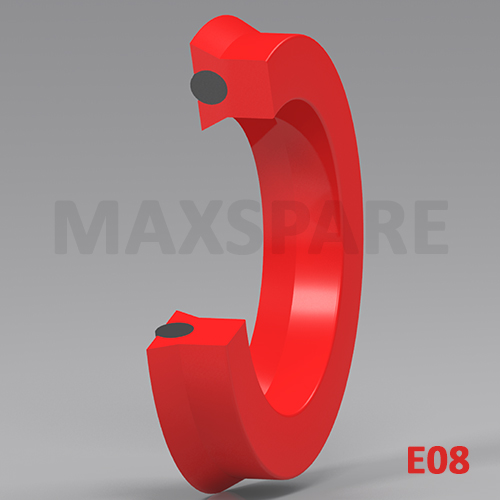

E08 seals are square cross-sectional loaded symmetrical U cup for use in either rod or piston applications. It is a conventional lip seal to produce a unique sealing in a vacuum, low and high-pressure applications. At zero or low pressure, the O-ring helps to increase the sealing force preventing any bypass. Under most conditions as the pressure rises, the sealing force increases and the O-ring ensures complete lip actuation. The symmetry of this seal is suited for single-acting rod and piston applications, whereas it can also be fitted back to back in separate glands for the use in double-acting applications. To protect against pressure trapping, it is recommended that the O-ring should be removed from the seal facing the lower pressure side of the application.

MATERIAL

U seal	:	Polyurethane 92 Shore A
O-Ring	:	Nitrile Rubber 70/75 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	350 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Medium duty hydraulic cylinders, holding platforms.
Suitable for double acting cylinders.
Can also be used as a Rod Seal in conjunction with S15 style Rod Seal for heavy applications.
Can also be used in equivalent to S19 Rod Seal.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.

THK

Material

Qty

Actions

Mould No.

E08003L501

3.96

10.31

3.17

PUA-320

E08006L504

6.35

12.70

3.17

PUA-228

E08006L505

6.35

12.70

3.17

PUA-317

E08006K301

6.35

12.70

3.17

HYT

PUA-662

E08006L503

6.35

12.70

3.17

PUA-663

E080063501

6.35

12.70

3.17

EPDM

SUA-1580

E080066702

6.35

12.70

3.17

FKM

SUA-1938

E080066703

6.35

12.70

3.17

FKM

SUA-2783

E08006D701

6.63

12.47

3.17

HNBR

SUA-2658

E080076701

7.92

14.27

3.17

FKM

SUA-1857

E080081101

8.00

20.50

6.60

NBR

SUA-2096

E08009O501

9.52

15.87

3.17

HYT-HYTREL

PUA-237

E08009K301

9.52

15.87

3.17

HYT

PUA-688

E08009L50

9.52

15.87

3.17

PUA-755

E080096701

9.52

15.87

3.17

FKM

SUA-1798

E080093501

9.52

15.87

3.17

EPDM

SUA-2430

E08009L501

9.53

19.05

4.78

PUA-319

E08011K301

11.00

17.34

3.30

NBR+HYT

PUA-604

E080113501

11.09

17.44

3.17

EPDM

SUA-2429

E08012K303

12.70

19.05

3.17

HYT

PUA-1004

E08012S401

12.70

19.05

3.17

HNBR

SUA-1825

E080123501

12.70

19.05

3.17

EPDM

SUA-2131

E080126702

12.70

19.05

3.17

FKM

SUA-2191

E08012K301

12.70

19.05

3.30

NBR+HYT

PUA-605

E08012L502

12.70

19.05

3.30

PUA-678

PUA-202

12.70

22.23

4.78

PUA-202

E08012K302

12.70

22.25

4.76

HYT-HYTREL

PUA-980

E08012L504

12.70

25.40

6.35

PUB-709

E080156701

15.87

22.22

3.17

FKM

SUA-103

E080156701

15.87

22.22

3.17

FKM

SUA-2436

E080156703

15.87

22.22

3.17

FKM

SUA-2556

E080156702

15.87

23.79

5.70

FKM

SUA-2552

E08015L503

15.87

25.40

4.77

NBR+PU

PUB-498

E080155901

15.87

28.57

6.35

PUB-2131

E08015L504

15.87

28.57

6.35

PUB-555

E08015L502

15.88

28.58

6.35

PUB-379

E08017L502

17.45

30.15

6.35

PUB-388

E08017L506

17.46

23.81

3.17

PUA-284

E08017L505

17.46

23.81

6.35

PUA-824

E08017L501

17.86

24.20

3.30

PUA-653

E080186601

18.25

25.40

3.50

FKM

SUB-3917

E08019L503

19.05

25.39

3.40

PUB-1711

E08019K301

19.05

25.40

3.17

HYT

PUB-1477

E080196701

19.05

25.40

3.17

FKM

SUB-3195

E080193501

19.05

25.40

3.17

EPDM

SUB-3543

E080196701.

19.05

25.40

3.17

FKM

SUB-3862

E08019C401

19.05

25.40

3.17

XNBR

SUB-4352

E08019L504

19.05

31.75

6.35

NBR+PU

PUB-671

E08019L505

19.05

31.75

6.35

PUB-702

E08020L501

20.00

26.00

3.25

PUB-956

E08020L503

20.00

26.00

5.00

PUB-537

E080226701

22.22

28.57

3.17

FKM

SUB-3631

E08022C401

22.22

31.75

4.76

XNBR

SUB-4375

E08022L504

22.23

34.93

6.35

PUB-655

E080235701

23.02

29.36

3.17

SUB-686

E080230801

23.41

29.75

3.30

PUB-1869

E08023S401

23.81

33.33

5.08

HNBR

SUB-2631

E08023L502

23.81

36.51

6.35

PUB-747

E08023L501

23.82

30.17

3.17

PUB-670

E08025K301

25.40

31.75

3.17

HYT

PUB-1475

E080258701

25.40

31.75

3.17

PUB-721

E08025S402

25.40

31.75

3.17

HNBR

SUB-1488

E080256801

25.40

31.75

3.17

FKM

SUB-2509

E080256703

25.40

31.75

3.17

FKM

SUB-2593

E080256707

25.40

31.75

3.17

FKM

SUB-4439

E08025S403

25.40

33.32

3.96

HNBR

SUB-3778

E080253501

25.40

33.32

3.96

EPDM

SUB-4240

E080256705

25.40

33.33

3.96

FKM

SUB-3381

E08025L502

25.40

33.35

3.96

PUB-738

E08025C401

25.40

38.10

9.52

XNBR

SUB-3060

E080257801

25.40

41.23

7.94/8.30

PUB-1412

E08025L501

25.40

44.45

9.52

PUB-607

E08025S401

25.40

44.45

9.52

HNBR

SUB-2609

E080246701

25.40

44.45

9.52

FKM

SUB-4616

E08028L503

28.57

34.92

3.17

PUB-401

E080286702

28.57

38.10

4.76

FKM

SUB-3487

E080281101

28.57

38.10

4.76

NBR

SUB-4570

E08028L505

28.57

41.27

6.35

PUB-586

E080283501

28.57

41.27

6.35

EPDM

SUB-3542

E08028L502

28.57

44.45

7.94

PUB-873

E080287901

28.57

44.45

7.94/8.30

HYT

PUB-1413

E08028L504

28.58

41.28

6.35

PUB-433

E08029K301

29.97

36.32

3.04

HYT

PUB-1476

E080296701

29.97

36.32

3.04

FKM

SUB-3194

E080308501

30.00

36.00

3.40

FKM/FABRIC

SRV-1581

E080306703

30.14

36.49

3.17

FKM

SUB-2956

E080306704

30.14

36.49

3.40

FKM

SUB-2985

E08030L503

30.15

36.50

4.75

PUB-380

E08030L502

30.15

42.85

6.35

PUB-381

E08030L501

30.16

36.52

3.17

PUB-1755

E08030L504

30.17

36.52

3.17

PUB-711

E080316401

31.75

38.10

3.17

FKM

SUB-1383

E080316702

31.75

41.27

4.76

FKM

SUB-2920

E080311101

31.75

41.27

4.76

NBR

SUB-2922

E08031K303

31.75

44.45

6.35

HYT-HYTREL

PUB-1908

E080313501

31.75

44.45

6.35

EPDM

SUB-3863

E08031S402

31.75

50.80

15.87

HNBR

SUC-2184

E08031L503

31.75

50.80

9.52

PUC-1340

E08031S401

31.75

50.80

9.52

HNBR

SUC-1789

E080316703

31.75

50.80

9.52

FKM

SUC-2350

E08031L506

31.75

50.80

9.53

PUC-592

E080316701

31.75

57.15

12.70

FKM

SUC-1791

E08032L502

32.14

38.48

3.30

PUB-1712

E08034L501

34.92

41.27

3.17

PUB-1903

E080346701

34.92

41.27

3.17

FKM

SUB-4217

E08034L506

34.92

42.86

3.96

PUB-629

E080346703

34.92

44.45

4.75

FKM

SUB-4899

E08034D701

34.92

44.45

4.76

HNBR

SUB-4889

E08034L505

34.92

47.62

6.35

PUB-556

E080346702

34.92

50.80

12.70

FKM

SUC-3084

E08034K301

34.92

50.80

7.92

HYT-HYTREL

PUC-1344

E08034L507

34.92

50.80

7.93

PUC-513

E08034S401

34.92

50.80

7.93

HNBR

SUC-1815

E08034L504

34.93

44.45

7.95

NBR+PU

PUB-200

E08034L502

34.93

50.80

7.95

PUC-300

E08034L503

34.93

53.98

9.53

PUC-325

E080366702

36.51

42.86

3.17

FKM

SUB-2711

E080376701

37.08

51.81

6.35

FKM

SUC-1808

E08038D701

38.10

44.45

3.17

HNBR

SUB-2982

E08038S405

38.10

44.45

3.17

HNBR

SUB-3777

E080386702

38.10

47.62

4.76

FKM

SUB-2921

E080381101

38.10

47.62

4.76

NBR

SUB-2923

E080386703

38.10

47.62

4.76

FKM

SUB-3263

E08041K303

38.10

47.62

9.52

HYT

PUB-251

E08038S406

38.10

47.62

9.52

HNBR

SUB-4402

E08038C401

38.10

50.80

6.35

XNBR

SUC-2859

E08038L508

38.10

53.97

7.93

PUC-485

E08038L507

38.10

53.98

7.95

NBR+PU

PUC-454

E080386705

38.10

57.15

10.20

FKM

SUC-1197

E08038L504

38.10

57.15

9.50

PUC-1613

E08038L503

38.10

57.15

9.52

PUC-1543

E08038K301

38.10

57.15

9.52

HYT-HYTREL

PUC-1610

E080386704

38.10

57.15

9.52

FKM

SUC-1167

E08038S402

38.10

57.15

9.52

HNBR

SUC-1790

E080386701

38.10

57.15

9.52

FKM

SUC-1798

E080386701

38.10

57.15

9.52

FKM

SUC-1887

E08038S404

38.10

60.32

11.09

HNBR

SUC-2218

E08038L505

38.10

63.50

12.70

PUC-318

E08038L506

38.10

63.50

12.70

PUC-377

E08038L510

38.10

63.50

12.70

PUC-601

E08038L502

38.10

69.85

15.87

PUC-1369

E08038S403

38.10

69.85

15.87

HNBR

SUC-2219

E08039D701

39.68

46.03

3.17

HNBR

SUB-3222

E080400801

40.00

55.00

11.5

NBR

SUC-1712

E08041S401

41.27

47.62

3.17

HNBR

SUB-3681

E080413501

41.27

50.80

4.74

EPDM

SUC-2846

E080416801

41.27

50.80

4.76

FKM

SUC-1113

E080416702

41.27

50.80

9.53

FKM

SUC-2417

E08041S402

41.27

50.87

6.37

HNBR/FABRIC

SUC-971

E080416701

41.27

53.97

6.35

FKM

SUC-1738

E080416701

41.27

53.97

6.35

FKM

SUC-1799

E08041K302

41.27

57.15

7.92

HYT

PUC-236

E08041L504

41.27

57.15

7.93

PUC-506

E08041L501

41.27

60.32

9.52

PUC-1270

E08041L502

41.27

60.32

9.52

PUC-463

E08041L503

41.28

60.33

9.53

NBR+PU

PUC-473

E080443501

44.45

50.80

3.17

EPDM

SUC-2836

E080441101

44.45

50.80

3.17

NBR

SUC-682

E080446703

44.45

50.80

4.76

FKM

SUC-2728

E080446702

44.45

53.97

4.74

FKM

SUC-2723

E080446704

44.45

53.97

4.76

FKM

SUC-2828

E080446802

44.45

53.97

4.76

FKM

SUC-2887

E080446801

44.45

53.97

6.35

FKM

SUC-2886

E08044L504

44.45

53.98

9.53

PUC-427

E08044L502

44.45

55.50

4.78

PUC-212

E080446701

44.45

57.15

4.74

FKM

SUC-2691

E08044L503

44.45

60.33

7.95

PUC-324

E080446706

44.45

63.50

10.50

FKM

SUC-1198

E08044L501

44.45

63.50

9.52

PUC-1339

E08044K301

44.45

63.50

9.52

HYT-HYTREL

PUC-1547

E08044L505

44.45

63.50

9.52

PUC-583

E080446803

44.45

63.50

9.52

FKM

SUC-3072

E080471101

47.00

57.00

NBR

SUC-1833

E08047L507

47.62

53.97

3.17

NBR+PU

PUC-507

E08047L502

47.62

57.14

4.74

NBR+PU

PUC-347

E080476803

47.62

57.15

4.76

FKM

SUC-2889

E080476802

47.62

57.15

6.35

FKM

SUC-2888

E08047L505

47.62

60.32

6.35

NBR+PU

PUC-479

E08047S402

47.62

63.50

7.93

HNBR

SUC-587

E08047L504

47.62

63.50

7.95

PUC-466

E08047L501

47.62

63.52

7.95

NBR+PU

PUC-346

E08047L503

47.63

57.15

4.78

PUC-348

E080505901

50.00

60.00

PUC-1360

E080501103

50.00

60.00

7.30

NBR

SUC-1111

E08050L509

50.80

57.15

3.17

PUC-550

E080506702

50.80

60.32

4.76

FKM

SUC-2008

E080501101

50.80

60.32

4.76

NBR

SUC-2010

E080506703

50.80

60.32

4.76

FKM

SUC-2829

E08050S403

50.80

63.19

7.06

HNBR/FABRIC

SUC-969

E08050L507

50.80

63.50

6.35

PUC-352

E080506601

50.80

63.50

6.35

FKM

SUC-2366

E08050C401

50.80

63.50

6.35

XNBR

SUC-2860

E080506704

50.80

63.50

6.35

FKM

SUC-2928

E08050S402

50.80

63.50

7.59

HNBR/FABRIC

SUC-967

E080500802

50.80

66.66

8.20

HYT-HYTREL

PUC-349

E080500801

50.80

66.67

7.92

NBR

SUC-1898

E08050L510

50.80

66.67

7.93

PUC-581

E08050L511

50.80

66.68

7.95

PUC-594

E08050L505

50.80

69.84

9.50

PUC-1614

E08050L503

50.80

69.85

9.52

PUC-1372

E08050K301

50.80

69.85

9.52

HYT-HYTREL

PUC-201

E08050L508

50.80

69.85

9.52

PUC-548

E080506701

50.80

69.85

9.52

FKM

SUC-1787

E08050L506

50.80

69.85

9.53

PUC-317

E080501102

50.80

69.85

9.70

NBR

SUC-475

E080536701

53.97

63.50

4.74

FKM

SUC-2364

E080536601

53.97

63.50

4.76

FKM

SUC-1391

E080536701

53.97

63.50

4.76

FKM

SUC-2195

E080533501

53.97

63.50

4.76

EPDM

SUC-3075

E08053S401

53.97

66.67

6.35

HNBR

SUC-1813

E08053C301

53.97

69.85

7.93

XNBR

SUC-2346

E080531001

53.97

69.85

7.93

NBR

SUC-3067

E08053L501

53.98

66.68

6.35

NBR+PU

PUC-140

E08053L503

53.98

69.85

7.95

NBR+PU

PUC-590

E08053L502

53.98

79.38

12.70

NBR+PU

PUD-133

E08055S401

55.24

64.77

9.52

HNBR

SUC-2181

E080550801

55.56

72.22

7.90

HYT-HYTREL

PUC-350

E08057L503

57.15

63.50

3.18

PUC-566

E080576801

57.15

66.67

4.76

FKM

SUC-458

E08057K301

57.15

69.85

6.35

HYT-HYTREL

PUC-1349

E08057C402

57.15

69.85

6.35

XNBR

SUC-1834

E080576701

57.15

69.85

6.35

FKM

SUC-3042

E08057C401

57.15

73.02

7.92

XNBR

SUC-1818

E08057L501

57.15

76.20

15.87

NBR+PU

PUD-191

E08057L502

57.15

76.20

9.53

PUD-227

E080606701

60.00

69.00

4.80

FKM

SUC-3003

E08060S401

60.00

76.00

HNBR

SUD-1691

E08060L501

60.32

69.85

4.74

PUC-353

E080606802

60.32

69.85

4.76

FKM

SUC-2891

E080606803

60.32

69.85

6.35

FKM

SUC-2890

E08060L504

60.32

73.02

6.35

PUC-469

E080603501

60.32

73.02

6.35

EPDM

SUC-3031

E080607901

60.32

76.20

9.52

HYT

PUD-199

E08060S402

60.32

79.37

9.52

HNBR

SUD-2356

E08060L503

60.33

69.85

4.78

NBR+PU

PUC-183

E08060L502

60.33

73.03

6.35

NBR+PU

PUC-152

E08060L505

60.33

76.20

7.95

PUD-425

E080636703

63.50

73.02

4.76

FKM

SUC-2009

E080631101

63.50

73.02

4.76

NBR

SUC-2011

E080636702

63.50

76.20

6.35

FKM

SUD-624

E08063L501

63.50

76.20

9.52

PUD-918

E080630801

63.50

79.36

8.30

HYT-HYTREL

PUD-282

E08063L505

63.50

79.37

7.93

NBR+PU

PUD-316

E08063L504

63.50

79.38

7.95

PUD-263

E08063L503

63.50

82.55

15.87

NBR+PU

PUD-202

E08063L502

63.50

88.90

12.70

NBR+PU

PUD-267

E08063L506

63.50

88.90

12.70

PUD-397

E080666704

66.67

76.17

4.74

FKM

SUD-829

E08066S403

66.67

76.17

4.74

HNBR

SUD-830

E080666703

66.67

76.20

4.74

FKM

SUD-804

E08066C401

66.67

76.20

4.76

XNBR/FABRIC

SUD-1154

E080666701

66.67

76.20

4.76

FKM

SUD-2149

E080666802

66.67

76.20

6.35

FKM

SUD-2186

E080666801

66.67

79.37

6.35

FKM

SUD-2190

E08066L504

66.68

76.20

9.53

PUD-262

E08069L502

69.85

76.20

3.17

PUD-1210

E08069S401

69.85

79.34

9.52

HNBR

SUD-2379

E080696801

69.85

79.37

4.76

FKM

SUD-2188

E08069L507

69.85

82.55

6.35

NBR+PU

PUD-434

E080696701

69.85

82.55

6.35

FKM

SUD-2130

E080693401

69.85

82.55

6.35

EPDM

SUD-2511

E080697901

69.85

82.55

9.52

HYT-HYTREL

PUD-1054

E08069L504

69.85

88.90

9.52

PUD-327

E08069L501

69.85

88.90

9.52

PUD-894

E08069K301

69.85

88.90

9.52

HYT

PUD-931

E08069L505

69.85

88.90

9.53

PUD-326

E08069L503

69.85

95.25

12.70

PUD-258

E08069L506

69.85

101.60

15.87

NBR+PU

PUE-365

E080701001

70.00

90.00

10.00

NBR

SUD-864

E080716701

71.42

82.55

5.53

FKM

SUD-895

E08071L501

71.43

82.55

5.55

PUD-662

E08073L501

73.02

82.52

4.74

PUD-187

E080736801

73.02

82.55

4.76

FKM

SUD-2484

E080736702

73.02

85.72

6.60

FKM

SUD-2248

E08073L401

73.02

88.90

7.93

PUD-856

E080736501

73.02

92.07

9.52

FKM

SUD-1538

E08073L503

73.03

79.38

3.18

PUD-261

E08073L502

73.03

82.55

6.35

PUD-264

E08073L504

73.03

88.90

7.95

PUD-260

E08076L508

76.20

82.55

3.17

NBR+PU

PUD-386

E08076S401

76.20

85.69

4.74

HNBR

SUD-2378

E08076L507

76.20

85.72

4.76

PUD-368

E080766701

76.20

85.72

4.76

FKM

SUD-851

E08076L504

76.20

85.73

4.78

NBR+PU

PUD-312

E080761101

76.20

88.90

6.35

NBR

SUD-1849

E080766801

76.20

88.90

6.35

FKM

SUD-2191

E08076C401

76.20

92.07

7.92

XNBR

SUD-1376

E08076L505

76.20

95.25

9.52

PUD-319

E080766801

76.20

95.25

9.52

FKM

SUD-1780

E08076L503

76.20

101.60

12.70

NBR+PU

PUE-216

E08076L506

76.20

101.60

12.70

PUE-306

E08076L501

76.20

101.60

6.35

PUE-791

E080796701

79.37

88.90

4.76

FKM

SUD-1531

E080791101

79.37

88.90

4.76

NBR

SUD-1532

E080796702

79.37

88.90

4.76

FKM

SUD-1556

E080796801

79.37

88.90

4.76

FKM

SUD-2189

E080796703

79.37

88.90

4.76

FKM

SUD-2302

E080796802

79.37

88.90

6.35

FKM

SUD-2187

E08079L502

79.37

95.25

7.93

PUD-317

E08079L501

79.38

95.25

7.95

PUD-242

E08082L505

82.55

88.90

3.17

PUD-323

E080826703

82.55

92.07

4.76

FKM

SUD-572

E08082L506

82.55

92.08

4.78

PUD-429

E08082L501

82.55

95.25

6.35

PUD-174

E08082L504

82.55

98.42

7.93

NBR+PU

PUD-321

E08082CF01

82.55

101.60

12.70

PUE-796

E08082L503

82.55

101.60

9.52

PUE-268

E080826702

82.55

101.60

9.52

FKM

SUE-1495

E08082L502

82.56

114.30

15.87

NBR+PU

PUE-230

E08085L502

85.72

95.20

4.74

PUD-170

E08085S401

85.72

101.60

7.92

HNBR

SUE-1658

E08085L501

85.72

101.60

7.93

PUE-804

E08085L503

85.73

104.78

9.53

PUE-223

E08088L511

88.90

95.25

3.18

PUD-437

E08088L504

88.90

98.39

4.74

PUD-1244

E080883503

88.90

98.42

4.76

EPDM

SUD-2339

E08088L509

88.90

98.43

4.78

PUD-428

E08088L507

88.90

101.60

6.35

PUE-327

E08088L501

88.90

101.60

6.35

PUE-504

E080886801

88.90

101.60

6.35

FKM

SUE-1127

E080883502

88.90

101.60

6.35

EPDM

SUE-1537

E080886803

88.90

101.60

6.35

FKM

SUE-1655

E080886702

88.90

101.60

6.60

FKM

SUE-1506

E080886802

88.90

101.60

9.52

FKM

SUE-1431

E08088L505

88.90

104.77

7.92

NBR+PU

PUE-220

E080881101

88.90

104.77

7.93

NBR

SUE-1103

E08088L506

88.90

107.95

9.52

PUE-304

E080885902

88.90

107.95

9.52

PUE-592

E080883501

88.90

110.00

10.00

EPDM

SUE-1455

E080886701

88.90

114.30

15.87

FKM

SUE-1494

E08088L510

88.90

114.30

19.05

PUE-373

E08090S401

90.00

102.40

6.20

HNBR

SUE-1326

E08090L501

90.00

106.00

PUE-118

E080906602

90.00

110.00

10.00

FKM

SUE-550

E08092L501

92.07

101.60

4.76

PUE-319

E080926802

92.07

101.60

4.76

FKM

SUE-111

E080926801

92.07

101.60

9.52

FKM

SUE-1674

E08092S402

92.07

104.77

6.35

HNBR

SUE-595

E08092S403

92.07

104.77

9.52

HNBR

SUE-594

E08092C401

92.07

111.12

9.52

XNBR

SUE-1351

E08092L502

92.08

107.95

7.95

PUE-375

E08095L504

95.25

101.60

3.17

PUE-252

E080956801

95.25

104.77

4.76

FKM

SUE-1467

E080956802

95.25

104.77

6.35

FKM

SUE-362

E08095L502

95.25

107.95

6.35

NBR+PU

PUE-153

E08095S403

95.25

107.95

9.52

HNBR

SUE-1597

E08095L501

95.25

107.95

9.53

PUE-197

E08095L505

95.25

114.30

9.52

PUE-358

E08098K301

98.42

107.95

4.76

HYT

PUE-516

E080986701

98.42

107.95

4.76

FKM

SUE-1533

E08098C401

98.42

111.12

6.35

XNBR

SUE-1350

E08098L504

98.43

107.95

4.78

NBR+PU

PUE-341

E08098L502

98.43

107.95

6.35

PUE-314

E08098L503

98.43

111.13

6.35

PUE-332

E08098L501

98.43

114.30

7.95

NBR+PU

PUE-132

E08101L502

101.60

107.95

3.18

PUE-202

E08101L505

101.60

111.13

4.78

PUE-333

E08101S401

101.60

114.30

5.53

HNBR

SUE-1629

E081018702

101.60

114.30

6.35

PUE-129

E081018701

101.60

114.30

6.50

PUE-594

E08101L501

101.60

117.44

7.92

PUE-144

E08101L507

101.60

117.47

7.93

PUE-362

E08101L506

101.60

117.48

7.95

PUE-331

E081016701

101.60

120.65

12.70

FKM

SUE-1514

E08101L503

101.60

120.65

9.52

NBR+PU

PUE-206

E08101L508

101.60

120.65

9.52

PUE-368

E08101L504

101.60

127.00

12.70

NBR+PU

PUF-239

E08101L509

101.60

127.00

12.70

PUF-262

E081046801

104.77

114.30

4.76

FKM

SUE-1468

E081043501

104.77

114.30

4.76

EPDM

SUE-1560

E081046701

104.77

114.30

4.76

FKM

SUE-1662

E08104S401

104.77

123.82

15.87

HNBR

SUE-596

E08104L502

104.78

120.65

7.95

PUE-380

E08104L501

104.78

123.83

9.53

NBR+PU

PUE-167

E081076801

107.95

117.47

6.35

FKM

SUE-1466

E08107L507

107.95

117.48

4.78

PUE-311

E08107L502

107.95

120.65

12.70

PUE-146

E08107L505

107.95

120.65

14.27

NBR+PU

PUE-212

E08107L510

107.95

120.65

14.30

PUE-372

E08107L506

107.95

120.65

6.35

PUE-224

E08107L509

107.95

120.65

6.35

NBR+PU

PUE-326

E08107S401

107.95

120.65

6.35

HNBR

SUE-1459

E08107L503

107.95

123.83

7.95

PUE-201

E081076702

107.95

127.00

9.52

FKM

SUF-972

E08107L504

107.95

133.35

12.70

NBR+PU

PUF-101

E08107L501

107.95

133.35

12.70

PUF-571

E08107L508

107.95

139.70

15.88

PUF-219

E08110D701

110.00

126.00

8.00

HNBR

SUF-907

E081116601

111.12

123.82

6.35

FKM

SUE-1244

E08114L502

114.30

123.83

4.78

NBR+PU

PUE-152

E081148701

114.30

127.00

6.35

PUF-114

E08114L501

114.30

127.00

6.35

PUF-261

E081146802

114.30

127.00

6.35

FKM

SUF-1040

E081146801

114.30

127.00

9.52

FKM

SUF-988

E081146702

114.30

130.17

7.93

FKM

SUF-1091

E08117L502

117.48

127.00

4.78

PUF-273

E08117L501

117.48

130.18

6.35

PUF-165

E08120L502

120.65

127.00

3.17

NBR+PU

PUF-210

E08120L503

120.65

133.35

6.35

PUF-276

E081206801

120.65

133.35

6.35

FKM

SUF-1039

E08120CG01

120.65

139.70

9.52

PUF-196

E08120L501

120.65

146.05

9.52

PUF-572

E08123C402

123.82

136.52

6.35

XNBR

SUF-1015

E08123C401

123.82

142.87

9.52

XNBR

SUF-957

E081278701

127.00

139.70

6.27

PUF-250

E08127L501

127.00

139.70

6.35

PUF-136

E08127L503

127.00

139.70

6.35

PUF-278

E081276701

127.00

139.70

6.35

FKM

SUF-205

E08127S403

127.00

142.87

15.87

HNBR

SUF-252

E08127L502

127.00

142.87

7.92

PUF-243

E08127S405

127.00

146.05

15.87

HNBR

SUF-258

E08127S402

127.00

146.05

9.52

HNBR

SUF-1062

E08127S404

127.00

146.05

9.52

HNBR

SUF-257

E08127L504

127.00

152.40

12.70

PUG-235

E081276801

127.00

177.80

25.4

FKM

SUH-564

E08129D701

129.66

143.63

14.28

HNBR

SUF-859

E081336701

133.35

146.05

6.35

FKM

SUF-216

E08133L501

133.35

149.23

7.95

PUF-159

E08133L502

133.35

152.40

12.70

NBR+PU

PUG-144

E08133L504

133.35

152.40

9.52

PUG-203

E081336702

133.35

152.40

9.52

FKM

SUG-963

E08133L503

133.35

152.40

9.53

PUG-194

E08136L501

136.52

149.22

6.35

PUF-150

E081366801

136.52

149.22

6.35

FKM

SUF-156

E08136S401

136.52

149.22

6.35

HNBR

SUF-230

E081366701

136.52

152.40

7.95

FKM

SUG-123

E08136L503

136.53

152.40

15.88

NBR+PU

PUG-220

E08136L502

136.53

152.40

7.95

PUG-134

E08139D701

139.70

152.40

6.20

HNBR

SUG-429

E08139K301

139.70

152.40

6.35

HYT

PUG-319

E08139L502

139.70

155.57

7.93

NBR+PU

PUG-233

E08139L501

139.70

155.58

7.95

PUG-131

E08142L501

142.87

161.92

9.52

NBR+PU

PUG-219

E08146L501

146.05

165.10

9.52

PUG-230

E08149L501

149.22

161.92

6.35

PUG-336

E081496701

149.22

161.92

6.35

FKM

SUG-975

E08152L502

152.40

165.10

14.30

PUG-136

E08152L504

152.40

165.10

6.35

PUG-130

E08152L507

152.40

165.10

6.35

PUG-202

E08152Q201

152.40

165.10

6.35

NBR

PUG-464

E081526801

152.40

165.10

6.35

FKM

SUG-904

E081526701

152.40

165.10

6.35

FKM

SUG-981

E08152L509

152.40

171.45

9.52

PUG-227

E08152L501

152.40

171.45

9.52

PUG-460

E08152L508

152.40

171.45

9.53

PUG-207

E08152L505

152.40

177.80

12.70

PUH-133

E08152L506

152.40

177.80

12.70

NBR+PU

PUH-170

E08152L503

152.40

177.80

19.05

PUH-135

E08158L502

158.75

177.80

9.52

NBR+PU

PUH-186

E08158L501

158.75

177.80

9.53

PUH-134

E081583501

158.75

184.15

12.70

EPDM

SUH-388

E08165L501

165.10

177.80

6.35

PUH-317

E08165D701

165.10

177.80

6.35

HNBR

SUH-626

E08165L502

165.10

177.80

9.52

PUH-316

E08165L503

165.10

184.15

9.52

NBR+PU

PUH-172

E08165L504

165.10

190.50

12.70

PUH-202

E08168L501

168.27

184.15

NBR+PU

PUH-297

E08171L501

171.45

190.50

9.53

NBR+PU

PUH-110

E08177K301

177.80

190.50

6.35

HYT-HYTREL

PUH-299

E08177D701

177.80

190.50

6.35

HNBR

SUH-392

E081776701

177.80

190.50

6.35

FKM

SUH-485

E08177D601

177.80

190.50

6.35

HNBR

SUH-514

E08177L502

177.80

193.67

7.93

NBR+PU

PUH-171

E08177L501

177.80

203.20

12.70

PUJ-136

E081776702

177.80

203.20

12.70

FKM

SUJ-476

E081846701

184.15

196.85

6.35

FKM

SUH-484

E08184L503

184.15

200.02

7.93

PUJ-137

E08184L501

184.15

200.03

7.95

PUJ-289

E08184S401

184.15

203.20

9.52

HNBR

SUJ-467

E08184L502

184.15

203.20

9.53

PUJ-121

E081876701

187.32

203.20

7.92

FKM

SUJ-481

E081873501

187.32

203.20

7.92

EPDM

SUJ-500

E08187L501

187.32

203.20

7.94

PUJ-147

E081908701

190.00

210.00

9.50

PUJ-209

E08190L501

190.50

203.20

6.35

PUJ-145

E081907901

190.50

203.20

6.35

HYT-HYTREL

PUJ-231

E081906701

190.50

203.20

6.35

FKM

SUJ-488

E08190CG01

190.50

209.55

9.52

PUJ-114

E08196L501

196.85

209.55

6.35

PUJ-265

E081961101

196.85

215.90

9.52

NBR

SUJ-484

E08203L501

203.20

215.90

6.35

PUJ-111

E08203D701

203.20

215.90

6.35

HNBR

SUJ-341

E082036701

203.20

215.90

6.35

FKM

SUJ-359

E08203CG01

203.20

222.25

9.52

PUJ-148

E08203L401

203.20

222.25

9.52

PUJ-218

E08203L502

203.20

222.25

9.53

PUJ-120

E08209L502

209.55

228.60

12.70

PUK-117

E08209L501

209.55

228.60

15.88

PUK-114

E082151101

215.90

228.60

6.35

NBR

SUK-347

E08215L501

215.90

231.78

7.95

NBR+PU

PUK-138

E08215K301

215.90

234.95

9.52

HYT

PPA-2124

E08222D601

222.25

234.95

6.35

HNBR

SUK-326

E08222L501

222.25

241.30

9.52

PUK-110

E082288701

228.60

241.30

6.35

NBR

PUK-218

E08228S401

228.60

241.30

6.35

HNBR

SUK-114

E08228C401

228.60

241.30

6.35

XNBR

SUK-281

E08228L502

228.60

254.00

12.70

PUM-154

E08228L503

228.60

254.00

12.70

NBR+PU

PUM-157

E082308401

230.00

280.00

NBR

SUM-832

E08234CF01

234.95

247.65

6.35

PUK-219

For customised items please Click here
