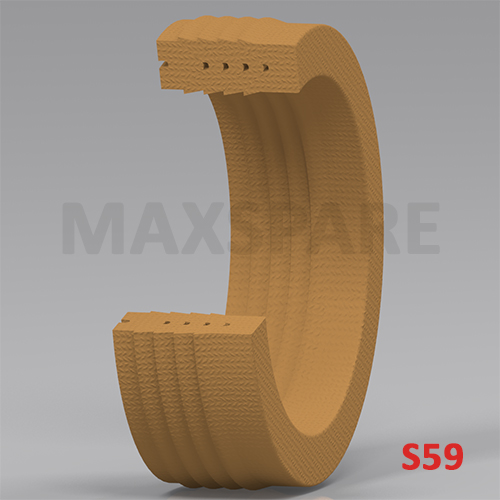

Max Spare : S59
Profile : Rod Seals
Details :
S59 is a single-acting robust seal. Though it is suitable for a split piston, it is extremely suitable for medium-duty to heavy duty application. The S59 seal accepts low & high pressure, vigorous conditions & also any misalignment between sealing gaps. The seal is a combination of a bottom seal, center ring & pressure ring. The center ring is the main seal being flexible enough to retain high & low pressures. The bottom seal supports the center ring from getting extruded against high pressures. The top ring helps in retaining the center ring profile & distributing pressure equally. In many cases, the S59 seals can also be split to enable ease of fitment. Besides, S60 (1+5+1) is available with 2 extra center rings to adjust groove height.
MATERIAL
Nitrile Rubber with Fabric reinforcement 75/80 Shore ‘A’
OPERATING CONDITIONS
Temperature Range
:
-20° C to + 100° C
Pressure
:
400 Bar
Speed
:
0.5 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids
APPLICATION
Medium to heavy duty single acting cylinder with split piston.
FEATURES
Long life.
Accepts misalignment and uneven surfaces.
Any size endless up to 1500 mm diameter available.
Manufactured by:
Max Spare Limited
Product ID:
/details?id=15&name=s59
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
S59004Z901
4.76
19.05
25.40
HNBR/FABRIC
SAT-815
S590047401
4.76
19.05
26.98
AFLAS
SAT-496
S59006E701
6.35
22.22
22.92
FKM/FABRIC
SAT-1477
S59006GZ01
6.35
22.22
22.92
ACM/FABRIC
SAT-620
S590068502
6.35
22.22
23.77
FKM
SAT-394
S590067801
6.35
22.22
24
PU
PPA-3072
S590067301
6.35
22.22
25.40
FKM
SAT-3755
S59006G301
6.35
22.22
25.40
AFLAS FABRIC - AFC
SAT-385
S59006Z901
6.35
22.22
25.40
HNBR/FABRIC
SAT-816
S590066701
6.35
22.22
28.57
FKM
SAT-905
S590068301
6.35
22.22
29.08
NBR/FABRIC
SAT-2684
S590088301
8.00
18.00
20
NBR/FABRIC
SAT-2421
S59009L501
9.52
22.22
16.12
PU
PPA-220
S590098501
9.52
22.22
19.05
FKM
SAT-395
S59009E701
9.52
22.22
22.92
FKM/FABRIC
SAT-2200
S59009GZ01
9.52
22.22
22.92
ACM/FABRIC
SAT-619
S590096502
9.52
22.22
22.92
FKM/FABRIC
SAT-652
S59009G301
9.52
22.22
25.40
AFLAS FABRIC - AFC
SAT-384
S590096501
9.52
22.22
25.40
FKM
SAT-4162
S59009M401
9.52
22.22
25.40
FSL - FLUORO SILICON RUBBER
SAT-4168
S59009Z901
9.52
22.22
25.40
HNBR/FABRIC
SAT-817
S590108303
10.00
18.00
10
NBR/FABRIC
SAT-3058
S590108408
10.00
20.00
23.00
NBR/FABRIC
SAT-4070
S590108302
10.00
22.00
18
NBR/FABRIC
SAT-2771
S590108401
10.00
23.00
24.00
NBR
SAT-736
S59012F301
12.00
22.00
20.00
KEVLAR-FABRIC
SAT-4295
S590128311
12.00
24.00
18
NBR/FABRIC
SAT-2656
S590128318
12.00
25.00
18.50
NBR/FABRIC
SAT-799
S590128316
12.00
25.00
19.50
NBR/FABRIC
SAT-409
S590128309
12.70
22.23
15.08
NBR/FABRIC
SAT-2109
S590128317
12.70
23.01
13.48
NBR/FABRIC
SAT-681
S59012N101
12.70
23.01
19.05
NBR
PPA-1800
S59012N101
12.70
23.01
19.05
FKM/FABRIC
SAT-2769
S590128314
12.70
25.40
17.46
NBR+NY
SAT-3827
S590128312
12.70
25.40
19.05
NBR/FABRIC
SAT-3206
S590126901
12.70
25.40
25.40
FKM
SAT-4515
S59012Z901
12.70
25.40
25.40
HNBR/FABRIC
SAT-4670
S590126801
12.70
25.40
25.40
FKM
SAT-720
S590138302
13.00
27.00
20.00
NBR/FABRIC
SAT-885
S590147801
14.28
22.22
24
PU
PPA-3071
S590158501
15.00
28.00
24.00
NBR/FABRIC
SAT-3478
S590150601
15.00
30.00
11.90
NBR/FABRIC
SAT-2575
S590158307
15.00
30.00
24.00
NBR/FABRIC
SAT-3739
S590158310
15.64
22.80
14.98
NBR/FABRIC
SAT-544
S590150801
15.80
28.60
24.90
NBR
SAT-3836
S590156903
15.87
25.40
15.50
FKM
SAT-4513
S590152102
15.87
25.40
20
NBR/FABRIC
SAT-1840
S590158306
15.87
28.57
18.16
NBR/FABRIC
SAT-1781
S590158312
15.87
28.57
19.05
NBR/FABRIC
SAT-345
S590158311
15.88
25.40
20.62
NBR/FABRIC
SAT-136
S590168308
16.00
24.00
16.50
NBR/FABRIC
SAT-2554
S590163201
16.00
25.00
16.00
EPDM/FABRIC
SAT-3823
S590168313
16.00
26.00
15.00
NBR/FABRIC
SAT-577
S590168311
16.00
28.00
14
NBR/FABRIC
SAT-467
S590166902
16.00
28.00
18
PTFE
PPA-1549
S590168306
16.00
28.00
20
NBR/FABRIC
SAT-2734
S590168301
16.00
29.00
14.32
NBR/FABRIC
SAT-227
S590168314
16.00
29.00
20.00
NBR/FABRIC
SAT-886
S590168310
16.00
35.00
30
NBR/FABRIC
SAT-3129
S590178302
17.00
29.00
30.00
NBR/FABRIC
SAT-4172
S590178303
17.78
30.48
19.05
NBR/FABRIC
SAT-4731
S590188303 (Stock Item)
18.00
28.00
19.86
NBR/FABRIC
SAT-2861
S59018L502
18.00
30.00
17.00
PU
PPA-331
S59018L501
18.00
30.00
17.15
PU
PPA-2366
S590198319
19.00
32.00
17
NBR/FABRIC
SAT-271
S590198321
19.00
32.00
25.00
NBR/FABRIC
SAT-4642
S590198318
19.00
32.50
17.00
NBR/FABRIC
SAT-3738
S590198320
19.05
31.25
19.05
NBR/FABRIC
SAT-729
S590198322
19.05
31.75
19.05
NBR/FABRIC
SAT-895
S590198314
19.05
31.75
25.4
NBR/FABRIC
SAT-1829
S590198323
19.05
34.92
23.77
NBR/FABRIC
SAT-533
S590198325
19.05
34.92
25.90
NBR/FABRIC
SAT-682
S590198324
19.05
41.27
28.57
NBR/FABRIC
SAT-562
S590208601
20.00
28.00
14.50
FKM/FABRIC
SAT-4144
S590208308
20.00
30.00
16
NBR/FABRIC
SAT-3250
S590208502
20.00
30.00
18.50
FKM/FABRIC
SAT-555
S590208301
20.00
30.00
21.5
NBR/FABRIC
SAT-945
S590208319
20.00
31.50
17.5
NBR/FABRIC
SAT-221
S590208306 (Stock Item)
20.00
32.00
16.86
NBR/FABRIC
SAT-2862
S590208332
20.00
32.00
18.00
NBR/FABRIC
SAT-891
S590208326
20.00
32.00
19.00
NBR/FABRIC
SAT-3954
S590201101
20.00
32.00
20
NBR/FABRIC
SAT-3352
S590208504
20.00
32.00
22.50
FKM/FABRIC
SAT-741
S590208330
20.00
32.00
25.00
NBR/FABRIC
SAT-673
S590208315
20.00
32.90
18
NBR/FABRIC
SAT-1678
S590208329
20.00
33.00
20.00
NBR/FABRIC
SAT-647
S590208501
20.00
33.00
23
FKM/FABRIC
SAT-3060
S590208320
20.00
36.00
24
NBR/FABRIC
SAT-223
S590208307
20.00
38.00
15
NBR/FABRIC
SAT-1298
S590208322
20.00
38.00
27
NBR/FABRIC
SAT-3278
S590200601
20.00
40.00
20.00
NBR/FABRIC
SAT-3899
S590228338
22.00
30.00
16.50
NBR/FABRIC
SAT-3421
S590228503
22.00
32.00
14.50
FKM/FABRIC
SAT-2643
S59022K101
22.00
32.00
19
NYLON
SAT-1325
S59022K101
22.00
32.00
19
NYLON
SAT-260
S590228334
22.00
32.00
26
NBR/FABRIC
SAT-2517
S590228406
22.00
34.50
32.50
NBR/FABRIC
SAT-894
S590228336
22.00
38.00
23
NBR/FABRIC
SAT-2863
S590228301 (Stock Item)
22.00
38.00
26
NBR/FABRIC
SAT-1541
S590220701
22.00
38.00
40.00
NBR/FABRIC
SAT-738
S590228322
22.00
40.00
23.00
NBR
SAT-392
S590228335
22.00
40.00
25
NBR/FABRIC
SAT-3089
S590228340
22.00
40.00
30.00
NBR/FABRIC
SAT-3642
S590228337
22.00
45.00
21.00
NBR/FABRIC
SAT-3326
S590228403
22.22
31.75
19.05
NBR/FABRIC
SAT-310
S590228333
22.22
31.75
20.64
NBR/FABRIC
SAT-2149
S59022M101
22.22
34.92
18.20
HNBR/FABRIC
SAT-2682
S59022L501
22.22
38.10
15.26
PU
PPA-2368
S590221101
22.35
35.05
20.30
NBR/FABRIC
SAT-3719
S590238301
23.00
38.00
21.00
NBR/FABRIC
SAT-4280
S590248401
24.00
36.50
32.50
NBR/FABRIC
SAT-898
S590248301
24.00
40.00
42.00
NBR/FABRIC
SAT-116
S590258602
25.00
33.00
14.50
FKM/FABRIC
SAT-4697
S590258503
25.00
35.00
16.5
FKM/FABRIC
SAT-2403
S590258345
25.00
35.00
17.3
NBR/FABRIC
SAT-1850
S590258319
25.00
35.00
23.00
NBR/FABRIC
SAT-1478
S590256007
25.00
35.00
30
NYLON
PPA-2360
S590258341
25.00
36.00
20
NBR/FABRIC
SAT-1730
S590258364
25.00
37.00
16.5
NBR/FABRIC
SAT-780
S590258315
25.00
38.00
17.50
NBR/FABRIC
SAT-1340
S590258367
25.00
38.00
20
NBR/FABRIC
SAT-1635
S590258353
25.00
38.00
35
NBR/FABRIC
SAT-2352
S590258357
25.00
39.00
28
NBR/FABRIC
SAT-2591
S590258302
25.00
40.00
19.84
NBR/FABRIC
SAT-239
S590258306 (Stock Item)
25.00
40.00
25.50
NBR/FABRIC
SAT-2864
S590258306
25.00
40.00
26
NBR/FABRIC
SAT-1526
S590258372
25.00
45.00
18.00
NBR/FABRIC
SAT-4380
S590258368
25.00
45.00
30.00
NBR/FABRIC
SAT-3828
S590251001
25.40
37.30
9.52
NBR/FABRIC
SAT-3361
S590258359
25.40
38.10
16
NBR/FABRIC
SAT-2954
S590258342
25.40
38.10
19.03
NBR/FABRIC
SAT-470
S590258348
25.40
38.10
19.6
NBR/FABRIC
SAT-1929
S590258376
25.40
38.10
19.60
NBR/FABRIC
SAT-711
S59025L501
25.40
38.10
25
PU
PPA-1675
S590250801
25.40
38.10
34
NBR
SAT-3837
S590256701
25.40
38.10
9.00
FKM
SAT-586
S590258370
25.40
38.20
24.50
NBR/FABRIC
SAT-3950
S590258360
25.40
38.50
15
NBR/FABRIC
SAT-2956
S590258404
25.40
39.50
32.50
NBR
SAT-4726
S590258378
25.40
41.27
23.77
NBR/FABRIC
SAT-528
S590251101
25.40
42.86
22.22
NBR
SAT-4473
S590258402
25.40
44.45
25.40
NBR/FABRIC
SAT-311
S590268304
26.48
41.48
25.50
NBR/FABRIC
SAT-3330
S590268306
26.89
39.68
19.05
NBR/FABRIC
SAT-2778
S590278302
27.00
39.00
20
NBR/FABRIC
SAT-3315
S590278303
27.00
40.00
25.00
NBR/FABRIC
SAT-4676
S590288337
28.00
38.00
16
NBR/FABRIC
SAT-451
S590288323
28.00
38.00
22
FKM/FABRIC
SAT-793
S590288503
28.00
40.00
15.09
FKM/FABRIC
SAT-2732
S590288301 (Stock Item)
28.00
40.00
16.98
NBR/FABRIC
SAT-2865
S590288340
28.00
40.00
18.50
NBR/FABRIC
SAT-2938
S590288335
28.00
40.00
24
NBR/FABRIC
SAT-2406
S590288331
28.00
40.00
38
NBR/FABRIC
SAT-2008
S590288302 (Stock Item)
28.00
43.00
22.50
NBR/FABRIC
SAT-2866
S590288347
28.00
44.00
25.00
NBR/FABRIC
SAT-4611
S590288505
28.00
44.00
28
FKM/FABRIC
SAT-3362
S590288341
28.00
45.00
24
NBR/FABRIC
SAT-3085
S590288327
28.00
48.00
29.00
NBR/FABRIC
SAT-1246
S590288325
28.00
53.80
38.70
NBR/FABRIC
SAT-2922
S590288339
28.00
55.00
30
NBR/FABRIC
SAT-2915
S590288338
28.57
34.92
15.87
NBR/FABRIC
SAT-2738
S590281001
28.57
34.92
19.05
NBR
SAT-2625
S590286501
28.57
41.27
14.98
FKM/FABRIC
SAT-4645
S590288345
28.57
47.62
31.75
NBR/FABRIC
SAT-3798
S590291001
29.97
38.48
14.60
NBR
SAT-3154
S590306401
30.00
37.00
13.40
FKM
SAT-777
S590301001
30.00
38.00
12.00
NBR
SAT-4635
S59030L503
30.00
40.00
18
PU
PPA-3369
S590308501
30.00
40.00
21
FKM/FABRIC
SAT-2759
S590308304 (Stock Item)
30.00
40.00
21.78
NBR/FABRIC
SAT-2867
S590308320
30.00
40.00
26
NBR/FABRIC
SAT-2457
S590308502 (Stock Item)
30.00
40.00
29.06
FKM/FABRIC
SAT-872
S590308325
30.00
42.00
18.00
NBR/FABRIC
SAT-3130
S590308332
30.00
43.00
21.00
NBR/FABRIC
SAT-549
S590308312
30.00
45.00
20
NBR/FABRIC
SAT-768
S590308302 (Stock Item)
30.00
45.00
22.20
NBR/FABRIC
SAT-2868
S590308319
30.00
45.00
25.00
NBR/FABRIC
SAT-317
S590308328
30.00
45.00
27
NBR/FABRIC
SAT-3280
S590308401
30.00
46.00
14.50
NBR/FABRIC
SAT-4474
S590308324
30.00
47.00
32
NBR/FABRIC
SAT-3105
S590308326
30.00
50.00
28.80
NBR
SAT-3139
S590308303 (Stock Item)
30.00
50.00
29.34
NBR/FABRIC
SAT-2869
S590308315
30.00
50.00
29.37
NBR/FABRIC
SAT-1856
S590308321
30.00
50.00
32
NBR/FABRIC
SAT-2770
S590308329
30.00
52.00
40
NBR/FABRIC
SAT-3343
S590308330
30.00
55.00
25.00
NBR/FABRIC
SAT-3730
S590308327
30.00
62.00
25
NBR/FABRIC
SAT-3146
S590308331
30.14
39.67
25.40
NBR
SAT-511
S590308333
30.14
39.67
25.40
NBR/FABRIC
SAT-959
S590318401
31.00
44.00
25.00
NBR/FABRIC
SAT-3942
S590318318
31.50
44.20
22
NBR/FABRIC
SAT-3249
S590318319
31.50
44.50
20.00
NBR/FABRIC
SAT-3549
S590316501
31.75
41.27
19.05
FKM/FABRIC
SAT-710
S590316505
31.75
44.45
14.99
FKM/FABRIC
SAT-779
S590316503
31.75
44.45
15.62
FKM/FABRIC
SAT-716
S590318317
31.75
44.45
16
NBR/FABRIC
SAT-3239
S590318402
31.75
44.45
16.25
NBR/FABRIC
SAT-2502
S590316502
31.75
44.45
16.28
FKM/FABRIC
SAT-715
S590318312
31.75
44.45
16.84
NBR/FABRIC
SAT-1704
S590317802
31.75
44.45
17.27
NBR
PPA-1529
S590318301 (Stock Item)
31.75
44.45
19.02
NBR/FABRIC
SAT-2870
S590317801
31.75
44.45
19.30
NBR
PPA-1521
S590318320
31.75
44.45
21.70
NBR/FABRIC
SAT-525
S59031L501
31.75
45.80
17.50
PU
PPA-361
S590318321
31.75
47.62
23.77
NBR/FABRIC
SAT-335
S590328501
32.00
40.00
24
FKM/FABRIC
SAT-3117
S590328312
32.00
42.00
20
NBR/FABRIC
SAT-2604
S590326003
32.00
42.00
30.00
NYLON
PPA-215
S590328313
32.00
44.00
16.50
NBR/FABRIC
SAT-2619
S59032L501
32.00
44.45
25
PU
PPA-1676
S590328315
32.00
45.00
25
NBR/FABRIC
SAT-3078
S590328314
32.00
46.00
24
NBR/FABRIC
SAT-2652
S590328319
32.92
50.00
25.00
NBR/FABRIC
SAT-4447
S590338305
33.00
50.00
30.00
NBR/FABRIC
SAT-573
S590338304
33.32
50.80
24.89
NBR/FABRIC
SAT-1455
S590348601
34.00
46.00
25.00
FKM/FABRIC
SAT-4185
S590348316
34.00
46.00
38
NBR/FABRIC
SAT-2018
S590348318
34.00
50.00
32
NBR/FABRIC
SAT-3037
S590348402
34.00
58.00
22.00
NBR/FABRIC
SAT-4258
S590348322
34.00
58.00
24
NBR/FABRIC
SAT-3173
S590341102
34.00
58.00
28.00
NBR/FABRIC
SAT-3414
S590348303
34.13
43.65
14.60
NBR/FABRIC
SAT-3191
S590348319
34.80
50.80
19
NBR/FABRIC
SAT-3099
S590348317
34.90
47.50
15
NBR/FABRIC
SAT-2946
S590348302 (Stock Item)
34.90
50.80
24.18
NBR/FABRIC
SAT-2871
S590348323
34.92
44.45
19.05
NBR/FABRIC
SAT-3347
S590341001
34.92
47.62
10
NBR
SAT-2472
S590348324
34.92
47.62
19.05
NBR/FABRIC
SAT-4026
S590348312
34.92
50.80
22.22
NBR/FABRIC
SAT-473
S590341101
34.92
50.80
24.13
NBR/FABRIC
SAT-2441
S590348401
34.92
50.80
24.13
NBR/FABRIC
SAT-4120
S590348502
34.92
50.80
25.40
FKM/FABRIC
SAT-2702
S59034L502
34.92
50.80
29
PU
PPA-1946
S590348326
34.92
50.80
29.00
NBR/FABRIC
SAT-4695
S590356901
35.00
45.00
14.2
PTFE
SAT-664
S590358316
35.00
45.00
18
NBR/FABRIC
SAT-2903
S590358318
35.00
45.00
22.5
NBR/FABRIC
SAT-308
S590358338
35.00
45.70
15.50
NBR/FABRIC
SAT-2953
S590358343
35.00
46.00
15.00
NBR/FABRIC
SAT-3469
S590358503
35.00
47.00
16.50
FKM/FABRIC
SAT-2813
S590358322 (Stock Item)
35.00
47.00
17.10
NBR/FABRIC
SAT-2873
S590358329
35.00
47.00
30
NBR/FABRIC
SAT-103
S590358336
35.00
47.50
17
NBR/FABRIC
SAT-2933
S590358323
35.00
48.00
20
NBR/FABRIC
SAT-1987
S590358351
35.00
48.00
40.00
NBR/FABRIC
SAT-293
S590358355
35.00
48.50
26.00
NBR/FABRIC
SAT-761
S590358312
35.00
50.00
13.80
NBR/FABRIC
SAT-4262
S590358341
35.00
50.00
17.30
NBR/FABRIC
SAT-1212
S590358301
35.00
50.00
19.2
NBR/FABRIC
SAT-2144
S590358306
35.00
50.00
20
NBR/FABRIC
SAT-329
S590358303
35.00
50.00
22.50
NBR/FABRIC
SAT-1274
S590358305 (Stock Item)
35.00
50.00
24.72
NBR/FABRIC
SAT-2872
S590358331
35.00
50.00
25
NBR/FABRIC
SAT-2521
S590358327
35.00
50.00
25.40
NBR/FABRIC+NY
SAT-2853
S590351001
35.00
50.00
27.50
NBR/FABRIC
SAT-677
S590358349
35.00
50.00
28.00
NBR/FABRIC
SAT-4442
S59035L501
35.00
50.00
29
PU
PPA-2379
S590358332
35.00
50.00
29
NBR/FABRIC
SAT-2594
S60035L501
35.00
50.00
33
PU
PPA-3435
S590358339
35.00
51.00
28
NBR/FABRIC
SAT-2198
S590358342
35.00
52.00
40
NBR/FABRIC
SAT-3342
S590358333
35.00
55.00
27
NBR/FABRIC
SAT-644
S590358313
35.00
55.00
30.00
NBR/FABRIC
SAT-1648
S590358334
35.10
50.80
22
NBR/FABRIC
SAT-2760
S590361101
36.00
46.00
16
NBR/FABRIC
SAT-782
S590368318
36.00
46.00
16.80
FKM/FABRIC
SAT-1277
S590368323
36.00
46.00
38
NBR/FABRIC
SAT-2009
S590368512
36.00
47.00
16.00
FKM
SAT-3647
S590368331
36.00
48.00
14
NBR/FABRIC
SAT-2858
S590368402
36.00
48.00
15.00
NBR/FABRIC
SAT-2050
S590368305 (Stock Item)
36.00
48.00
16.86
NBR/FABRIC
SAT-2876
S590368339
36.00
48.00
16.86
NBR/FABRIC
SAT-568
S590368326
36.00
48.00
20
NBR/FABRIC
SAT-2419
S590368336
36.00
48.00
23.00
NBR/FABRIC
SAT-3482
S590368315
36.00
50.00
20
NBR/FABRIC
SAT-2657
S590368303 (Stock Item)
36.00
50.00
22.08
NBR/FABRIC
SAT-2875
S590368319
36.00
50.00
23
NBR/FABRIC
SAT-3181
S590368328
36.00
50.00
25.50
NBR/FABRIC
SAT-2678
S59036L501
36.00
51.00
20
PU
PPA-1386
S590368321
36.00
51.00
21.30
NBR/FABRIC
SAT-721
S590368342
36.00
51.00
24.00
NBR/FABRIC
SAT-4654
S590368330
36.00
51.00
25
NBR/FABRIC
SAT-2740
S590368302
36.00
52.00
17.60
NBR/FABRIC
SAT-370
S590368301
36.00
56.00
30
NBR/FABRIC
SAT-3453
S590381001
38.00
50.00
17.00
NBR
SAT-4443
S590388347
38.00
50.00
18.00
NBR/FABRIC
SAT-935
S590388314
38.00
50.00
20
NBR/FABRIC
SAT-787
S590388330
38.00
50.00
23
NBR/FABRIC
SAT-2278
S590388502
38.00
50.00
28
FKM/FABRIC
SAT-2616
S590388320
38.00
50.00
30
NBR/FABRIC
SAT-2133
S590388345
38.00
50.00
40.00
NBR/FABRIC
SAT-651
S590388336
38.00
51.00
30
NBR/FABRIC
SAT-3076
S59038K501
38.00
53.00
23
NBR
SAT-2485
S590388343
38.00
54.00
38.00
NBR/FABRIC
SAT-4159
S590388346
38.00
55.00
30.00
NBR/FABRIC
SAT-400
S590388332
38.00
56.00
30
NBR/FABRIC
SAT-2381
S590388338
38.00
63.00
24
NBR/FABRIC
SAT-299
S590388339
38.10
50.00
21
NBR/FABRIC
SAT-3389
S59038K103
38.10
50.80
14.35
NY+HYT
SAT-154
S59038A601
38.10
50.80
19.05
NBR/FABRIC+NY
SAT-4033
S590388402
38.10
50.80
19.05
NBR
SAT-4216
S590388403
38.10
50.80
19.05
NBR/FABRIC
SAT-4525
S590388302 (Stock Item)
38.10
50.80
19.44
NBR/FABRIC
SAT-2877
S590388401
38.10
50.80
20.32
NBR/FABRIC
SAT-4072
S590388315
38.10
50.80
20.72
NBR/FABRIC
SAT-3295
S590388307
38.10
50.80
22.86
NBR/FABRIC
SAT-3385
S590388337
38.10
50.80
26
NBR/FABRIC
SAT-3075
S590388311
38.10
51.00
16.00
NBR/FABRIC
SAT-4163
S590388341
38.10
53.85
27.38
NBR/FABRIC
SAT-3629
S590388323
38.10
53.97
23.57
NBR/FABRIC
SAT-1107
S590388404
38.10
53.97
26.41
NBR/FABRIC
SAT-190
S590398301
39.00
50.00
22.80
NBR/FABRIC
SAT-2815
S590398302
39.00
56.00
25
NBR/FABRIC
SAT-3386
S590398303
39.00
60.00
26.00
NBR/FABRIC
SAT-4448
S590398304
39.50
57.00
26.00
NBR/FABRIC
SAT-322
S590408368
40.00
48.00
15.00
NBR/FABRIC
SAT-4640
S590408601
40.00
50.00
16.00
FKM/FABRIC
SAT-4020
S590408510
40.00
50.00
17.30
FKM/FABRIC
SAT-3299
S590408323 (Stock Item)
40.00
52.00
16.86
NBR/FABRIC
SAT-2881
S590408312
40.00
52.00
17.30
NBR/FABRIC
SAT-1343
S590408602
40.00
52.00
22.50
FKM/FABRIC
SAT-4278
S590408353
40.00
52.00
27.00
NBR/FABRIC
SAT-3481
S590408511
40.00
52.00
28.00
FKM/FABRIC
SAT-3648
S590408411
40.00
53.00
25.00
NBR/FABRIC
SAT-4724
S590408352
40.00
54.00
22.50
NBR/FABRIC
SAT-1372
S590408343
40.00
55.00
17.00
NBR/FABRIC
SAT-189
S590408303 (Stock Item)
40.00
55.00
22.62
NBR/FABRIC
SAT-2878
S59040L501
40.00
55.00
24
PU
PPA-2378
S590408365
40.00
55.00
24.00
NBR/FABRIC
SAT-110
S590401001
40.00
55.00
25
NBR
SAT-1739
S59040L502
40.00
55.00
26.19
PU
PPA-2658
S590408403
40.00
55.00
28.50
NBR/FABRIC
SAT-4131
S590408367
40.00
55.00
33.70
NBR/FABRIC
SAT-4630
S590408304 (Stock Item)
40.00
56.00
17.52
NBR/FABRIC
SAT-2879
S590408514
40.00
56.00
23.00
FKM/FABRIC
SAT-4433
S590408334
40.00
56.00
23.5
NBR/FABRIC
SAT-1680
S590408502
40.00
56.00
24.50
FKM/FABRIC
SAT-3193
S590408507
40.00
56.00
25
FKM/FABRIC
SAT-2022
S590408407
40.00
56.00
26.00
NBR/FABRIC
SAT-4357
S590408310
40.00
56.00
27.40
NBR/FABRIC
SAT-3279
S590408336
40.00
56.00
28
NBR/FABRIC
SAT-1806
S590408509
40.00
56.00
29
FKM/FABRIC
SAT-3229
S590408366
40.00
56.00
29.00
NBR/FABRIC
SAT-2901
S590408369
40.00
56.00
40.00
NBR/FABRIC
SAT-4719
S590408314
40.00
60.00
17.3
NBR/FABRIC
SAT-422
S590408332
40.00
60.00
25
NBR/FABRIC
SAT-2745
S590408305
40.00
60.00
30
NBR/FABRIC
SAT-1538
S590408305 (Stock Item)
40.00
60.00
30
NBR/FABRIC
SAT-2880
S590408401
40.00
65.00
32.00
NBR/FABRIC
SAT-4018
S590408337
40.00
65.00
34.00
NBR/FABRIC
SAT-1823
S590408308
40.00
65.00
35.00
NBR/FABRIC
SAT-3502
S590408306
40.00
65.00
35.72
NBR/FABRIC
SAT-643
S590418305
41.28
57.15
25.40
NBR/FABRIC
SAT-3166
S590428309
42.00
55.00
18.00
NBR/FABRIC
SAT-939
S590428301
42.00
57.00
22
NBR/FABRIC
SAT-298
S59042E701
42.87
57.15
24.58
FKM/FABRIC
SAT-478
S590439001
43.00
54.00
27.00
NBR/FABRIC
SAT-4453
S590438501
43.50
58.50
15
FKM/FABRIC
SAT-2572
S590448331
44.00
56.00
13
NBR/FABRIC
SAT-3057
S590448325
44.00
60.00
25
NBR/FABRIC
SAT-2548
S590448332
44.00
63.00
28
NBR/FABRIC
SAT-3285
S590448332
44.00
63.00
48
NBR/FABRIC
SAT-3282
S590448324
44.00
65.00
30
NBR/FABRIC
SAT-2537
S590448330
44.30
57.50
15
NBR/FABRIC
SAT-2976
S590448501
44.45
57.15
16.28
FKM/FABRIC
SAT-2124
S59044K102
44.45
57.15
24.38
NYLON
PPA-3250
S59044K101
44.45
60.32
24.38
NYLON
PPA-2588
S590448328
44.45
60.32
27.80
NBR/FABRIC
SAT-2852
S590448328
44.45
60.32
27.80
NBR/FABRIC
SAT-515
S590441101
44.45
65.07
25.4
NBR/FABRIC
SAT-2079
S590448329
44.50
52.00
15
NBR/FABRIC
SAT-2951
S590448333
44.50
63.40
22.00
NBR/FABRIC
SAT-3452
S590448402
44.50
63.50
28.00
NBR/FABRIC
SAT-380
S590458304
45.00
55.00
16
NBR/FABRIC
SAT-2296
S590458364
45.00
55.00
16.50
NBR/FABRIC
SAT-2555
S590458302
45.00
55.00
17.5
NBR/FABRIC
SAT-208
S590458372
45.00
57.00
15
NBR/FABRIC
SAT-2934
S590458351
45.00
57.00
25
NBR/FABRIC
SAT-2016
S590458393
45.00
57.00
26.00
NBR/FABRIC
SAT-126
S590450801
45.00
58.00
20.00
NBR
SAT-288
S590458352
45.00
58.00
25
NBR/FABRIC
SAT-2031
S590458520
45.00
58.00
37
FKM/FABRIC
SAT-2465
S590458317
45.00
60.00
22.22
NBR/FABRIC
SAT-1347
S590458301 (Stock Item)
45.00
60.00
22.26
NBR/FABRIC
SAT-2882
S59045L504
45.00
60.00
22.50
PU
PPA-3275
S590458384
45.00
60.00
22.50
NBR/FABRIC
SAT-3757
S590458513
45.00
60.00
24
FKM/FABRIC
SAT-1682
S590456401
45.00
60.00
24.70
FKM/FABRIC
SAT-4272
S590451002
45.00
60.00
30
NBR/FABRIC
SAT-2802
S590458370
45.00
61.00
27
NBR/FABRIC
SAT-127
S590458391
45.00
61.00
29.00
NBR/FABRIC
SAT-4596
S590458377
45.00
63.00
21.50
NBR/FABRIC
SAT-365
S590458310
45.00
63.00
30
NBR/FABRIC
SAT-364
S590458387
45.00
63.00
41.00
NBR/FABRIC
SAT-4199
S590458379
45.00
64.00
30
NBR/FABRIC
SAT-3276
S590458366
45.00
65.00
24
NBR/FABRIC
SAT-2688
S590458303
45.00
65.00
28
NBR/FABRIC
SAT-249
S59045L501
45.00
65.00
30
PU
PPA-2475
S590450601
45.00
66.00
22.50
NBR/FABRIC
SAT-3283
S590458385
45.00
66.50
24.00
NBR/FABRIC
SAT-3968
S590478401
47.00
59.00
27.00
NBR/FABRIC
SAT-4355
S5904710001
47.00
63.00
25
NBR
SAT-3232
S590478309
47.00
64.00
30
NBR/FABRIC
SAT-3131
S590478307
47.11
57.15
38.10
NBR/FABRIC
SAT-2534
S590478301
47.62
63.50
19.05
NBR/FABRIC
SAT-3384
S590471201
47.62
63.50
23.5
NBR/FABRIC
SAT-1918
S590478308
47.63
63.50
38.10
NBR/FABRIC
SAT-2679
S590488308
48.00
60.00
30
NBR/FABRIC
SAT-228
S590488304
48.00
62.00
20.20
NBR/FABRIC
SAT-229
S590488307
48.00
63.00
13
NBR/FABRIC
SAT-3134
S590488306 (Stock Item)
48.00
63.00
28.50
NBR/FABRIC
SAT-2883
S590508341
50.00
60.00
16
FKM/FABRIC
SAT-650
S590506903
50.00
60.00
17
PTFE
SAT-2617
S590508392
50.00
60.00
18
NBR/FABRIC
SAT-3121
S590508606
50.00
60.00
20.00
FKM/FABRIC
SAT-4234
S590508351
50.00
60.00
25
NBR/FABRIC
SAT-1250
S590508385
50.00
63.00
18.80
NBR/FABRIC
SAT-2027
S590508405
50.00
63.00
32.00
NBR/FABRIC
SAT-4027
S5905083B4
50.00
63.50
19.00
NBR/FABRIC
SAT-4400
S590506008
50.00
64.00
22
PU
PPA-2540
S590508376
50.00
64.00
22
NBR/FABRIC
SAT-2459
S5905083A3
50.00
64.50
22
NBR/FABRIC
SAT-3388
S590508380
50.00
65.00
11.56
NBR/FABRIC
SAT-2690
S5905083A7
50.00
65.00
15.00
NBR/FABRIC
SAT-3754
S59050K105
50.00
65.00
16.00
NBR+PU+NY
PPA-376
S59050K104
50.00
65.00
16.22
NY+HYT
PPA-3486
S590508398
50.00
65.00
18
NBR/FABRIC
SAT-1076
S59050L503
50.00
65.00
21
PU
PPA-2538
S590508610
50.00
65.00
24.50
FKM/FABRIC
SAT-4533
S590508378
50.00
65.00
25
NBR/FABRIC
SAT-2529
S590508604
50.00
65.00
25.00
NBR/FABRIC
SAT-4161
S5905083B6
50.00
65.00
25.00
NBR/FABRIC
SAT-921
S590508306 (Stock Item)
50.00
65.00
25.20
NBR/FABRIC
SAT-2886
S590508327
50.00
65.00
25.50
NBR/FABRIC
SAT-1681
S590508313
50.00
65.00
27.00
NBR/FABRIC
SAT-3743
S590508408
50.00
65.00
30.00
NBR/FABRIC
SAT-4239
S590501003
50.00
65.00
32
NBR
SAT-3224
S590508326
50.00
65.00
34.80
NBR/FABRIC
SAT-991
S590508349
50.00
65.60
25.60
NBR/FABRIC
SAT-1164
S590508362
50.00
65.92
30
NBR/FABRIC
SAT-1679
S590508362
50.00
65.92
30
NBR/FABRIC
SAT-2567
S590508503
50.00
66.00
20
FKM/FABRIC
SAT-3398
S590508513
50.00
66.00
21
FKM
PPA-1468
S590508513
50.00
66.00
21
FKM
SAT-2510
S5905083A6
50.00
66.00
22.00
NBR/FABRIC
SAT-3441
S590508310
50.00
66.00
24
NBR/FABRIC
SAT-3151
S59050K206
50.00
66.00
27
FKM/FABRIC
SAT-2035
S590508393
50.00
66.00
30
NBR/FABRIC
SAT-3137
S590508514
50.00
68.00
30
FKM/FABRIC
SAT-300
S590508355
50.00
69.60
30
NBR/FABRIC
SAT-1480
S590508515
50.00
70.00
22
FKM/FABRIC+PFT
SAT-2846
S590501002
50.00
70.00
22.50
NBR/FABRIC
SAT-2559
S59050EJ01
50.00
70.00
25.80
EPDM
SAT-796
S590508507
50.00
70.00
29.90
FKM/FABRIC
SAT-2415
S590508304
50.00
70.00
30
NBR/FABRIC
SAT-1668
S590508304
50.00
70.00
30
NBR/FABRIC
SAT-352
S590508311 (Stock Item)
50.00
70.00
33.72
NBR/FABRIC
SAT-2885
S590508311
50.00
70.00
35
NBR/FABRIC
SAT-773
S5905083A9
50.00
72.00
27.00
NBR/FABRIC
SAT-4063
S590508395
50.00
72.00
30
NBR/FABRIC
SAT-3145
S5905083A1
50.00
72.00
30
NBR/FABRIC
SAT-3327
S5905083A5
50.00
75.00
34.53
NBR/FABRIC
SAT-3483
S590508384
50.00
76.00
30
NBR/FABRIC
SAT-2793
S590508396
50.00
76.00
35
NBR/FABRIC
SAT-1515
S5905083B7
50.80
60.32
17.27
NBR/FABRIC
SAT-4634
S59050K102
50.80
63.50
14.65
NYLON
SAT-4532
S590508312
50.80
63.50
15.00
NBR/FABRIC
SAT-1860
S590508512
50.80
63.50
16.25
FKM/FABRIC
SAT-2490
S59050K103
50.80
63.50
19.05
NY+HYT
PPA-132
S590508303
50.80
63.50
22.22
NBR/FABRIC
SAT-2283
S590508336
50.80
63.50
36
NBR/FABRIC+NY
SAT-2844
S590508399
50.80
65.08
25.40
NBR/FABRIC
SAT-3268
S590508324
50.80
66.50
25
NBR/FABRIC
SAT-3316
S590509001
50.80
66.77
24.20
NBR/FABRIC
SAT-4720
S590508309 (Stock Item)
50.80
69.80
33.48
NBR/FABRIC
SAT-2884
S590506501
50.80
69.85
22.23
FKM/FABRIC
SAT-788
S590508520
50.80
69.85
25.40
FKM/FABRIC
SAT-3230
S590508521
50.80
69.85
34.92
FKM/FABRIC
SAT-3231
S590508612
50.80
69.85
53.97
FKM/FABRIC
SAT-4615
S590508382
50.80
76.20
33.33
NBR/FABRIC
SAT-2722
S590538303 (Stock Item)
53.97
69.85
25.26
NBR/FABRIC
SAT-2887
S590538309
53.97
69.85
35
NBR/FABRIC
SAT-3038
S590538310
53.97
73.02
31.50
NBR/FABRIC
SAT-680
S59053L301
53.97
79.37
23.57
AFLAS
SAT-3673
S590548302
54.00
65.00
20.50
NBR/FABRIC
SAT-3775
S590548301
54.00
70.00
25
NBR/FABRIC
SAT-3074
S590558326
55.00
66.00
30
NBR/FABRIC
SAT-3262
S590558405
55.00
68.00
14.00
NBR/FABRIC
SAT-4558
S59055S801
55.00
68.00
15.10
NBR
SAT-269
S590558323
55.00
70.00
22.50
NBR/FABRIC
SAT-2782
S590551002
55.00
70.00
25
NBR
SAT-3170
S590558402
55.00
70.00
26.5
NBR/FABRIC
SAT-1543
S590558301
55.00
70.00
35.32
NBR/FABRIC
SAT-320
S590558321
55.00
70.00
38
NBR/FABRIC
SAT-2484
S590558327
55.00
71.00
23
NBR/FABRIC
SAT-3387
S590557802
55.00
75.00
25.00
HYT
PPA-219
S590558324
55.00
75.00
25.50
FKM/FABRIC
SAT-2963
S590558330
55.00
75.00
27.00
NBR/FABRIC
SAT-849
S590558501
55.00
75.00
36.00
FKM/FABRIC
SAT-3879
S590558304 (Stock Item)
55.00
75.00
38.46
NBR/FABRIC
SAT-2888
1
2
3
For customised items please
Click here
Login
