S29: Hydraulic Rod Seals - Max Spare India (Spareage)

Max Spare : S29

Profile : Rod Seals

Details :

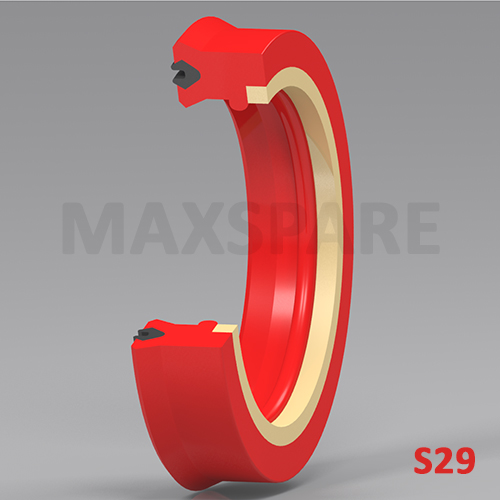

S29 is designed for the use of heavy duty application. It comprises of twin lip rod seal with a unique profile NBR energizer and thermoplastic back up ring. The rubber energizer ensures complete lip actuation under all pressure conditions and the back up ring enables the seal to withstand side loads extreme pressure, peaks even with the extrusion gaps.

MATERIAL

U Seal	:	Polyurethane 92 shore A
O Ring	:	NBR 70/75 Shore A
Back Up Ring	:	POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	700 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Hydraulic mineral oils, bio oils, water soluble and water glycol fluids.

APPLICATION

Standard Industrial Cylinders.
Agricultural Machines.
Industrial Trucks.
Medium-heavy duty cylinders.

FEATURES

Double lip design after primary lip protection.
High pressure & shock loading capacity.
Twin lip design.
Low-pressure sealing.
Increased stability.
Long service life.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
S29012L501	12.00	24.00	12	PU	CS-2656
S29015S801	15.00	25.00	8	NBR	CS-2888
S290165901	16.00	26.00	11	NBR	CS-2886
S29016L501	16.00	28.00	12	NBR+PU	CS-2704
S29020S801	20.00	35.00	10	NBR	CS-3174
S290225901	22.00	32.00	10.00	NBR+PU	CS-451
S29022L501	22.00	35.00	10	NBR+PU	CS-1707
S290286002	28.00	40.00	10	NBR	CS-3120
S29028S401	28.43	44.57	5.42	HNBR	SUB-4474
S29030Y502	30.00	40.00	5.70	NBR+PU+ACT	CS-3561
S29030L501	30.00	40.00	7.30	NBR	CS-2068
S29030Y501	30.00	40.00	7.30	NBR+PU+ACT	CS-3533
S290305901	30.00	45.00	11.00	NBR+PU	CS-452
S290316701	31.75	41.27	7.92	FKM	SUB-2728
S29031L501	31.75	41.28	6.35	NBR	CS-2067
S29031L502	31.75	41.28	7.94	NBR+PU	CS-428
S290316401	31.75	50.00	11.11	FKM	CS-2982
S29035L501	35.00	45.00	10.00	NBR+PU	CS-422
S29035Y501	35.00	45.00	7.30	NBR+PU+ACT	CS-324
S29036L501	36.00	46.00	7.30	NBR/PU	CS-2220
S29036Y501	36.00	46.00	7.30	NBR+PU	CS-3436
S29036L502	36.00	46.00	7.30	NBR+PU	CS-466
S29036O301	36.40	44.36	3.65	NBR	SUB-2952
S29037O301	37.00	47.00	4.40	NBR	SUB-3824
S29038Y501 (Stock Item)	38.00	48.00	7.30	NBR+PU	CS-3624
S29038L503	38.10	47.62	7.92	PU	PUB-666
S290386701	38.10	47.62	7.92	FKM	SUB-2729
S29038L501	38.10	47.63	7.94	NBR+PU	CS-465
S29038L502	38.10	50.80	9.53	NBR+PU	CS-463
S29038S401	38.43	54.57	5.42	HNBR	SUC-2986
S29039O301	39.55	47.55	3.67	NBR	SUB-3825
S29040L504	40.00	50.00	10.00	NBR+PU	CS-462
S29040L501	40.00	50.00	7.30	NBR	CS-2045
S29040L502	40.00	50.00	7.30	NBR/PU	CS-2221
S29040Y501	40.00	50.00	7.30	NBR+PU	CS-3435
S29040Y502	40.00	50.00	8.20	PU	CS-3516
S29040Y503 (Stock Item)	40.00	55.00	11.50	NBR+PU+ACT	CS-3602
S29040O301	40.15	50.15	4.40	NBR	SUC-2569
S29043S401	43.43	59.57	5.42	HNBR	SUC-2985
S29044L503	44.45	53.98	6.35	NBR+PU	CS-461
S29044L504	44.45	53.98	9.53	NBR+PU	CS-460
S290441001	44.45	57.15	4.40	NBR	SUC-1530
S29044L501	44.45	57.15	9.52	PU	PUC-866
S29044L501	44.45	57.15	9.52	NBR	SUC-1956
S29044L505	44.45	57.15	9.53	NBR+PU	CS-458
S29045L502	45.00	55.00	10.00	NBR+PU	CS-457
S29045Y503 (Stock Item)	45.00	55.00	6.30	NBR+PU+ACT	CS-500
S29045Y501	45.00	55.00	7.30	NBR	CS-3374
S29045L503	45.00	55.00	7.30	NBR+PU+ACT	CS-486
S29045Y502	45.00	55.00	8	NBR+PU	CS-3548
S290451001	45.90	53.90	3.67	NBR	SUC-1593
S290461001	46.95	59.55	5.50	NBR	SUC-2641
S29048S401	48.43	64.57	5.42	HNBR	SUC-2984
S29050L506	50.00	60.00	10.00	NBR+PU	CS-453
S29050L503	50.00	60.00	7.30	NBR	CS-2042
S29050Y501	50.00	60.00	7.30	NBR+PU	CS-3434
S29050Y503	50.00	60.00	8.30	NBR	CS-3514
S29050L507	50.00	65.00	10.00	NBR+PU	CS-436
S29050L508	50.00	65.00	11.40	NBR+PU	CS-447
S29050Y502	50.00	65.00	11.50	NBR+PU	CS-3438
s29050y504	50.00	65.00	9	NBR+PU	CS-3578
S29050L501	50.80	60.33	9.53	NBR	CS-2044
S290501001	50.80	63.50	4.40	NBR	SUC-1534
S29050D601	50.80	63.50	4.40	HNBR	SUC-3265
S29050L502	50.80	63.50	9.53	NBR	CS-2043
S290506701	50.80	66.67	9.52	FKM	CS-2858
S29052O301	52.25	60.25	3.67	NBR	SUC-2572
S29053S401	53.43	69.57	5.42	HNBR	SUC-2983
S29055Y507 (Stock Item)	55.00	65.00	6.30	NBR+PU+ACT	CS-3654
S29055Y503	55.00	65.00	7.30	NBR+PU+ACT	CS-3554
S29055Y502	55.00	68.00	10	NBR+PU	CS-3530
S29055L503	55.00	70.00	11.40	NBR+PU	CS-446
S29055Y501	55.00	70.00	11.50	NBR+PU	CS-3459
S29055Y504	55.00	70.00	9	NBR+PU+ACT	CS-3556
S29056L501	56.00	71.00	11.40	NBR+PU	CS-433
S290571001	57.15	69.85	4.4	NBR	SUC-1556
S29060L504	60.00	70.00	10.00	NBR	CS-3285
S29060Y505 (Stock Item)	60.00	70.00	6	NBR+PU	CS-3640
S29060L503	60.00	72.00	8.60	NBR	CS-2040
S29060Y502	60.00	73.00	10	NBR	CS-3422
S29060L502	60.00	75.00	11.40	NBR	CS-2041
S29060Y501	60.00	75.00	11.5	NBR	CS-362
S29045L501	60.00	75.00	12.50	NBR	CS-1950
S29060Y503	60.00	75.00	9	NBR+PU	CS-3546
S290601001	60.32	73.02	4.40	NBR	SUC-1537
S290620801	62.00	75.00	9.50	NBR/FABRIC+NY	CS-848
S290630802	63.00	75.00	8	NBR	CS-2233
S290630801	63.00	75.00	9.50	NBR+PU+NY	CS-2070
S29063L501	63.00	78.00	11.40	NBR+PU	CS-431
S29063Y501 (Stock Item)	63.00	78.00	11.50	PU+ACT-1	CS-3615
S29063L502	63.50	76.20	9.53	NBR+PU	CS-424
S29065Y505 (Stock Item)	65.00	75.00	12	PU+ACT-1	CS-3616
S29065Y506	65.00	75.00	6.30	NBR+PU	CS-188
S29065Y504 (Stock Item)	65.00	75.00	9	NBR+PU+ACT	CS-3588
S29065Y503	65.00	78.00	10	NBR+PU	CS-3531
S29065L502	65.00	80.00	10	NBR	CS-2766
S29065Y501	65.00	80.00	11.50	NBR+PU	CS-3437
S29065L501	65.00	80.00	9	NBR	CS-2039
S29065Y502	65.00	80.00	9.50	NBR	CS-3515
S290690801	69.85	82.55	9.52	NBR+PU+ACT	CS-649
S29070Y502	70.00	80.00	6.00	NBR+PU	CS-233
S29070Y503 (Stock Item)	70.00	83.00	10.00	NBR+PU+ACT	CS-496
S29070L502	70.00	85.00	10	NBR	CS-2037
S29070L501	70.00	85.00	11.40	NBR	CS-2038
S29070Y504 (Stock Item)	70.00	85.00	11.50	NBR+PU	CS-738
S29070Y501 (Stock Item)	70.00	85.00	9	PU-X-NT4/B	CS-3591
S29075Y505	75.00	85.00	6.00	NBR+PU	CS-3664
S29075Y504	75.00	85.00	6.30	NBR+PU	CS-212
S29075L501	75.00	88.00	10	NBR	CS-2036
S29075Y506 (Stock Item)	75.00	88.00	10.00	NBR+PU+ACT	CS-504
S29075L502	75.00	90.00	9	NBR	CS-2049
S29075Y502	75.00	90.00	9	NBR+PU	CS-3464
S29075Y503 (Stock Item)	75.00	95.00	15	NBR+PU+ACT	CS-3536
S29076CF01	76.20	88.90	12.70	NBR/PU	CS-3215
S290761001	76.20	88.90	4.40	NBR	SUD-1186
S29076L502	76.20	88.90	9.53	NBR	CS-2047
S29076L501	76.20	92.08	12.70	NBR	CS-2048
S290781002	78.74	91.32	5.48	NBR	SUD-1339
S29080Y504 (Stock Item)	80.00	90.00	6.00	NBR+PU	CS-257
S29080Y503 (Stock Item)	80.00	90.00	6.30	NBR+PU+ACT	CS-3586
S29080L501	80.00	93.00	10	NBR	CS-2046
S29080Y502 (Stock Item)	80.00	93.00	10	NBR+PU+ACT	CS-3575
S29080Y506 (Stock Item)	80.00	95.00	10.00	NBR+PU+ACT	CS-762
S29080L502	80.00	95.00	11.40	NBR	CS-2253
S29080Y501 (Stock Item)	80.00	95.00	9	NBR+PU	CS-3377
S29080Y505 (Stock Item)	80.00	100.00	15.00	NBR+PU	CS-644
S290841001	84.60	101.42	7.28	NBR	SUE-1602
S29085L501	85.00	97.00	8.60	NBR	CS-2050
S29085Y501	85.00	100.00	9	NBR	CS-3376
S29085Y502 (Stock Item)	85.00	105.00	12.00	NBR+PU	CS-606
S29085Y503 (Stock Item)	85.00	105.00	12.00	NBR+PU+ACT	CS-612
S290851001	85.92	93.06	2.75	NBR	SUD-883
S290886601	88.90	101.60	9	FKM	CS-2181
S29088L501	88.90	101.60	9.53	NBR	CS-2054
S29088L502	88.90	104.78	12.70	NBR	CS-2053
S29016Y501	88.90	107.94	12.50	NBR+PU	CS-3423
S29090L502	90.00	105.00	10	NBR	CS-2052
S29090L504	90.00	105.00	11.40	NBR	CS-2254
S29090Y502 (Stock Item)	90.00	105.00	11.50	PU-X-NT4/B	CS-739
S290906401	90.00	105.00	12.50	FKM	SUE-1620
S29090L503	90.00	110.00	14	NBR+PU	CS-2232
S29090Y501 (Stock Item)	90.00	110.00	14.80	NBR+PU+ACT	CS-408
S29095L503	95.00	110.00	10	NBR	CS-2051
S29095Y503 (Stock Item)	95.00	110.00	10.00	NBR+PU+ACT	CS-764
S29095L502	95.00	110.00	14	PU	CS-1583
S29095Y501	95.00	110.00	9	NBR	CS-3372
S29095Y502	95.00	115.00	12	NBR	CS-3380
S29099L501	99.00	115.00	14.50	NBR+PU	CS-2230
S29100L502	100.00	115.00	14.15	NBR+PU	CS-2231
S29100Y501	100.00	115.00	9	NBR+PU	CS-3433
S291001001	100.00	120.00	14.50	NBR	CS-1966
S29100L501	100.00	120.00	14.50	NBR	CS-2055
S29100L503	100.00	125.00	15	NBR	CS-2235
S29101L501	101.60	114.30	9.53	NBR+PU	CS-420
S29105L501	105.00	120.00	12	NBR	CS-2059
S29105L502	105.00	120.00	14.50	NBR	CS-2058
S29105L503	105.00	120.00	15.00	NBR	CS-3330
S29110L503	110.00	125.00	12	NBR	CS-2056
S29110L502	110.00	130.00	12	NBR	CS-2057
S29110L504	110.00	130.00	14.50	NBR	CS-2060
S291106701	110.00	130.00	14.60	FKM	CS-2194
S291101001	110.03	126.83	7.28	NBR	SUF-961
S291156701	115.00	135.00	14.60	FKM	CS-3353
S291200801	120.00	135.00	14	NBR	CS-1971
S29120Y501 (Stock Item)	120.00	135.00	9.00	NBR+PU+ACT	CS-717
S29120L501	120.00	140.00	12	NBR	CS-2061
S291221001	122.94	139.74	7.23	NBR	SUF-930
S29127L504	127.00	142.87	15.87	NBR/PU	CS-607
S29130L501	130.00	150.00	14.50	NBR	CS-2062
S291351001	135.84	145.84	4.39	NBR	SUF-746
S29140L501	140.00	155.00	14.50	PU	CS-1555
S29140L503	140.00	155.00	14.60	NBR	CS-3315
S29140L502	140.00	160.00	14.50	NBR	CS-2063
S29152L501	152.40	171.45	15.88	NBR	CS-2064
S291531001	153.00	162.50	4.20	NBR	SUG-112
S291601001	160.95	177.75	7.30	NBR	SUH-575
S291691001	169.62	182.22	5.49	NBR	SUH-548
S29180L501	180.00	205.00	18.20	NBR	CS-2065
S291801001	180.40	190.40	4.49	NBR	CS-3181
S29185L501	185.00	205.00	18.50	NBR	CS-2066
S291911001	191.10	200.60	4.20	NBR	SUJ-145
S29203L501	203.20	228.60	19.05	PU	PUK-141
S29203L501.	203.20	228.60	19.05	PU	SUK-262
S292051001	205.58	215.58	4.40	NBR	SUJ-454
S29220L501	220.00	240.00	16.00	PU-X-NT4/B	CS-483
S292321001	232.75	252.75	8.80	NBR	SUM-915
S292561002	256.55	273.35	7.30	NBR	SUM-901
S292561001	256.70	266.70	4.40	NBR	SUM-810
S293071001	307.40	324.20	7.30	NBR	SUM-882
S293091001	309.13	329.13	8.80	NBR	SUM-809
S29315L501	315.00	355.00	31.00	PU	PUM-327
S29360P401	360.12	380.13	8.80	NBR	SUM-144
S294206002	420.00	460.00	31	NBR	SUVG-662
S294506002	450.00	490.00	30.00	NBR	SUVG-795
S294606003	460.00	490.00	30	NBR/FABRIC	SUVG-545
S295400803	540.00	580.00	33.50	NBR	SPA-6962
