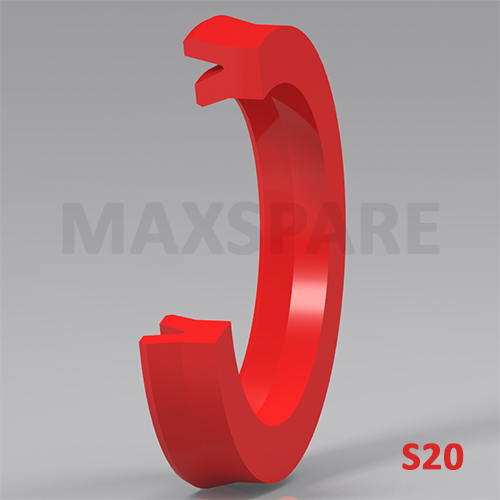

Max Spare : S20

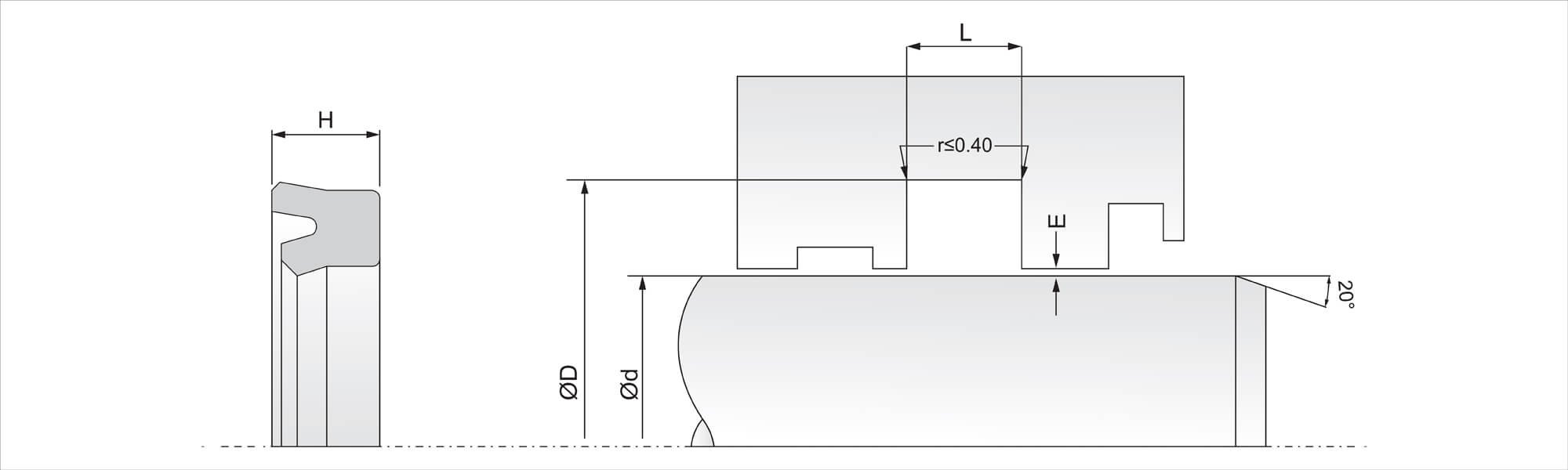

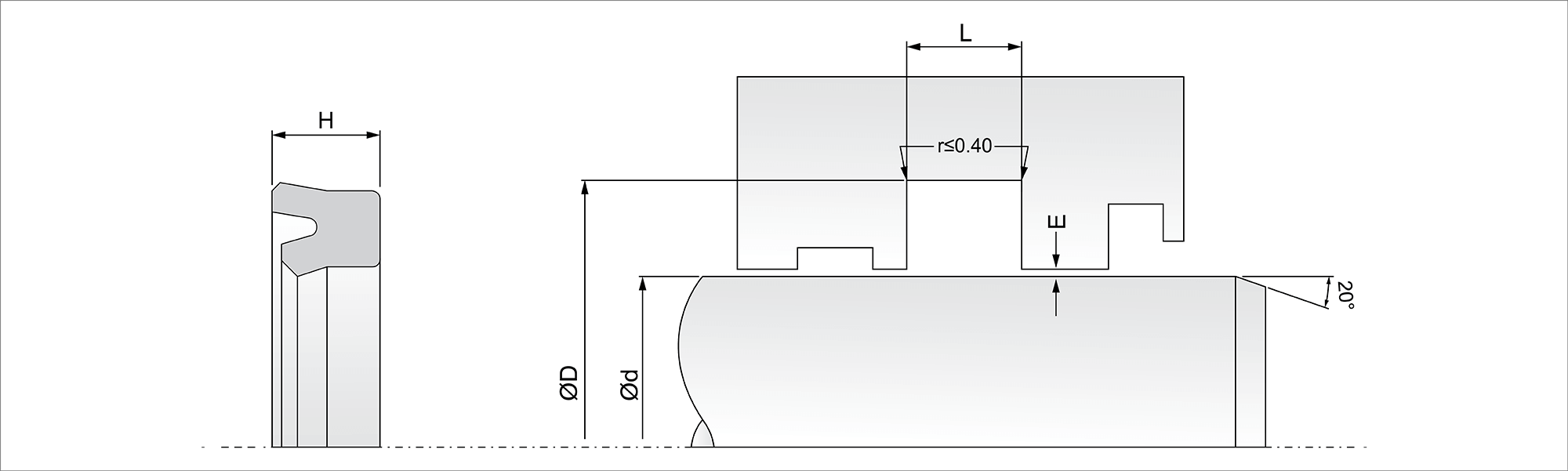

Profile : Rod Seals
Details :
S20 seal is suited for solid gland. Easy to snap into groove thus makes installation easy for this seal. The S20 seal is available in 2 versions, NBR & Polyurethane compound. Due to excellent wear resistance properties of polyurethane, the life expected is 3 times that of NBR.
MATERIAL
Polyurethane 92 Shore A
Nitrile Rubber 80/85 Shore A
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
PU - 400 Bar
: NBR - 160 Bar
Speed
:
PU - 1.0 m/s
: NBR - 0.5 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids
APPLICATION
Light to medium duty cylinders.
Can also be used in conjunction with S15 style rod seals for heavy duty applications.
Mining equipment.
Hydraulic presses.
FEATURES
Simple installation.
Good media resistance.
Used as an individual seal or as a secondary seal possible within sealing system.
Manufactured by:
Max Spare Limited
Product ID:
/details?id=11&name=s20
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
S200031103
3.00
7.00
5.3
NBR
SUA-1414
S200032401
3.00
8.50
4.30
NEOPRENE
SUA-2374
S200031005
3.00
10.00
5.00
NBR
SUA-2730
S20003L501
3.00
10.00
6
PU
PUA-932
S200041102
4.00
7.50
3
NBR
SUA-817
S200041104
4.00
9.00
3.50
NBR
SUA-1841
S20004L502
4.00
10.00
4
PU
PUA-313
S200041106
4.00
10.00
4
NBR
SUA-1987
S200041105
4.00
10.00
4.20
NBR
SUA-1840
S200046603
4.00
10.00
5.20
FKM
SUA-2091
S200041003
4.00
16.00
11.50
NBR
SUA-2362
S200041107
4.50
10.50
3.00
NBR
SUA-2494
S200041004
4.80
11.80
5.00
NBR
SUA-2782
S200051103
5.00
9.00
2.50
NBR
SUA-2283
S200051102
5.00
9.00
3
NBR
SUA-1839
S200051201
5.00
11.00
3.90
NBR
SUA-2785
S20005L507
5.00
11.00
4.30
PU
PUA-209
S20005R701
5.00
12.00
4.20
PU
PUA-245
S20005L505
5.00
12.00
5
PU
PUA-810
S20005L503
5.00
12.00
5.80
PU
PUA-750
S20005V201
5.00
12.00
5.80
NBR
SUA-2573
S20005L506
5.50
18.50
12
PU
PUA-969
S200051104
5.55
11.90
5.15
NBR
SUA-2592
S20005L502
5.95
12.30
8
PU
PUA-629
S200061106
6.00
9.00
2.1
NBR
SUA-1037
S200061109
6.00
9.00
4
NBR
SUA-2125
S20006P401
6.00
10.00
2.50
NBR
SUA-2508
S20006L401
6.00
10.00
3
PU
PUA-786
S200066701
6.00
10.00
3
FKM
SUA-2072
S200061001
6.00
10.00
3
NBR
SUA-911
S200061003
6.00
10.00
3.2
NBR
SUA-1397
S200061005
6.00
10.00
4
NBR
SUA-660
S20006L506
6.00
12.00
10
PU
PUA-563
S200061004
6.00
12.00
10
NBR
SUA-1646
S20006L508
6.00
12.00
4
PU
PUA-724
S20006L502
6.00
12.00
5.50
PU
PUA-301
S200063401
6.00
12.00
5.50
EPDM
SUA-1975
S200065902
6.00
13.00
8
PU
PUA-156
S20006L503
6.00
14.00
10.00
PU
PUA-339
S200061006
6.35
12.70
3.20
NBR
SUA-2305
S200068701
6.35
12.70
3.90
PU
PUA-526
S20006L511
6.35
14.47
5.00
PU
PUA-195
S20007L501
7.00
12.00
3.50
PU
PUA-774
S200073502
7.00
13.00
4.00
EPDM
SUA-2425
S20007L502
7.00
13.50
5.00
PU
PUA-183
S200076605
7.00
13.80
4.50
FKM
SUA-2437
S200076501
7.00
14.00
4.90
FKM
SUA-2716
S200076606
7.00
15.00
5.70
FKM
SUA-2576
S200076602
7.90
19.80
7.80
FKM
SUA-2076
S200076604
7.90
19.80
9
FKM
SUA-2220
S200076603
7.90
22.00
7
FKM
SUA-2077
S200071001
7.93
14.28
3.17
NBR
SUA-1866
S200081103
8.00
11.00
2
NBR
SUA-1774
S200081102
8.00
13.00
3
NBR
SUA-1838
S200081001
8.00
13.00
3.2
NBR
SUA-1470
S20008L503
8.00
14.00
4
PU
PUA-638
S200080803
8.00
14.00
4
NBR
SUA-663
S200088901
8.00
14.00
4.00
PU
PUA-923
S200081106
8.00
14.00
4.00
NBR
SUA-2791
S200086701
8.00
15.00
5.70
FKM
SUA-2033
S20008L502
8.00
15.00
6
PU
PUA-614
S20008L504
8.00
16.00
5
PU
PUA-831
S20008L505
8.00
16.00
5
PU
PUA-862
S20008L506
8.00
16.00
5.30
PU
PUA-1005
S200086601
8.00
16.00
5.5
FKM
SUA-1001
S200081002
8.00
16.00
5.50
NBR
SUA-2689
S200081105
8.00
18.00
8.00
NBR
SUA-2228
S200086604
8.00
20.00
6.00
FKM
SUA-2750
S200086603
8.00
20.10
8
FKM
SUA-2349
S200080804
8.90
17.30
3.96
NBR
SUA-1601
S20009L503
9.00
12.00
3
PU
PUA-588
S20009L504
9.00
14.00
8.70
PU
PUA-630
S20009L501
9.00
14.50
5
PU
PUA-288
S200094301
9.00
16.00
2.90
SILICON
SUA-2160
S200091104
9.50
14.50
3.30
NBR
SUA-2144
S200090803
9.52
12.70
2.23
NBR
SUA-856
S20009L505
9.52
15.87
3.20
PU
PUA-839
S200091001
9.52
15.87
3.20
NBR
SUA-2380
S200091105
9.52
16.30
3.94
NBR
SUA-2242
S200095903
9.52
16.50
4.20
PU
PUA-129
S200101102
10.00
13.00
2
NBR
SUA-822
S200101109
10.00
13.20
2.30
NBR
SUA-1955
S200101103
10.00
13.50
2.30
NBR
SUA-1466
S200101107
10.00
13.60
2.30
NBR
SUA-1836
S200101106
10.00
14.00
2
NBR
SUA-1837
S200101104
10.00
14.00
2.3
NBR
SUA-1467
S200101110
10.00
14.00
2.50
NBR
SUA-2145
S200101105
10.00
14.00
4
NBR
SUA-1832
S200106603
10.00
14.90
2
FKM
SUA-1660
S200101108
10.00
16.00
2.70
NBR
SUA-1849
S200101112
10.00
16.00
3.00
NBR
SUA-2708
S200106605
10.00
16.00
3.50
FKM
SUA-2343
S200106601
10.00
16.00
4
FKM
SUA-1583
S200101111
10.00
16.00
4.20
NBR
SUA-2287
S200106704
10.00
16.00
4.50
FKM
SUA-2649
S20010L504
10.00
16.00
4.80
PU
PUA-868
S200106602
10.00
16.00
5
FKM
SUA-1650
S20010P501
10.00
16.00
6.00
NBR
SUA-2546
S200101008
10.00
18.00
5.50
NBR
SUA-2641
S200101007
10.00
18.00
5.70
NBR
SUA-2629
S20010V202
10.00
18.00
5.80
NBR
SUA-2574
S200108701
10.00
18.30
5.80
PU
PUA-961
S200100701
10.00
20.00
5
NBR
SUA-1809
S200106703
10.00
20.00
6.50
FKM
SUA-2172
S200100802
10.00
20.00
7
NBR
SUA-1783
S200106604
10.00
20.00
7
FKM
SUA-1973
S200101006
10.00
20.00
7.00
NBR
SUA-2490
S20010L502
10.00
20.00
7.50
PU
PUA-671
S20010L505
10.00
22.00
7.30
PU
PUA-992
S200111002
11.00
16.00
2.50
NBR
SUA-2373
S200111001
11.11
19.05
3.96
NBR
SUA-1767
S20011L501
11.50
20.00
5.70
PU
PUA-920
S20011CG01
11.96
16.81
3
PU
PUA-836
S20011L503
11.96
16.81
3.00
PU
PUA-174
S200121114
12.00
16.00
3
NBR
SUA-1834
S200121115
12.00
16.70
2.50
NBR
SUA-2115
S200120805
12.00
17.00
3.50
NBR
SUA-2442
S200121113
12.00
17.00
3.70
NBR
SUA-1835
S20012V301
12.00
18.00
4.00
NBR
SUA-2642
S200121006
12.00
18.00
8.00
NBR
SUA-2588
S200120804
12.00
18.50
4.00
NBR
SUA-993
S200126601
12.00
18.50
4.5
FKM
SUA-852
S200123401
12.00
18.50
4.50
EPDM
SUA-2177
S20012L515
12.00
19.00
3.25
PU
PUA-196
S200121117
12.00
19.00
4.00
NBR
SUA-2754
S200121116
12.00
19.00
4.60
NBR
SUA-2288
S20012L511
12.00
19.00
5
PU
PUA-102
S20012BF01
12.00
19.00
5.00
SILICON
SUA-2694
S20012L508
12.00
20.00
5
PU
PUA-542
S20012L512
12.00
20.00
5.30
PU
PUA-1006
S200121007
12.00
20.00
5.40
NBR
SUA-2657
S200126602
12.00
20.00
5.50
FKM
SUA-1004
S200121005
12.00
20.00
5.50
NBR
SUA-2544
S200121008
12.00
20.00
5.50
NBR
SUA-2688
S200126703
12.00
20.00
5.70
FKM
SUA-2013
S200121103
12.00
20.00
6
NBR
SUA-417
S200121009
12.00
20.00
6.00
NBR
SUA-584
S20012L401
12.00
20.00
6.40
PU
PUA-529
S20012L510
12.00
20.00
6.70
PU
PUA-687
S200126605
12.00
22.00
5.00
FKM
SUA-2743
S20012L513
12.00
22.00
6.00
PU
PUA-164
S20012L514
12.00
22.00
7.00
PU
PUA-205
S20012U301
12.00
22.00
7.30
FKM
SUA-2746
S20012U302
12.00
22.00
8.00
FKM
SUA-2747
S200126706
12.00
22.00
8.00
FKM
SUA-2764
S200121105
12.00
25.00
5.5
NBR
SUA-853
S200121118
12.00
25.00
5.50
NBR
SUA-410
S200126604
12.00
28.00
8.00
FKM
SUB-4069
S20012L509
12.50
20.50
5
PU
PUA-646
S20012D601
12.50
24.00
4.90
HNBR
SUA-1964
S200126402
12.70
19.05
3.50
FKM
SUA-2757
S200126603
12.70
19.05
3.78
FKM
SUA-2184
S200121004
12.70
25.40
4.76
NBR
SUB-3913
S200134301
13.00
20.00
5.30
SILICON
SUA-2729
S20013L501
13.00
22.00
8.00
PU
PUA-216
S200131001
13.50
20.00
9.00
NBR
SUA-581
S20014O401
14.00
18.00
3
FKM
SUA-1847
S20014L507
14.00
18.60
3.30
PU
PUA-309
S20014CF01
14.00
18.60
3.30
PU
PUA-814
S200141103
14.00
19.00
3.50
NBR
SUA-2084
S20014L503
14.00
20.00
2.60
PU
PUA-899
S200141004
14.00
20.00
4.50
NBR
SUA-2594
S20014L504
14.00
20.00
5
PU
PUA-967
S200141006
14.00
20.00
5.00
NBR
SUA-484
S200141007
14.00
20.00
9.00
NBR
SUA-574
S20014L505
14.00
21.00
5.00
PU
PUA-994
S20014L506
14.00
22.00
4.00
PU
PUA-154
S200148701
14.00
22.00
4.50
PU
PUA-523
S200141104
14.00
22.00
4.50
NBR
SUA-2515
S20014L502
14.00
22.00
5
PU
PUA-608
S200141003
14.00
22.00
5
NBR
SUA-1088
S200141106
14.00
22.00
5.50
NBR
SUA-2667
S200148704
14.00
22.00
5.70
PU
PUA-248
S20014U401
14.00
22.00
5.70
EPDM
SUA-2534
S200141001
14.00
23.00
8
NBR
SUA-1443
S20014D603
14.00
24.00
4.90
HNBR
SUA-1982
S200142001
14.00
24.00
5.00
NEOPRENE
SUA-1413
S200141005
14.00
25.00
8.00
NBR
SUA-2697
S200141102
14.00
25.50
10
NBR
SUB-3031
S20014D601
14.00
26.00
4.90
HNBR
SUB-3282
S200141105
14.00
28.00
10.40
NBR
SUB-787
S20014D602
14.00
30.00
4.90
HNBR
SUB-3283
S200146601
14.80
25.00
6
FKM
SUA-1584
S200151104
15.00
22.00
4
NBR
SUA-2154
S200151003
15.00
22.00
5.50
NBR
SUA-2344
S20015S401
15.00
23.00
5.00
HNBR
SUA-600
S20015L510
15.00
23.00
5.70
PU
PUA-135
S200153401
15.00
23.00
5.70
EPDM
SUA-701
S20015L504
15.00
25.00
5
PU
PUA-762
S200156602
15.00
25.00
6
FKM
SUA-1233
S20015L508
15.00
25.00
8.00
PU
PUA-148
S200151004
15.00
25.00
8.00
NBR
SUA-2589
S200151005
15.00
28.00
6.00
NBR
SUB-4642
S200156401
15.00
30.00
8.00
FKM
SUB-4159
S20015L509
15.24
25.40
6.35
PU
PUB-407
S200150802
15.30
23.00
5.30
NBR
SUA-1600
S20015L505
15.87
22.22
3.17
PU
PUA-924
S20015C301
15.87
22.22
3.17
XNBR
SUA-1245
S200156703
15.87
22.22
3.17
FKM
SUA-732
S200158704
15.87
22.22
3.40
PU
PUA-364
S20015U201
15.87
22.22
4.20
FKM
SUA-2511
S200150701
15.87
22.22
4.30
NBR
SUA-2650
S20015L507
15.87
22.22
4.74
PU
PUA-146
S20015L506
15.87
22.29
3.70
PU
PUA-123
S200151002
15.87
23.82
5.50
NBR
SUA-1653
S20015L501
15.87
25.40
6.35
PU
PUB-425
S200151105
15.87
33.32
8.72
NBR
SUB-887
S20016L515
16.00
22.00
4.00
PU
PUA-304
S20016L511
16.00
22.00
4.00
PU
PUA-776
S200165905
16.00
22.00
4.00
PU
PUA-874
S20016U201
16.00
22.00
4.00
FKM
SUA-2489
S20016L504
16.00
22.00
5
PU
PUA-290
S200163401
16.00
22.00
5
EPDM
SUA-1725
S200161009
16.00
22.00
5.00
NBR
SUA-2585
S200168701
16.00
22.00
6.00
PU
PUA-240
S200166704
16.00
22.00
7.0
FKM
SUA-2340
S200161010
16.00
22.00
7.50
NBR
SUA-2586
S20016R301
16.00
22.50
3.50
PU
PUA-569
S20016CG01
16.00
23.00
4.00
PU
PUA-996
S20016L512
16.00
23.00
4.50
PU
PUA-822
S200161111
16.00
23.00
4.50
NBR
SUA-2102
S200161005
16.00
24.00
4.80
NBR
SUA-1769
S20016S401
16.00
24.00
4.90
HNBR
SUA-1979
S20016L505
16.00
24.00
5
PU
PUA-324
S200161107
16.00
24.00
5
NBR
SUA-1383
S20016L507
16.00
24.00
5.50
PU
PUA-379
S20016V301
16.00
24.00
5.50
NBR
SUA-1770
S200161003
16.00
24.00
5.50
NBR
SUA-2361
S200164901
16.00
24.00
5.50
HNBR
SUA-2520
S200161012
16.00
24.00
5.50
NBR
SUA-2687
S20016L502
16.00
24.00
5.6
PU
PUA-107
S200161112
16.00
24.00
5.80
FKM
SUA-1307
S200166403
16.00
24.00
6
FKM
SUA-962
S200161011
16.00
24.00
6.00
NBR
SUA-2587
S200166605
16.00
24.00
6.00
FKM
SUA-2624
S200161109
16.00
25.00
5.30
NBR
SUA-1870
S20016L514
16.00
26.00
6.80
PU
PUB-322
S200161110
16.00
26.00
7
NBR
SUB-3133
S200161004
16.00
26.00
7.5
NBR
SUB-2278
S200161108
16.00
27.00
7
NBR
SUB-2792
S20016S402
16.00
28.00
5.00
HNBR
SUB-3971
S200166603
16.00
32.00
8
FKM
SUB-3566
S20017L501
17.00
22.00
5
PU
PUA-112
S200171102
17.00
25.00
5.5
NBR
SUA-1378
S200176601
17.00
32.00
10
FKM
SUB-3567
S200176501
17.14
28.94
8
FKM
SUB-3577
S200176701
17.15
25.40
4.90
FKM
SUB-2977
S20018L509
18.00
22.00
2.50
PU
PUA-863
S200181108
18.00
22.00
3
NBR
SUA-1833
S200181110
18.00
23.00
5.00
NBR
SUA-2293
S200181113
18.00
24.00
4.70
NBR
SUA-706
S200186705
18.00
24.00
7.00
FKM
SUA-2686
S200181112
18.00
25.00
4.0
NBR
SUA-2407
S20018L510
18.00
25.00
4.50
PU
PUA-990
S200181004
18.00
25.00
4.50
NBR
SUA-2481
S200181107
18.00
25.00
5.50
NBR
SUA-1731
S20018L502
18.00
26.00
5
PU
PUB-613
S200181111
18.00
26.00
5.00
NBR
SUB-3842
S200188501
18.00
26.00
5.5
FKM/FABRIC
SUB-1342
S200188601
18.00
26.00
5.50
FKM/FABRIC
SUB-4692
S20018L508
18.00
26.00
5.70
PU
PUB-1180
S20018L511
18.00
26.00
8.00
PU
PUB-238
S200181109
18.00
27.00
5.50
NBR
SUB-3374
S200188602
18.00
28.00
6.00
FKM/FABRIC
SUB-4691
S20018L501
18.00
28.00
7.3
PU
PUB-513
S200186703
18.00
28.00
8
FKM
SUB-2322
S20018S401
18.00
30.00
5.00
HNBR
SUB-3972
S200186603
18.00
32.00
8.00
FKM
SUB-4070
S200181003
18.90
32.00
8
NBR
SUB-3408
S20019L511
19.00
25.00
3.25
PU
PUA-298
S200191002
19.00
25.30
6.50
NBR
SUB-1973
S20019L509
19.00
25.40
3.70
PU
PUB-156
S20019L507
19.00
26.00
3.40
PU
PUB-1135
S20019L507
19.00
26.00
3.50
PU
PUB-1716
S20019L506
19.00
31.50
9
PU
PUB-964
S20019L508
19.04
25.43
3.40
PU
PUB-2177
S200198701
19.05
25.40
3.17
PU
PUB-696
S200196701
19.05
25.40
3.17
FKM
SUB-2883
S200191106
19.05
25.40
3.17
NBR
SUB-4489
S20019L510
19.05
25.40
6.35
PU
PUB-231
S200191006
19.30
32.00
7.40
NBR
SUB-4246
S20019R302
19.45
25.79
3.40
PU
PUB-1207
S200191007
19.50
28.00
6.00
NBR
SUB-1498
S200196603
19.75
23.75
4.25
FKM
SUA-1143
S200196604
19.80
28.00
5.60
FKM
SUB-4767
S200206704
20.00
25.00
4.00
FKM
SUA-1192
S20020L506
20.00
26.00
3.40
PU
PUB-1130
S20020L515
20.00
26.00
4
PU
PUB-2134
S200206706
20.00
26.00
4
FKM
SUB-3134
S20020Y502
20.00
26.00
4.00
PU
PUB-221
S200201108
20.00
26.00
4.8
NBR
SUB-1922
S200206608
20.00
26.00
4.80
FKM
SUB-3568
S20020L502
20.00
26.00
5
PU
PUB-422
S200201004
20.00
26.00
5
NBR
SUB-2139
S20020L508
20.00
26.00
5.50
PU
PUB-1231
S200206611
20.00
26.00
5.50
FKM
SUB-3911
S200206708
20.00
26.00
7.00
FKM
SUB-4614
S20020L517
20.00
27.00
4.00
PU
PUB-240
S20020R305
20.00
27.00
5
PU
PUA-567
S20020L513
20.00
27.00
5.00
PU
PUB-274
S20020L514
20.00
27.50
2.90
NBR
PUB-1780
S200201111
20.00
27.80
5.6
NBR
SUB-2260
S20020L522
20.00
28.00
10.00
PU
PUB-657
S20020L401
20.00
28.00
5
PU
PUB-862
S200206401
20.00
28.00
5
FKM
SUB-1829
S200201113
20.00
28.00
5
NBR
SUB-2791
S200201008
20.00
28.00
5.40
NBR
SUB-3265
S20020L509
20.00
28.00
5.50
PU
PUB-1287
S200201010
20.00
28.00
5.50
NBR
SUB-1242
S200206610
20.00
28.00
5.50
FKM
SUB-2163
S200201115
20.00
28.00
5.50
NBR
SUB-3040
S200203401
20.00
28.00
5.50
EPDM
SUB-3384
S200201110
20.00
28.00
5.6
NBR
SUB-2088
S200201013
20.00
28.00
6.00
NBR
SUB-1578
S200200902
20.00
28.00
6.00
NBR
SUB-4490
S20020R301
20.00
29.00
7.40
PU
PUB-1186
S200201112
20.00
30.00
6.5
NBR
SUB-2264
S200201011
20.00
30.00
7.00
NBR
SUB-1499
S20020L518
20.00
30.00
7.30
PU
PUB-243
S200201012
20.00
30.00
8.00
NBR
SUB-1538
S20020L510
20.00
31.00
3.60
PU
PUB-1326
S20020L503
20.00
31.00
6
PU
PUB-528
S200206707
20.00
32.00
7
FKM
SUB-3604
S200206601
20.00
32.00
9.80
FKM
SUB-1562
S200201114
20.00
32.50
6
NBR
SUB-3033
S200206607
20.00
33.00
9.75
FKM
SUB-3334
S200206613
20.00
36.00
8.00
FKM
SUB-1439
S200207201
20.00
38.00
5.40
FKM/FABRIC
SUB-4170
S200206609
20.00
42.00
10
FKM
SUB-3789
S200201009
20.60
27.00
6
NBR
SUB-3692
S20020R302
20.63
26.98
5
PU
PUB-1206
S200208701
20.63
27.38
5
PU
PUB-1137
S200201201
20.63
28.58
4.76
NBR
SUB-4712
S200216602
21.00
30.00
6
FKM
SUB-2645
S200226702
22.00
28.00
4.50
FKM
SUB-4296
S20022L515
22.00
28.00
6
PU
PUB-2109
S20022L510
22.00
28.00
8
PU
PUB-1296
S200221006
22.00
28.00
8.00
NBR
SUB-1238
S200226610
22.00
28.00
9
FKM
SUB-3602
S200221108
22.00
29.00
5.00
NBR
SUB-4646
S200226604
22.00
30.00
5
FKM
SUB-2041
S20022L508
22.00
30.00
5.50
PU
PUB-1161
S200221107
22.00
30.00
5.50
NBR
SUB-3236
S200226611
22.00
30.00
5.50
FKM
SUB-3912
S200223401
22.00
30.00
5.7
EPDM
SUB-2965
S200226608
22.00
32.00
10
FKM
SUB-3316
S200221005
22.00
32.00
5.00
NBR
SUB-1464
S200222001
22.00
32.00
6.50
NEOPRENE
SUB-3243
S200221008
22.00
32.00
8.00
NBR
SUB-1478
S20022L516
22.00
32.00
9.00
PU
PUB-2166
S200221007
22.00
35.00
7.00
NBR
SUB-1436
S200226609
22.00
40.00
10
FKM
SUB-3537
S20022L514
22.22
28.57
4.76
PU
PUB-1943
S20022L513
22.22
28.57
4.90
PU
PUB-874
S20022L503
22.22
28.57
5
PU
PUB-690
S20022L512
22.22
31.75
4.76
PU
PUB-1401
S200221003
22.22
31.75
4.76
NBR
SUB-3965
S20022L511
22.40
30.00
5
PU
PUB-1333
S200226607
22.40
30.00
5
FKM
SUB-3188
S20022L509
22.40
30.40
5
PU
PUB-1255
S200226606
22.50
28.50
4.2
FKM
SUB-2310
S200221004
22.50
30.00
5.00
NBR
SUB-347
S20023L501
23.00
32.00
5.00
PU
PUB-675
S200236601
23.50
33.50
5.25
FKM
SUB-4684
S200231001
23.80
36.20
5.50
NBR
SUB-4505
S200241001
24.00
30.00
7.00
NBR
SUB-4430
S200241103
24.00
32.00
5.80
NBR
SUB-3576
S20024R301
24.00
33.00
5
PU
PUA-568
S20024L503
24.00
40.00
10
PU
PUB-1947
S200241002
24.50
31.00
7.00
NBR
SUB-2135
S200241104
24.50
33.00
5.00
NBR
SUB-1370
S200241101
24.80
35.80
7
NBR
SUB-2639
S200256608
25.00
29.10
5.50
FKM
SUB-3104
S20025L513
25.00
31.00
5
PU
PUB-1573
S200256612
25.00
31.00
5.50
FKM
SUB-3788
S20025L523
25.00
32.00
3.25
PU
PUB-355
S20025L517
25.00
32.00
3.50
PU
PUB-1886
S200256602
25.00
32.00
4
FKM
SUB-2042
S20025Y503
25.00
32.00
5.00
PU
PUB-576
S20025L503
25.00
33.00
5
PU
PUB-345
S200256603
25.00
33.00
5
FKM
SUB-2558
S200251115
25.00
33.00
5
NBR
SUB-3647
S200255909
25.00
33.00
5.00
PU
PUB-1884
S200256704
25.00
33.00
5.50
FKM
SUB-1120
S200256604
25.00
33.00
5.6
FKM
SUB-2567
S20025L501
25.00
33.00
5.7
PU
PUB-426
S200256702
25.00
33.00
6
FKM
SUB-1875
S200251116
25.00
33.00
7.00
NBR
SUB-3705
S200256607
25.00
33.00
7.50
FKM
SUB-2832
S200256611
25.00
34.00
4.80
FKM
SUB-3787
S20025L519
25.00
34.00
5.70
PU
PUB-171
S200256713
25.00
34.00
8.00
FKM
SUB-4637
S200251016
25.00
34.50
6
NBR
SUB-3086
S200256709
25.00
35.00
10.00
FKM
SUB-4165
S200256605
25.00
35.00
4.50
FKM
SUB-2616
S200256708
25.00
35.00
5
FKM
SUB-3449
S200250501
25.00
35.00
5/6
NBR
SUB-2939
S200251015
25.00
35.00
6
NBR
SUB-2984
S200256614
25.00
35.00
6.00
FKM
SUB-4231
S200251011
25.00
35.00
7
NBR
SUB-1706
S200250803
25.00
35.00
7
NBR
SUB-2564
S200256613
25.00
35.00
7.00
FKM
SUB-3872
S200250901
25.00
35.00
7.3
NBR
SUB-1612
S200251013
25.00
35.00
7.30
NBR
SUB-2583
S200251021
25.00
35.00
7.80
NBR
SUB-4535
S200251005
25.00
35.00
8
NBR
SUB-2439
S200256705
25.00
35.00
8
FKM
SUB-2855
S200251018
25.00
35.50
5.80
NBR
SUB-3650
S200251019
25.00
37.00
6
NBR
SUB-3669
S200256615
25.00
38.00
6.00
FKM
SUB-4541
S20025L521
25.00
40.00
10.00
PU
PUB-237
S200251022
25.00
50.00
12.00
NBR
SUB-1437
S20025L511
25.35
32.00
3.40
PU
PUB-1131
S20025L507
25.40
31.75
3.17
PU
PUB-691
S20025L508
25.40
31.75
3.5
PU
PUB-687
S200258702
25.40
31.75
3.52
PU
PUB-699
S200251118
25.40
31.75
4.26
NBR
SUB-4310
S20025S401
25.40
31.75
5.55
HNBR
SUB-1391
S200256712
25.40
31.75
6.99
FKM
SUB-4478
S20025R304
25.40
32.00
3.50
PU
PUA-571
S200256606
25.40
32.25
3.24
FKM
SUB-2827
S20025L516
25.40
32.25
3.70
PU
PUB-875
S20025R306
25.40
32.70
6.70
PU
PUB-1313
S20025L512
25.40
33.32
5.80
PU
PUB-1200
S200251112
25.40
33.32
6.35
NBR
SUB-3341
S200256714
25.40
33.33
5.90
FKM
SUB-228
S20025R305
25.40
34.92
6.35
PU
PUB-1283
S20025L515
25.40
34.92
6.60
PU
PUB-1714
S20025L522
25.40
35.00
6.00
PU
PUB-347
S200256610
25.40
35.00
7
FKM
SUB-3670
S200258705
25.40
35.71
6.80
PU
PUB-1285
S200250801
25.40
38.10
6.35
NBR
SUB-1535
S200251014
25.40
38.10
6.35
NBR
SUB-2629
S20025L520
25.40
38.10
7.92
PU
PUB-2186
S200251020
25.40
50.80
12.70
NBR
SUC-2667
S200250701
25.50
35.50
5.70
NBR
SUB-3379
S200251010
25.60
38.00
6.00
NBR
SUB-2479
S20026L504
26.00
32.00
4
PU
PUB-1435
S20026L506
26.00
32.50
3.50
PU
PUB-740
S20026L503
26.00
33.00
3.40
PU
PUB-1138
S20026L505
26.00
33.00
5.00
PU
PUB-648
S200261102
26.00
36.00
6.20
NBR
SUB-3763
S200261001
26.70
75.00
40
NBR
SUC-1374
S200276701
27.00
36.50
6.30
FKM
SUB-3303
S200270801
27.00
39.00
6.00
NBR
SUB-1373
S200271001
27.50
35.00
5.00
NBR
SUB-1438
S200271002
27.50
35.00
6.00
NBR
SUB-1404
S20028L515
28.00
33.00
3.10
PU
PUB-2184
S20028L510
28.00
34.00
8
PU
PUB-1319
S200281109
28.00
35.00
5.50
NBR
SUB-3518
S20028L504
28.00
35.50
5
PU
PUB-115
S200286602
28.00
35.50
5
FKM
SUB-2032
S200281110
28.00
35.50
5.10
NBR
SUB-3764
S20028L507
28.00
35.50
5.20
PU
PUB-1175
S200281003
28.00
35.50
5.20
NBR
SUB-1367
S20028L506
28.00
36.00
5
PU
PUB-940
S20028L509
28.00
36.00
5.50
PU
PUB-1260
S200286607
28.00
36.00
5.50
FKM
SUB-3582
S20028L512
28.00
36.00
5.70
PU
PUB-1687
S200286608
28.00
36.00
5.70
FKM
SUB-3975
S200286702
28.00
36.00
6.3
FKM
SUB-2001
S20028L514
28.00
38.00
10.00
PU
PUB-2182
S20028Y501
28.00
38.00
6.50
PU
PUB-572
S200286601
28.00
38.00
7
FKM
SUB-1698
S20028BF01
28.00
38.00
7.00
SILICON
SUB-192
S200281102
28.00
38.00
7.00
NBR
SUB-4024
S200286706
28.00
38.00
7.30
FKM
SUB-884
S20028L511
28.00
38.00
8
PU
PUB-1563
S200281002
28.17
39.29
4.00
NBR
SUB-4814
S20028L513
28.57
38.10
6.35
PU
PUB-1942
S20028L505
28.57
38.10
6.6
PU
PUB-692
S20029Y501
29.00
36.00
4.50
PU
PUB-256
S200290701
29.36
44.45
12.00
NBR
SUB-4728
S200306601
30.00
37.30
3
FKM
SUB-1487
S200301109
30.00
38.00
10
NBR
SUB-3131
S200306706
30.00
38.00
5.70
FKM
SUB-1945
S200306606
30.00
38.00
6.20
FKM
SUB-2586
S200300701
30.00
38.00
7
NBR
SUB-2091
S20030CG01
30.00
38.00
8.20
PU
PUB-218
S20030L509
30.00
38.00
9
PU
PUB-1480
S200306704
30.00
40.00
10
FKM
SUB-2802
S200301111
30.00
40.00
5.00
NBR
SUB-3702
S20030L511
30.00
40.00
6
PU
PUB-1660
S200306605
30.00
40.00
6
FKM
SUB-664
S200301101
30.00
40.00
6.00
NBR
SUB-3704
S20030L507
30.00
40.00
6.50
PU
PUB-1132
S200306608
30.00
40.00
6.50
FKM
SUB-4344
S200306604
30.00
40.00
7.00
FKM
SUB-2315
S200301120
30.00
40.00
7.00
NBR
SUB-3703
S20030L508
30.00
40.00
7.20
PU
PUB-1393
S200306609
30.00
40.00
7.20
FKM
SUB-2101
S200306703
30.00
40.00
7.50
FKM
SUB-3458
S200301004
30.00
40.00
8.00
NBR
SUB-1851
S20030L510
30.00
43.00
10
PU
PUB-1596
S200306610
30.00
43.00
10.00
FKM
SUB-4589
S20030L501
30.00
45.00
10
PU
PUB-431
S200303501
30.00
45.00
10
EPDM
SUB-3231
S200306705
30.00
45.00
10
FKM
SUB-3375
S200301110
30.00
45.00
10
NBR
SUB-3376
S200308702
30.00
45.00
6
PU
PUA-524
1
2
3
For customised items please
Click here
Login
