Profile : Piston Seals


Spareage : P38

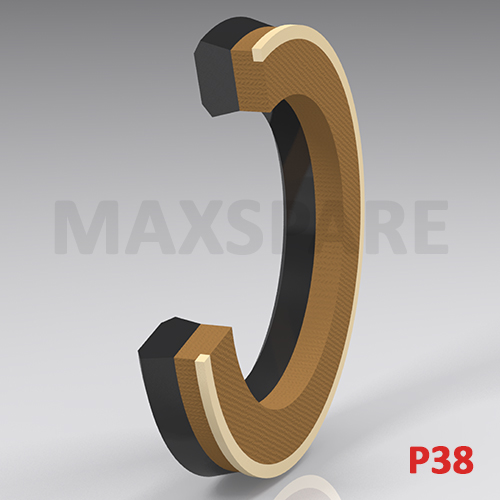

P38 Assembly

Details :
P38 single acting fluid seal used in piston applications. It comprises of a rubberized fabric which is bonded to a nitrile energizer and an anti-extrusion ring in thermoplastic elastomer.
MATERIAL
Sealing Ring : Nitrile Rubber / Fabric 75/80 Shore A.
Back Up ring : POM / Nylon
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 400 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 0.8 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, hydraulic oils, water and air.
APPLICATION
  • Medium to heavy duty hydraulic cylinders.
  • Valves spindles.
  • Mining Equipments, Presses & Standard Cylinders.
FEATURES
  • Small section.
  • Easy to assemble.
  • Well proven design.
  • Reinforced fabric have protect seal from extrusion.
  • Good sealing even at low pressure.

Manufactured by: Max Spare Limited
Product ID: /details?id=290&name=p38


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P38040830440.0050.009NBR/FABRIC     PRV-849
P38057830157.0076.0013NBR/FABRIC     PRV-855
P38057830257.0076.0014NBR/FABRIC     PRV-988
P38060830360.0075.0011NBR/FABRIC     PRV-854
P38060830560.0075.0012NBR/FABRIC     PRV-978
P38060830460.0080.0011NBR/FABRIC     PRV-857
P38060830660.0080.0012NBR/FABRIC     PRV-980
P38060830760.0080.0013.50NBR/FABRIC     PRV-1279
P38060830160.0080.0014NBR/FABRIC     PRV-673
P38070830370.0085.0011NBR/FABRIC     PRV-859
P38070830570.0085.0012NBR/FABRIC     PRV-982
P38070830170.0090.0011NBR/FABRIC     PRV-674
P38070830470.0090.0012NBR/FABRIC     PRV-981
P38070830270.0090.0014NBR/FABRIC     PRV-675
P38075830175.00100.0014NBR/FABRIC     PRV-860
P38075830275.00100.0017NBR/FABRIC     PRV-861
P38076830176.2092.079.5NBR/FABRIC     PRV-676
P38078850178.0090.0012FKM/FABRIC     PRV-722
P38080830280.00100.0011.7NBR/FABRIC     PRV-838
P38082850182.50101.609.3FKM/FABRIC     PRV-1048
P38085830385.00100.0012NBR/FABRIC     PRV-848
P38090830190.00110.0011.40NBR/FABRIC     PRV-564
P381808501180.00200.0014FKM/FABRIC     PRV-436
P382808501280.00300.0014FKM/FABRIC     PRV-1107




For customised items please Click here
