Max Spare : P29

Profile : Piston Seals

Details :

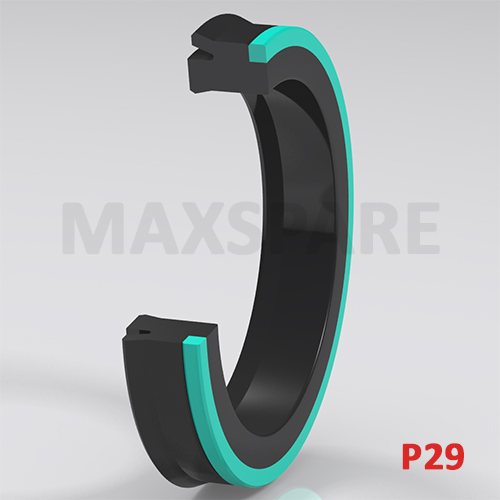

P29 is an asymmetrical single acting piston seal for medium loads preferably for spare requirement. The seal comes with an anti-extrusion ring which helps to prevent extrusion of the seal and to allow greater clearances and higher pressures.

MATERIAL

U Ring	:	Nitrile Rubber 80 Shore A
Backup Ring	:	POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	400 Bar (PU)
	:	150 Bar (NBR)
Speed	:	1.0 m/s (PU)
	:	0.5 m/s (NBR)

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Light to medium duty hydraulic cylinders.
Also suitable for double acting cylinders.
Can also be used in an equivalent of SUA piston seal.

FEATURES

Good purpose seal.
Good overall performance.
Very good static and dynamic tightness.
Robust design.
Any size up to 3000 mm dia. available on request.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P29025L501	25.00	35.00	7	PU	PUB-714
P29030L501	30.00	38.00	8.80	PU	PUB-1418
P29030L502	30.00	45.00	9	PU	PUB-1816
P290341001 (Stock Item)	34.00	50.00	12.00	NBR+ACT-1	CS-539
P290356602	35.00	45.00	10	FKM	SUB-2613
P29035U201	35.00	45.00	8.20	FKM	SUB-4860
P29035P201	35.00	45.00	8.30	PU	PUB-546
P29035V201	35.00	45.00	8.50	NBR	SUB-4005
P290351002	35.00	58.00	15.50	NBR	SUC-2177
P290351003 (Stock Item)	35.00	60.00	15.00	NBR+ACT-1	CS-533
P290350801	35.00	60.00	15.50	NBR+ACT-1	CS-3663
P290351001	35.30	44.00	8.80	NYLON	PFB-1058
P290351001	35.30	44.00	8.80	NBR	SUB-2932
P290361001 (Stock Item)	36.00	60.00	15.50	NBR+ACT-1	CS-551
P290406701	40.00	50.00	6.30	FKM/BFT	SUB-1558
P29040L501	40.00	60.00	11.40	PU	PUC-1152
P290410901	41.27	60.32	10.31	NBR	SUC-3143
P29045P201	45.00	60.00	10.00	PU	PUC-433
P290451102	45.00	60.00	11.00	NBR	SUC-2970
P290453401	45.00	63.00	12.00	EPDM	SUC-3149
P290451103	45.00	63.00	12.00	NBR	SUC-803
P290451101	45.00	70.00	15.50	NBR	SUC-1871
P290451001	45.00	70.00	16	NBR	SUC-2075
P290451003 (Stock Item)	45.00	70.00	17	NBR+NY	CS-3642
P29047L501	47.60	55.05	3.65	PU	PUC-1371
P290481001	48.00	57.00	8.60	NYLON	PFB-1059
P290481001	48.00	57.00	8.60	NBR	SUC-2022
P290488301	48.00	63.00	8.50	NBR/FABRIC	CS-544
P290558302	55.00	75.00	11.50	NBR/FABRIC	CS-798
P290571101	57.15	76.20	9.39	NBR	SUD-2383
P29057U101	57.50	70.00	8.43	FKM	SUC-2777
P290606601	60.00	75.00	10	FKM	SUC-2036
P290606602	60.00	75.00	12.00	FKM/BFT	SUC-3239
P290606704	60.00	80.00	12	FKM	SUD-1313
P29060L401	60.00	80.00	12.2	PU	PUD-493
P290606701	60.00	80.00	12.5	FKM	SUD-1005
P29065L503	65.00	75.00	11.40	PU	PUC-1151
P290656701	65.00	80.00	12	FKM	SUD-1943
P29065L501	65.00	80.00	9.30	PU	CS-1633
P290651102 (Stock Item)	65.00	90.00	19.70	NBR+ACT-1	CS-623
P29066U901	66.67	79.37	9.32	NBR	SUD-2431
P290686701	68.00	80.00	14.00	FKM/PTFE	SUD-2325
P290708701	70.00	90.00	12	PU	CS-2192
P290756701	75.00	90.00	9.30	FKM	SUD-2200
P290806702	80.00	90.00	6.00	FKM/BFT	SUD-902
P290808301	80.00	100.00	12	NBR/FABRIC	SUD-1562
P290806601	80.00	100.00	12.00	FKM	SUD-2327
P290801102	80.00	100.00	15	NBR	SUD-1760
P290801101	80.00	100.00	15	NBR	SUD-927
P290821001	82.30	101.60	11	NBR	SUE-1251
P29082R401	82.55	95.25	9.32	NBR	SUD-826
P290856602	85.00	100.00	10.50	FKM	SUD-779
P290851001	85.00	100.00	12	NBR	SUD-868
P290856601	85.00	100.00	8.50	FKM/BFT	SUD-2505
P290886601	88.30	100.00	15.30	FKM/PTFE	SUD-188
P290880901	88.90	107.95	10.31	NBR	CS-3333
P29090L501	90.00	110.00	12.20	PU	PUE-660
P291006602	100.00	110.00	7.30	FKM	SUE-608
P291006601	100.00	125.00	15.20	FKM	SUE-1057
P291001001	100.00	135.00	22.00	NBR	SUF-1160
P29101U901	101.60	114.30	9.52	NBR	SUE-552
P29104R401	104.77	117.47	9.32	NBR	SUE-1623
P291056601	105.00	125.00	11.6	FKM	SUE-609
P291108701	110.00	130.00	12.20	PU	PUF-501
P291101001	110.00	130.00	15	NBR	CS-2214
P291136601	113.00	125.00	15.00	FKM/PTFE	SUE-145
P29115L501	115.00	140.00	15.20	PU	PUF-315
P291206702	120.00	140.00	11.80	FKM	SUF-1155
P291206701	120.00	140.00	12.2	FKM	SUF-581
P291271001	127.00	152.40	19.10	NBR	SUG-757
P29130L501	130.00	160.00	18.60	PU	PUG-173
P29130L503	130.00	160.00	19	PU	PUG-288
P291356601	135.00	160.00	14.50	FKM	SUG-167
P291358302	135.00	160.00	14.50	NBR/FABRIC	SUG-603
P291358301	135.00	160.00	18	NBR/FABRIC	SUG-333
P291406701	140.00	160.00	11.50	FKM	SUG-170
P291408701	140.00	160.00	12.20	PU	PUG-407
P29150L501	150.00	170.00	12	PU	PUG-406
P291506602	150.00	180.00	18.50	FKM	SUH-552
P29160L501	160.00	180.00	12.20	PU	PUH-261
P291958701	195.00	225.00	18.60	PU	PUJ-227
P29195L501	195.00	225.00	19	PU	PUJ-173
P292006701	200.00	220.00	11	FKM	SUJ-368
P29200L502	200.00	220.00	16	PU	PUJ-226
P29210L502	210.00	240.00	18.60	PU+ACT-1	PUK-135
P29210L501	210.00	240.00	19	PU	CS-2185
P292206701	220.00	250.00	19	FKM	SUK-271
P292258701	225.00	250.00	15.70	PU	PUK-170
P292251001	225.00	250.00	15.70	NBR	SUK-331
P29225L501	225.00	250.00	16	PU	PUK-182
P292501101	250.00	280.00	17.00	NBR	SUM-598
P29250L501	250.00	280.00	18.60	PU	PUM-224
P292706401	270.00	300.00	18	FKM	SUM-865
P29270CF01	270.00	300.00	18.00	PU	PUM-447
P29270L501	270.00	300.00	18.60	PU	PUM-105
P292708701	270.00	300.00	18.60	PU+ACT-1	PUM-110
P292956701	295.00	320.00	17.00	FKM/PTFE	SUM-923
P293456701	345.00	360.00	10.00	FKM	SUM-348
P293606601	360.00	400.00	27.50	FKM	SUM-783
P293606701	360.00	400.00	28	FKM/BFT	SUM-792
P293811001	381.00	406.40	19.70	NBR	SUVG-642
P294708701	470.00	500.00	25	PU	PUM-302
